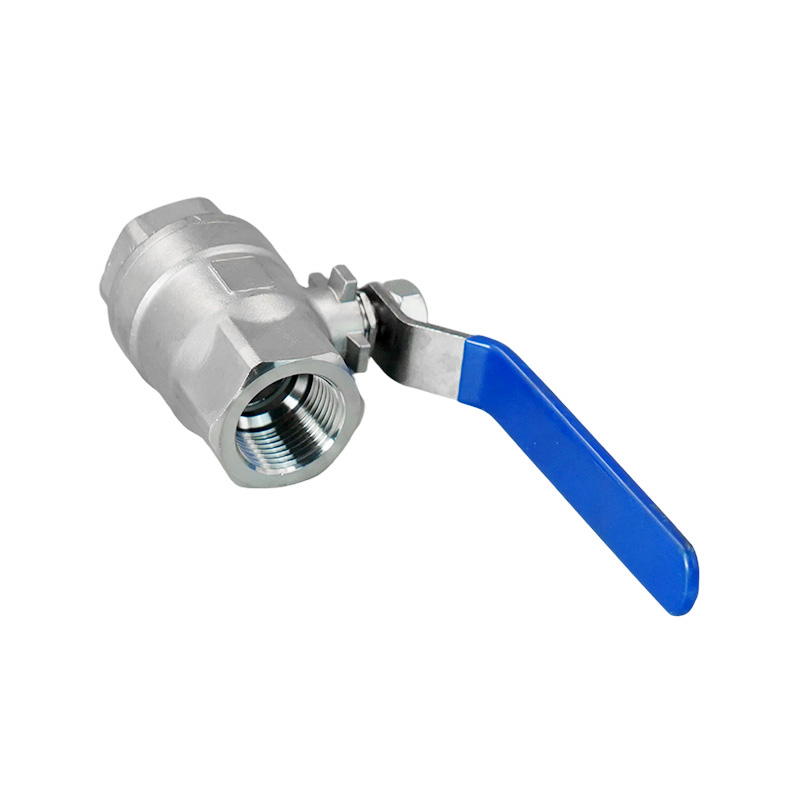

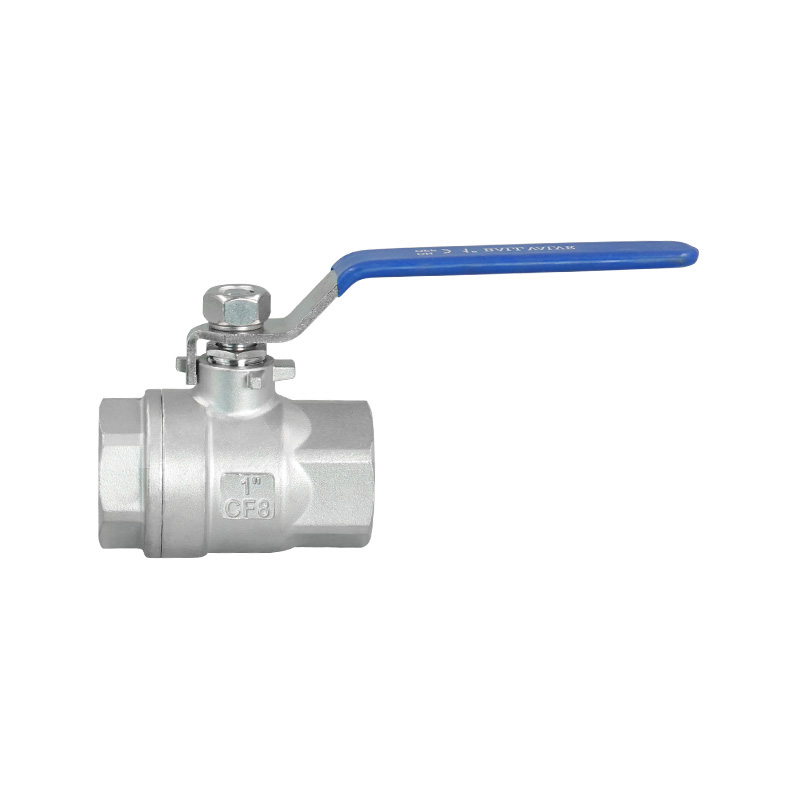

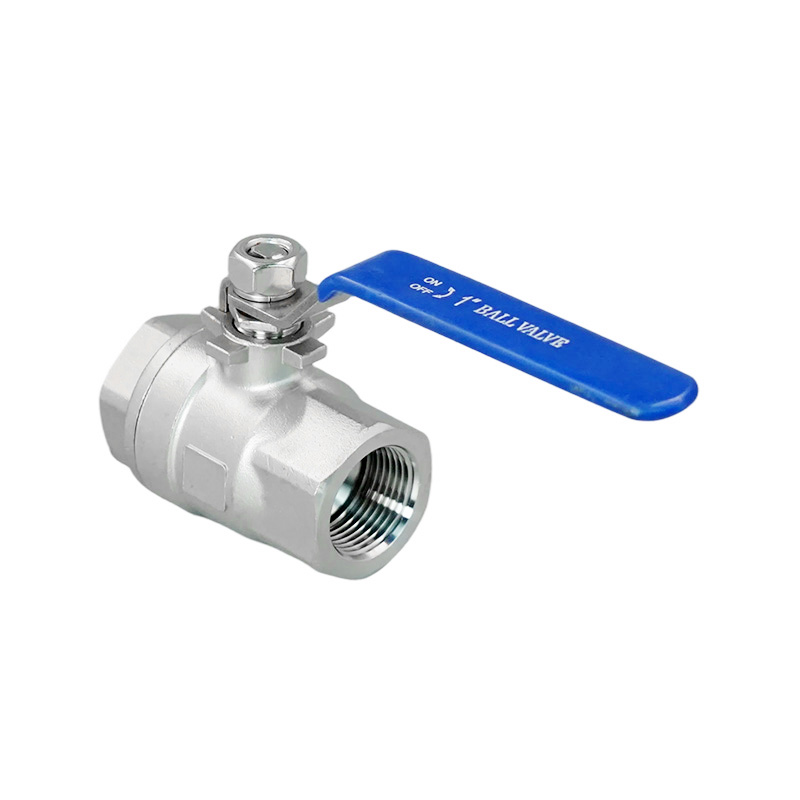

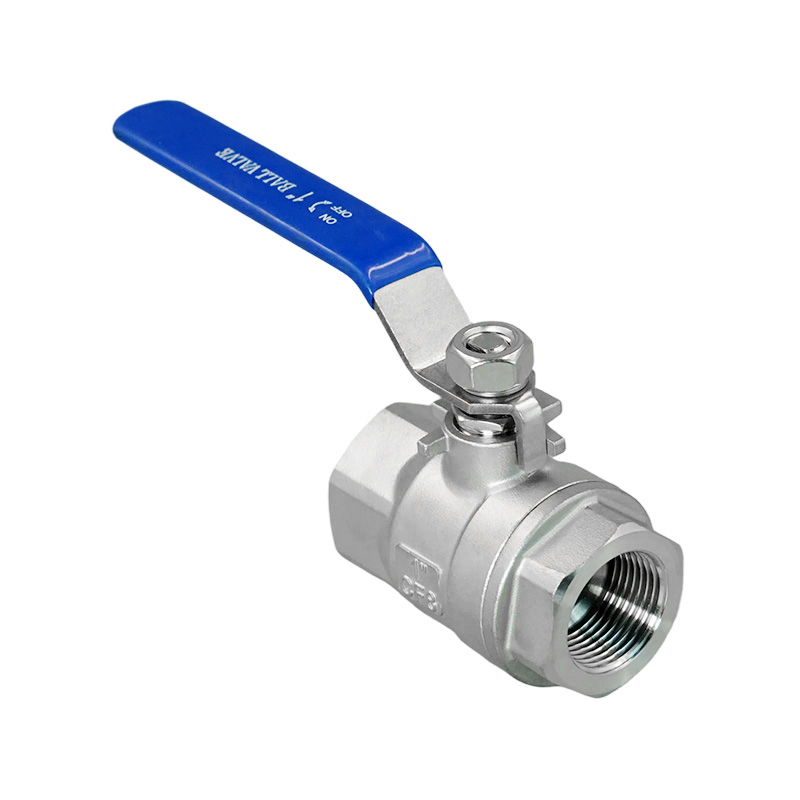

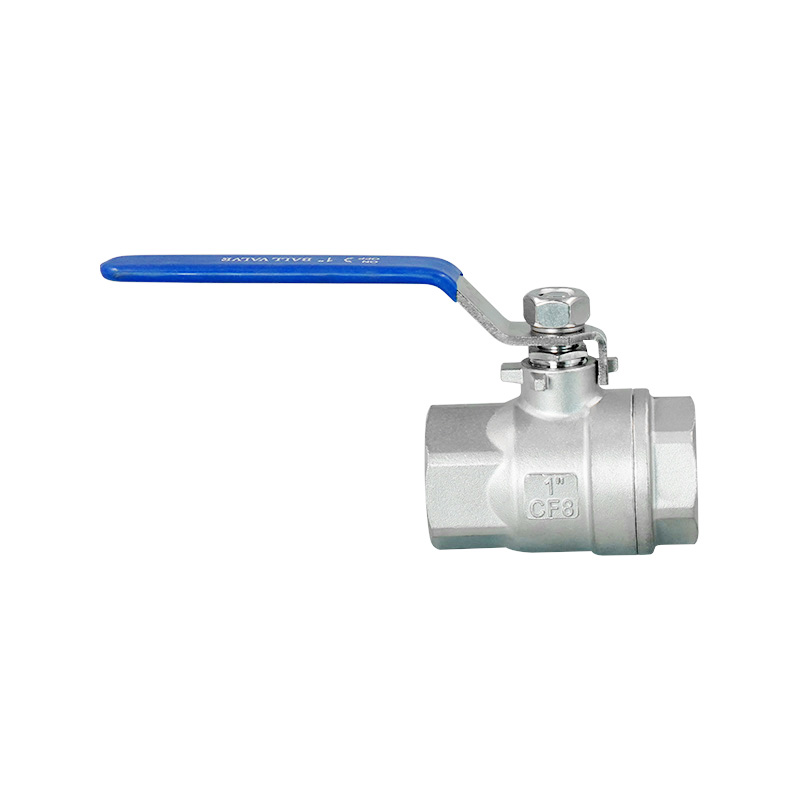

Two Pieces Manual Female Threaded Ball Valve PN64

Rated at a maximum working pressure of 6.4 MPa (64 bar), this two-piece threaded ball valve is ideal for high-pressure industrial applications.
It features standard threaded connections and operates within a temperature range of -20 ℃ to 120 ℃ (up to 250 ℃ under specific conditions), making it suitable for water, oil, gas, and other general media.

PREV：Two Pieces High Platform Female Threaded Ball Valve NEXT：Three Pieces Manual Female Threaded Ball Valve

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body
Blow-out Proof Stem
Full port design
Lockable handle available as an option
Thread standard:
NPT, BSP, BSPT, DIN259/2999, Rc, Rp
Working pressure: 6.4MPa
Applicable temperature:
-20°C~120°C(250°C)
Applicable Medium: Water, oil, gas, etc

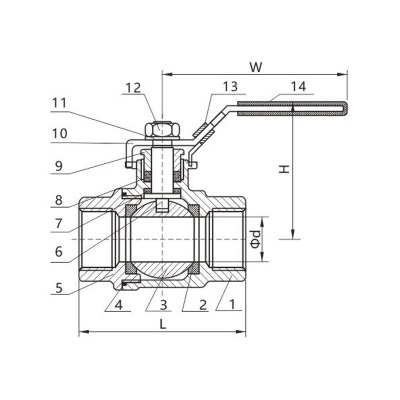

Main parts and materials

ITEM	PART	MAIN MATERIAL

1	Body	CF8 CF3M
2	Valve Seat	PTFE RPTFE

3	Ball	304 316L



4	Sealing Ring	PTFE RPTFE

5	Bonnet	CF8 CF3M


6	Stem	304 316L

7	Thrust Washer	PTFE RPTFE

8	Stem Packing	PTFE RPTFE


9	Gland Nut	304

10	Handle	201 304


11	Spring Washer	304

12	Nut	304


13	Locking Device (Optional)	201 304


14	Handle Cover	Plastic

Main dimensions

SIZE	Φd	L	H	W	Weight(KG)
1/4"	10	55	43	95	0.215
3/8"	12	55	43	95	0.22

1/2"	15	65	54	115	0.365

3/4"	20	75	64	125	0.56

1"	25	86	70	145	0.88

1-1/4"	32	100	85	162	1.41

1-1/2"	38	108	96	175	1.98
2"	49	129	110	185	3.36

The dimensions above are for reference only.
