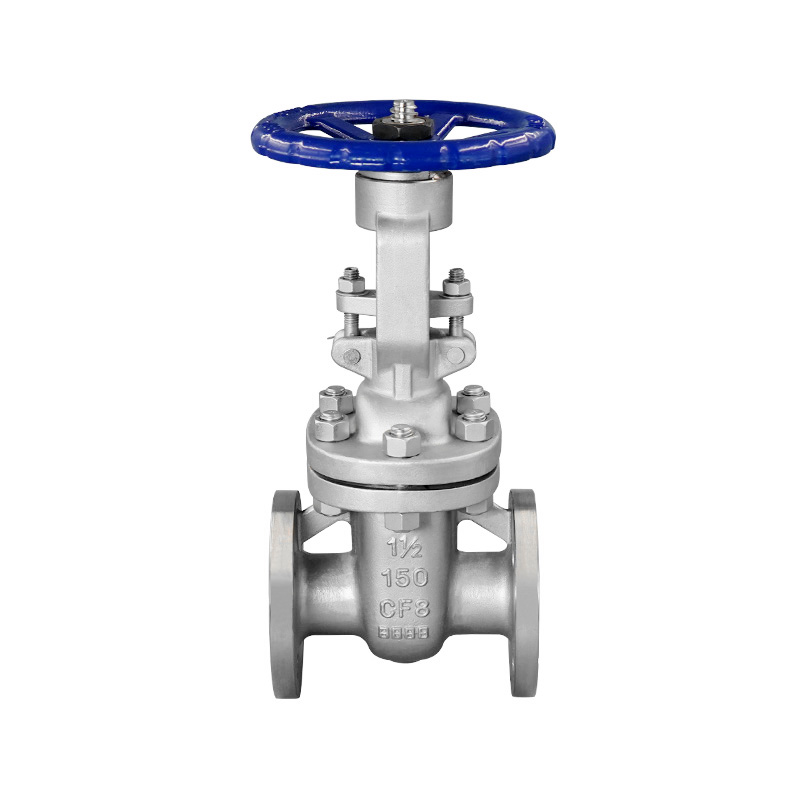

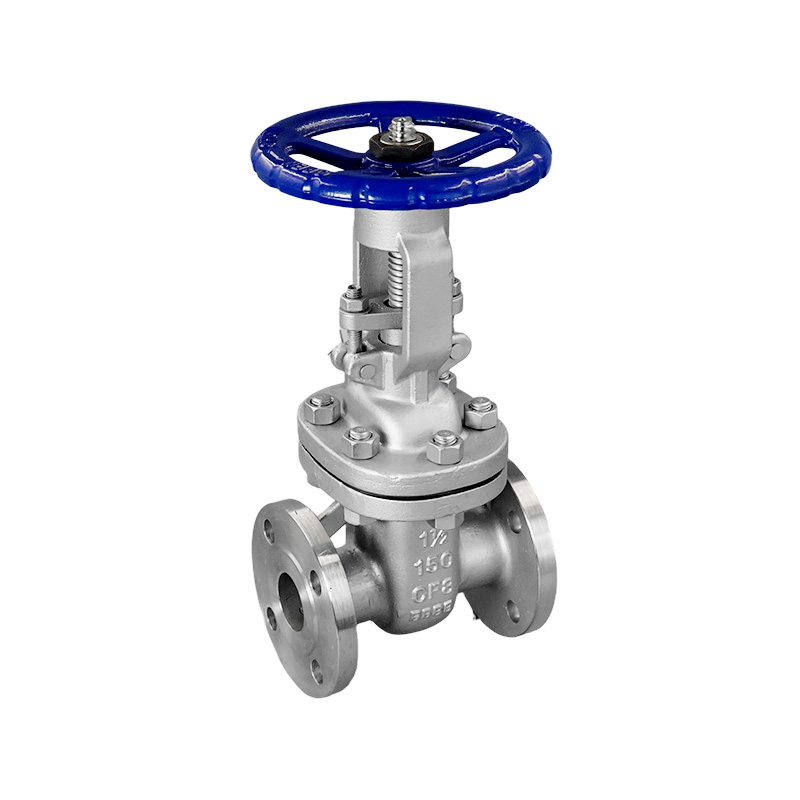

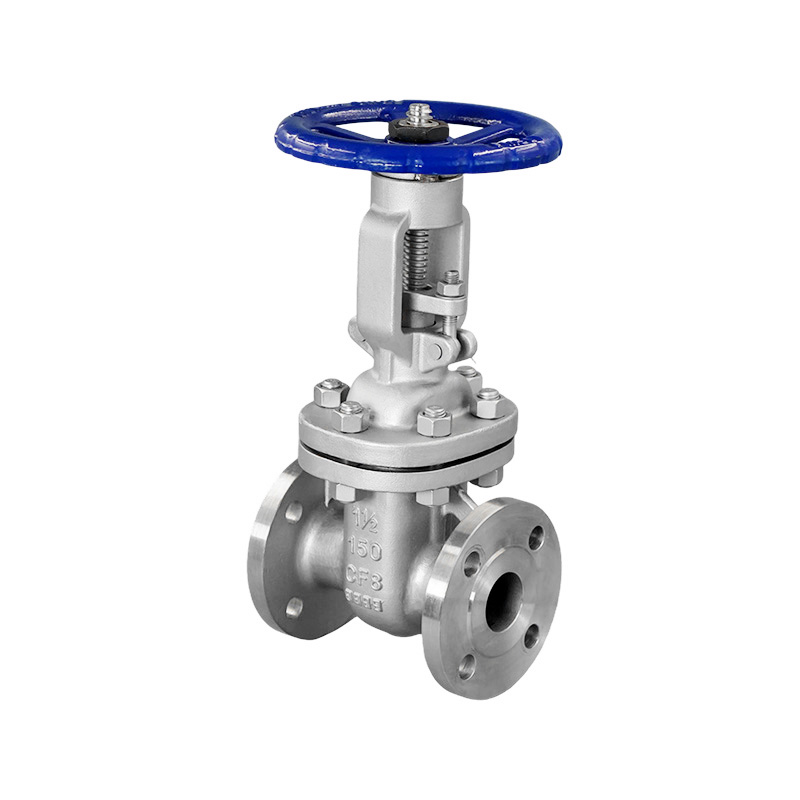

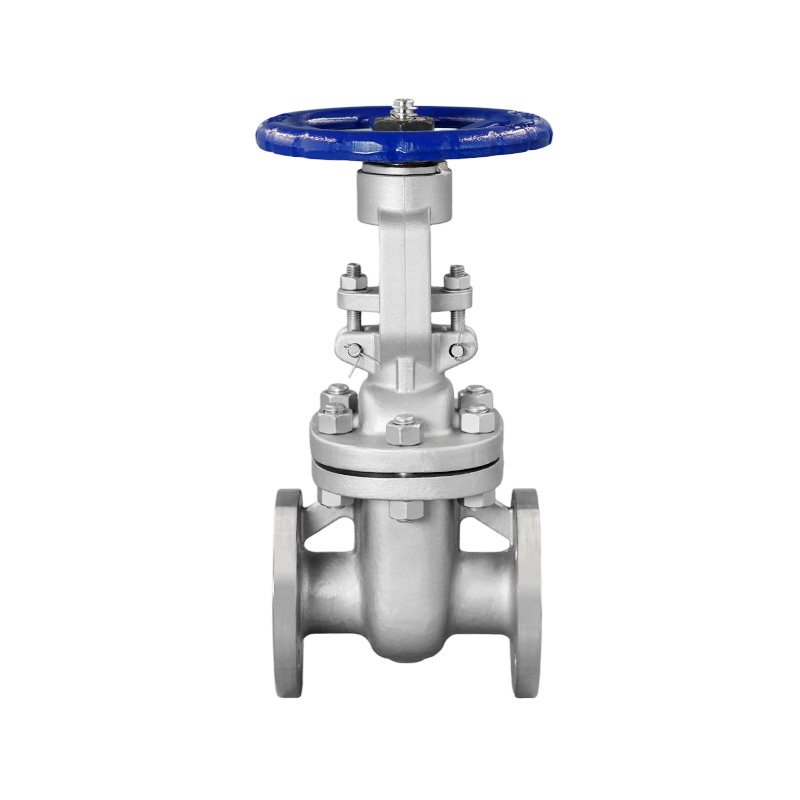

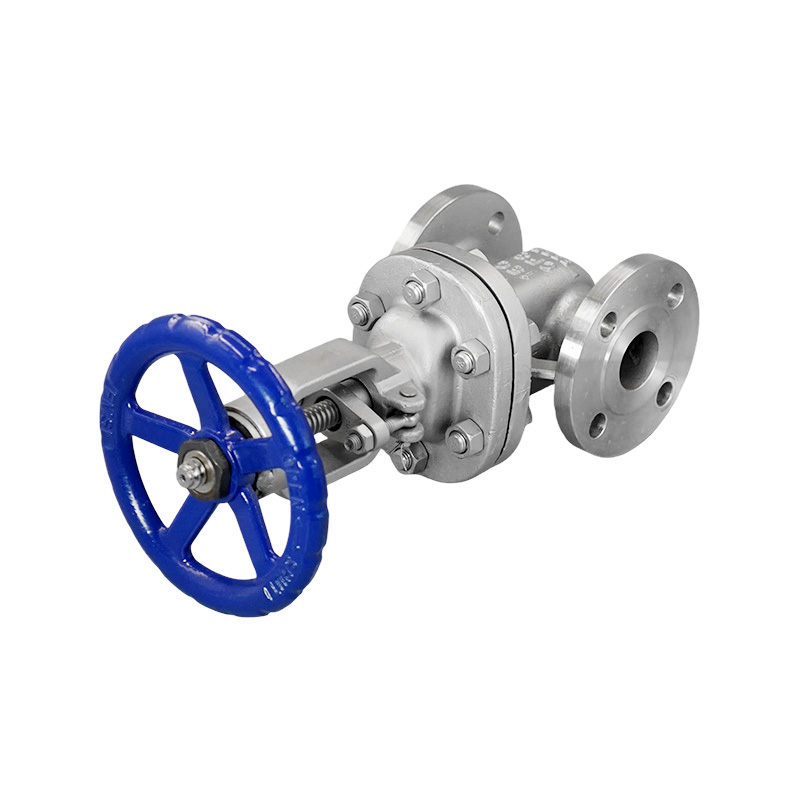

American Standard Flanged Gate Valve

The American Standard hard-sealed, rising-stem, flanged gate valve features a metal-to-metal hard-sealing design. Depending on material requirements and operating conditions, the gate disc and valve seat can be configured with either integral seating surfaces or welded hard alloy overlays. The body-to-bonnet connection utilizes a flat-face structure for the 150LB class, while the 300LB class employs a circular-face structure.

PREV：Threaded Gate Valve NEXT：Hard-seal Rising Stem Flanged Gate Valve

Specification
About Zhongchi
Contact Us

Design Features:
Design standard:
API 6D, API 600, API 603, ASME B16.34
Flanged ends:
ASME B16.5, ANSI B16.5
Test & inspection:
API598

Main parts and materials

ITEM

PART

MAIN MATERIAL

Body

CF8 CF3 CF8M CF3M WCB

Bonnet

CF8 CF3 CF8M CF3M WCB

Wedge

CF8 CF3 CF8M CF3M WCB

Stem

F304 F304L F316 F316L 2Cr13

Stem Nut

Copper Alloy

Packing

PTFE Flexible Graphite

Gasket

PTFE Spiral Wound Gasket

Gland

CF8 CF3 CF8M CF3M WCB

Bolt

B8 B7

Nut

A194-82H

Handwheel

QT400-17

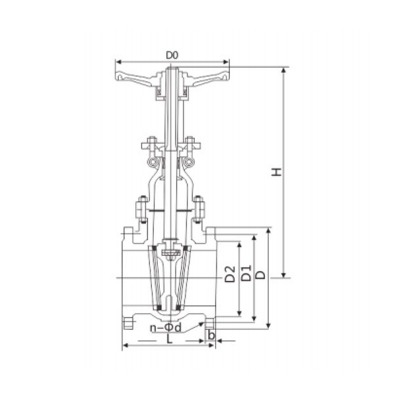

Main dimensions

SIZE	Class 150LB							Class 300LB
	L	D		D1	D2	b	n-Φd	L	D		D1	D2	b	n-Φd

1/2"	108	90	88.9	60.3	34.9	10	4-Φ16	140	95	95.3	66.7	34.9	14.7	4-Φ16
3/4"	117	100	98.6	69.9	42.9	10.9	4-Φ16	152	115	117.3	82.6	42.9	16.3	4-Φ19
1"	127	110	108	79.4	50.8	11.6	4-Φ16	165	125	123.9	88.9	50.8	17.9	4-Φ19
1-1/4"	140	115	117.3	88.9	63.5	13.2	4-Φ16	178	135	133.3	98.4	63.5	19.5	4-Φ19
1-1/2"	165	125	127	98.4	73	14.7	4-Φ16	190	155	155.4	114.3	73	21.1	4-Φ22
2"	178	150	152.4	120.7	92.1	16.3	4-Φ19	216	165	165.1	127	92.1	22.7	8-Φ19
2-1/2"	190	180	177.8	139.7	104.8	17.9	4-Φ19	241	190	190.5	149.2	104.8	25.9	8-Φ22
3"	203	190	190.5	152.4	127	19.5	4-Φ19	282	210	209.5	168.3	127	29	8-Φ22
4"	229	230	228.6	190.5	157.2	24.3	8-Φ19	305	255	254	200	157.2	32.2	8-Φ22

5"	254	255	254	215.9	185.7	24.3	8-Φ22	381	280	279.4	235	185.7	35.4	8-Φ22

6"	267	280	279.4	241.3	215.9	25.9	8-Φ22	403	320	317.5	269.9	215.9	37	12-Φ22

8"	292	345	342.9	298.5	269.9	29	8-Φ22	419	380	381	330.2	269.9	41.7	12-Φ25
10"	330	405	406.4	362	323.8	30.6	12-Φ25	457	445	444.5	387.4	323.8	48.1	16-Φ29
12"	356	485	482.6	431.8	381	32.2	12-Φ25	502	520	520.7	450.8	381	51.3	16-Φ32
14"	381	535	533.4	476.3	412.8	35.4	12-Φ29	762	585	584.2	514.4	412.8	54.4	20-Φ32
16"	406	595	596.9	539.8	469.9	37	16-Φ29	838	650	647.7	571.5	469.9	57.6	20-Φ35
18"	432	635	635	577.9	533.4	40.1	16-Φ32	914	710	711	628.6	533.4	60.8	24-Φ35
20"	457	700	698.5	635	584.2	43.3	20-Φ32	991	775	774.7	685.8	584.2	64	24-Φ35
24"	508	815	812.8	749.3	692.2	48.1	20-Φ35	1143	915	914.4	812.8	692.2	70.3	24-Φ41

The dimensions above are for reference only.
