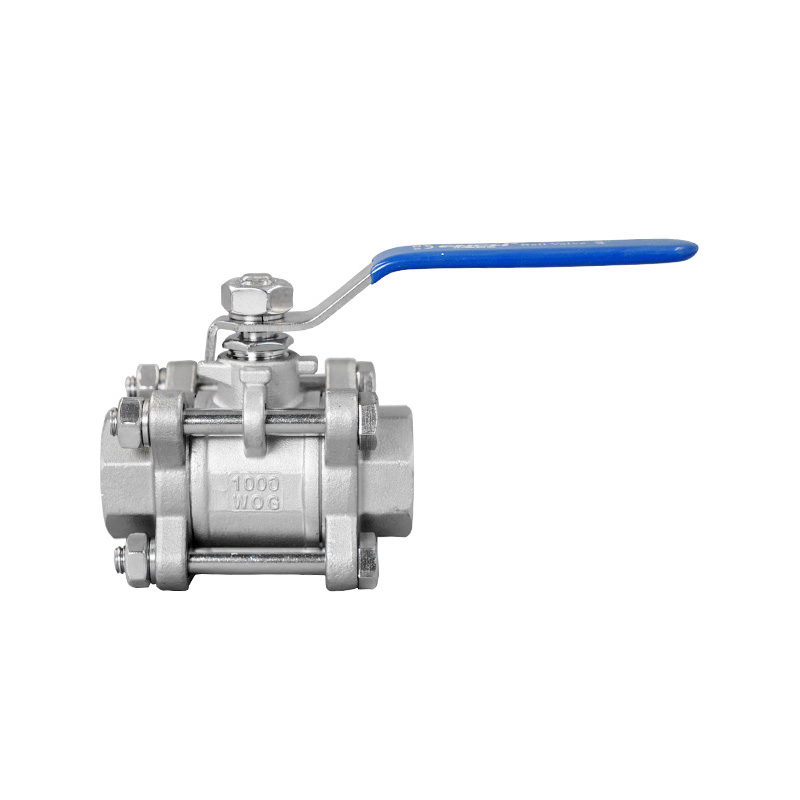

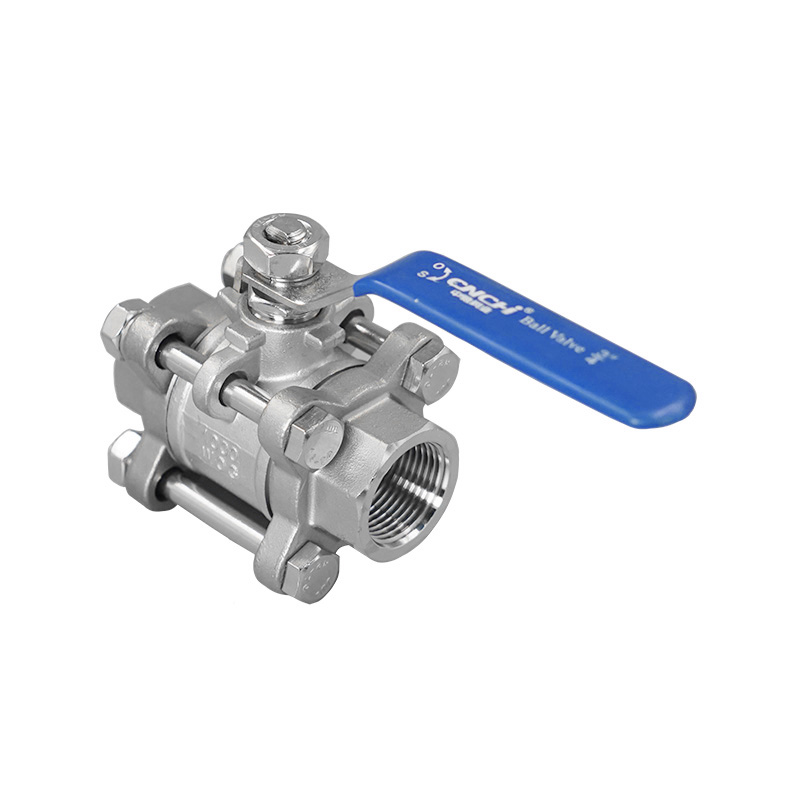

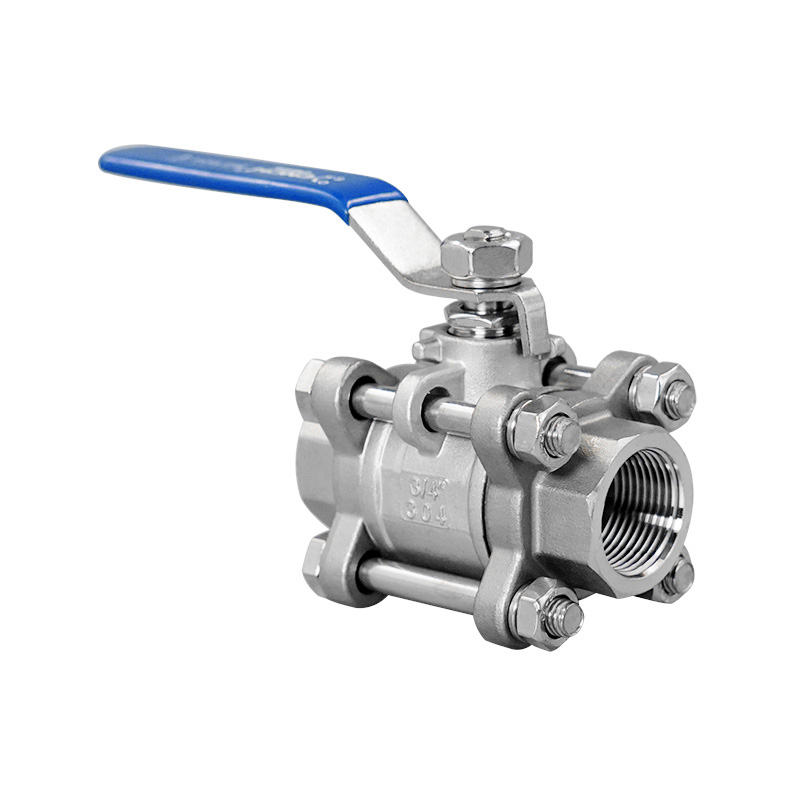

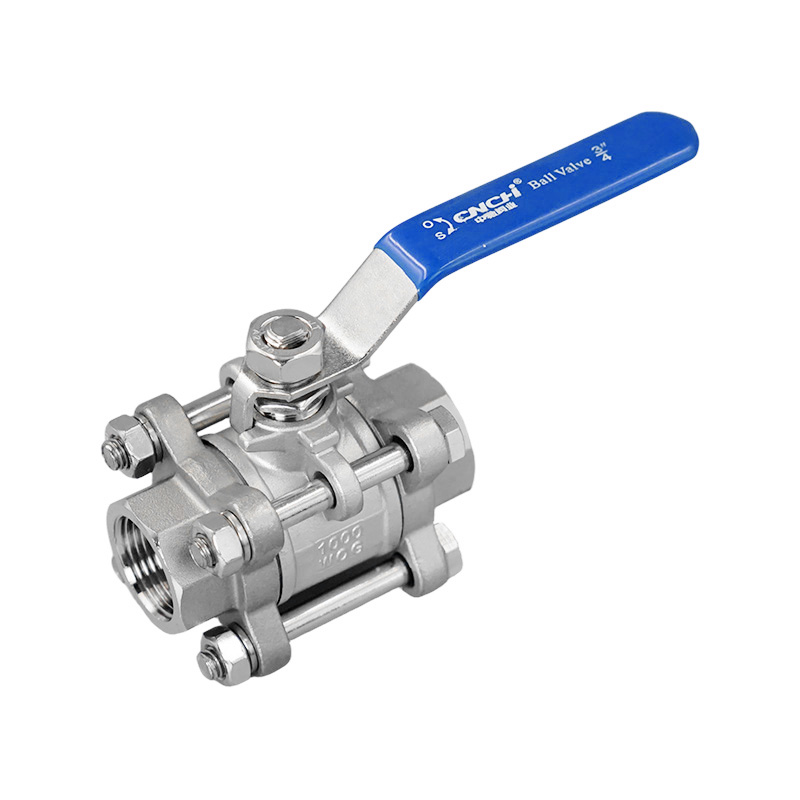

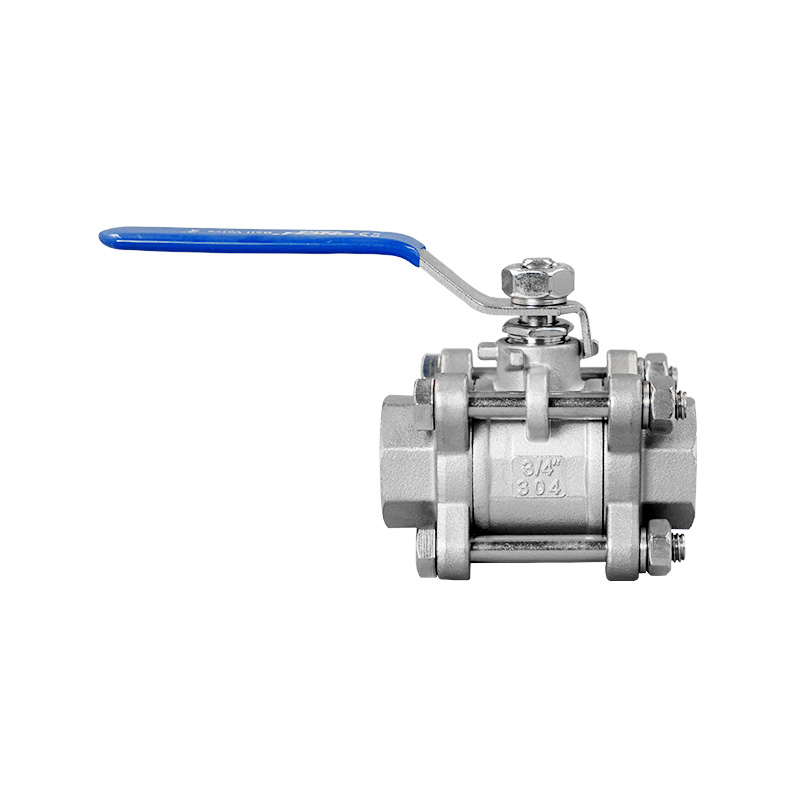

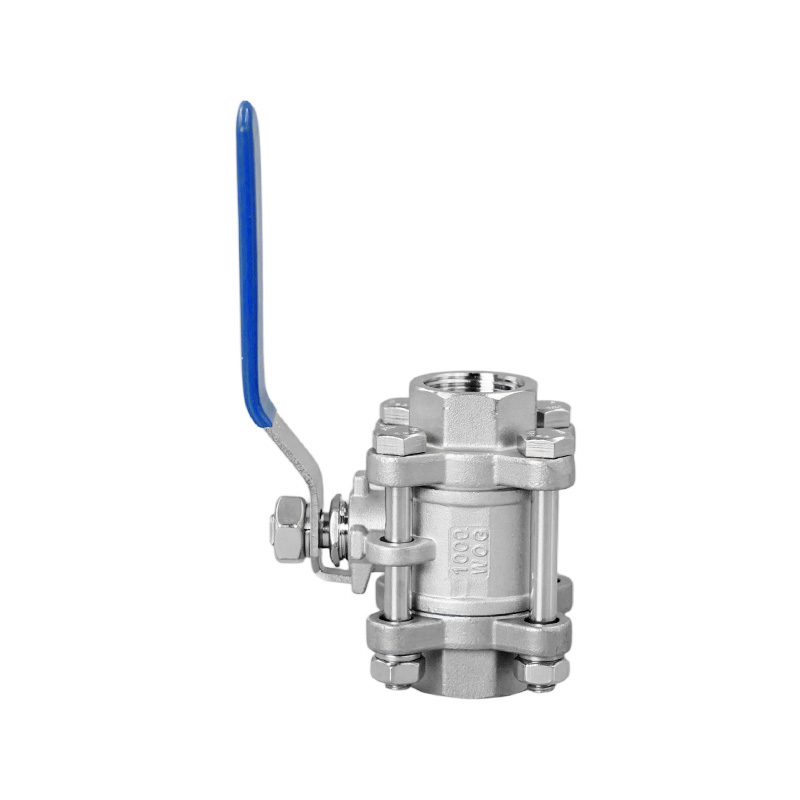

Three Pieces Manual Female Threaded Ball Valve

In contrast to one-piece integral or two-piece semi-split structures, the three-piece manually operated internally threaded ball valve features a three-segment body design, in which the left, central, and right body sections are securely joined by bolts. Its core advantage lies in its "fully detachable, precision maintenanc" nature. During routine maintenance, there is no need to dismantle the entire piping system; one simply needs to loosen the connecting bolts to completely separate the three valve body segments. This allows for the effortless removal of all internal components—including the ball, seats, and seals—enabling comprehensive inspection, repair, and replacement. Whether for the routine upkeep of wear-prone parts or the rapid troubleshooting of faulty components, the process requires minimal manpower and material resources. This significantly reduces downtime for maintenance, lowers operational costs, and effectively resolves the industry-wide pain points associated with the cumbersome, time-consuming, and labor-intensive nature of traditional valve maintenance, thereby making maintenance operations more efficient and precise. Featuring a full-bore design and PTFE seals, the valve ensures zero leakage.

PREV：Two Pieces Manual Female Threaded Ball Valve PN64 NEXT：2PC Manual Internal Threaded Ball Valve

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body
Blow-out Proof Stem
Full port design
Lockable handle available as an option
Thread standard:
NPT, BSP, BSPT, DIN259/2999, Rc, Rp
Working pressure: 1.6~2.5MPa
Applicable temperature:
-20°C~120°C(250°C)
Applicable Medium: Water, oil, gas, etc

Main parts and materials

ITEM	PART	MAIN MATERIAL

1	Body	WCB CF8 CF8M CF3M

2	Valve Seat	PTFE RPTFE


3	Ball	201 304 316 316L

4	Bonnet	WCB CF8 CF8M CF3M


5	Spring Washer	201 304

6	Nut	201 304

7	Bolt	A2-70

8	Stem	201 304 316 316L

9	Thrust Washer	PTFE RPTFE
10	Stem Packing	PTFE RPTFE

11	Gland Nut	201 304

12	Handle	201 304

13	Spring Washer	201 304
14	Nut	201 304

15	Locking Device (Optional)	201 304

16	Handle Cover	Plastic

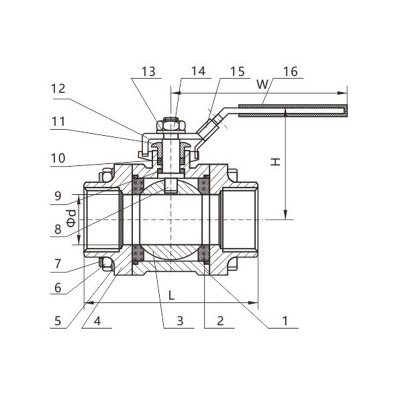

Main dimensions

SIZE		Φd	L		H	W
1/4"	DN6	10.5	65		52	95
3/8"	DN10	12	65		52	95
1/2"	DN15	15	70		55	100
3/4"	DN20	20	80		63	115
1"	DN25	25	88		75	125
1-1/4"	DN32	32	102		81	145
1-1/2"	DN40	38	110		95	160
2"	DN50	49	130		110	175
2-1/2"	DN65	65	170		131	220
3"	DN80	78	186		140	240
4"	DN100	98	225	252	170	315

The dimensions above are for reference only.
