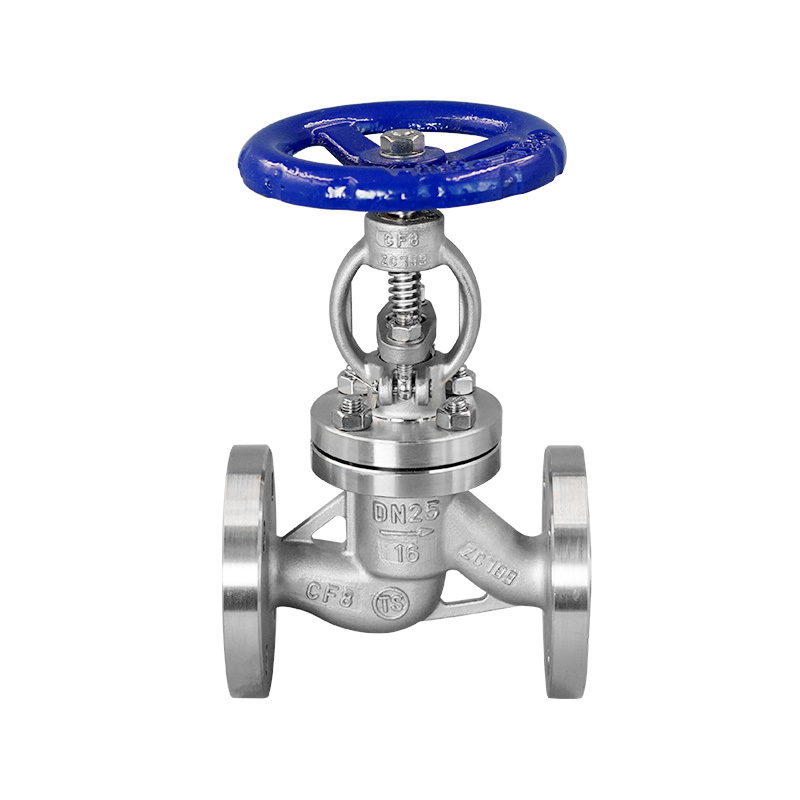

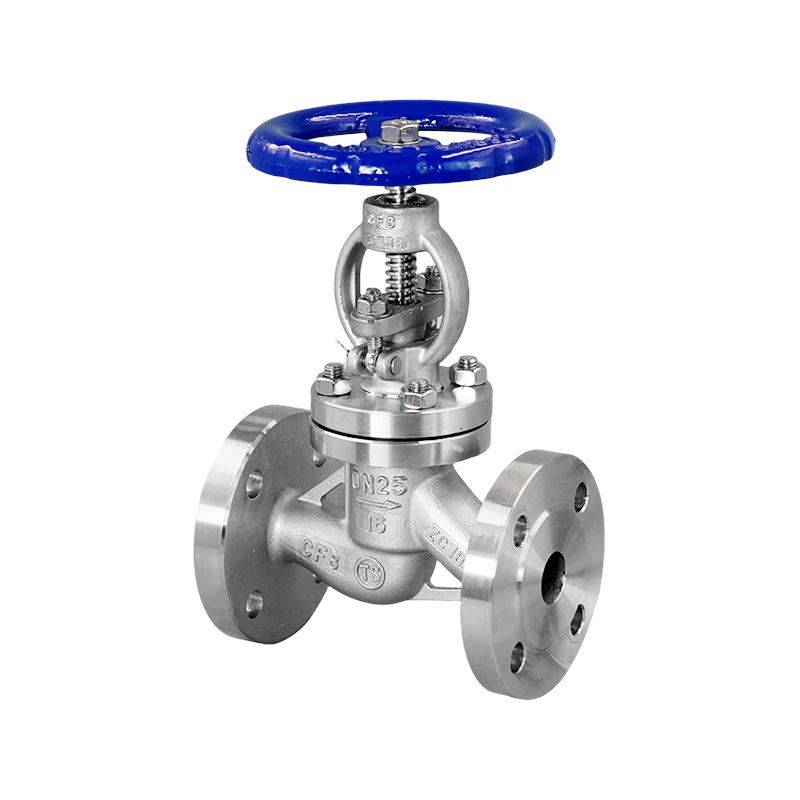

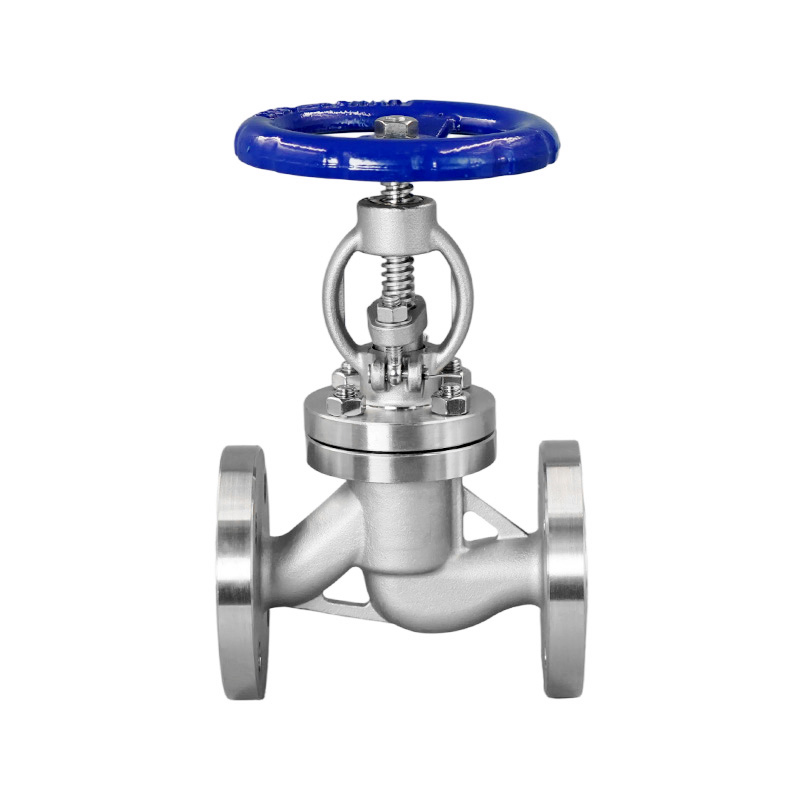

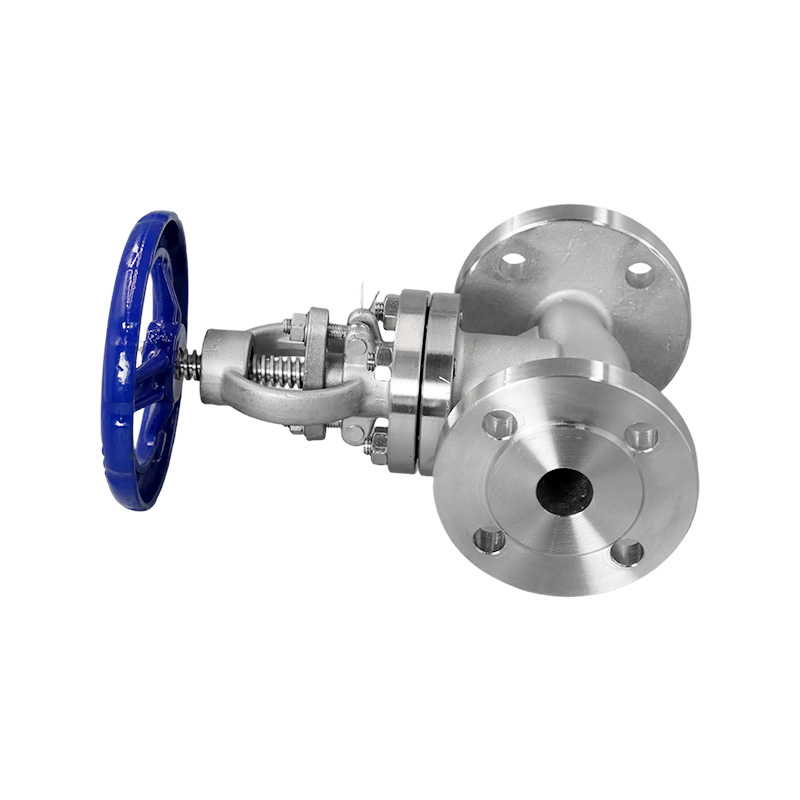

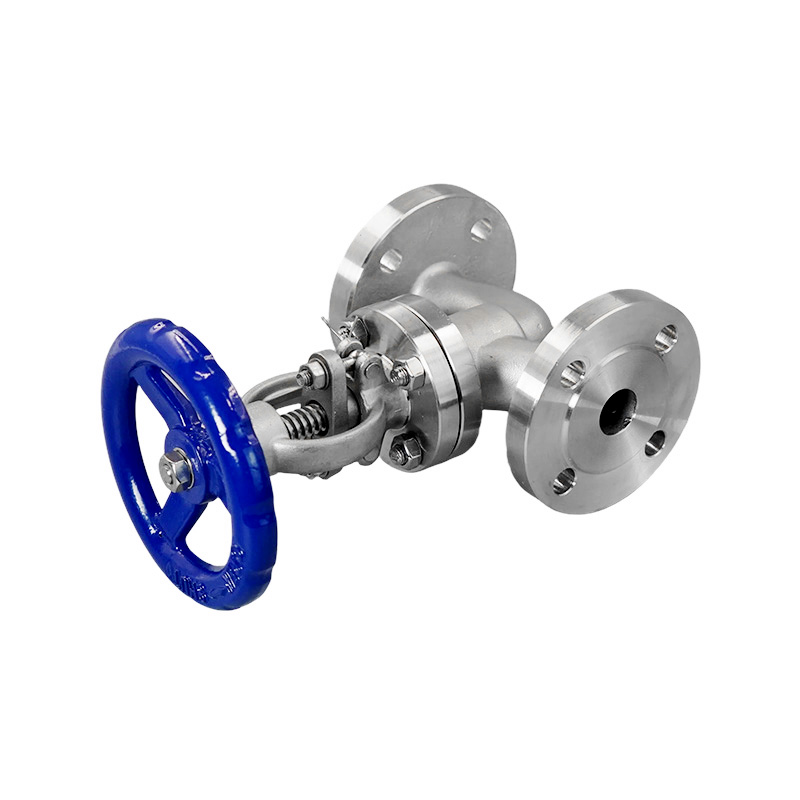

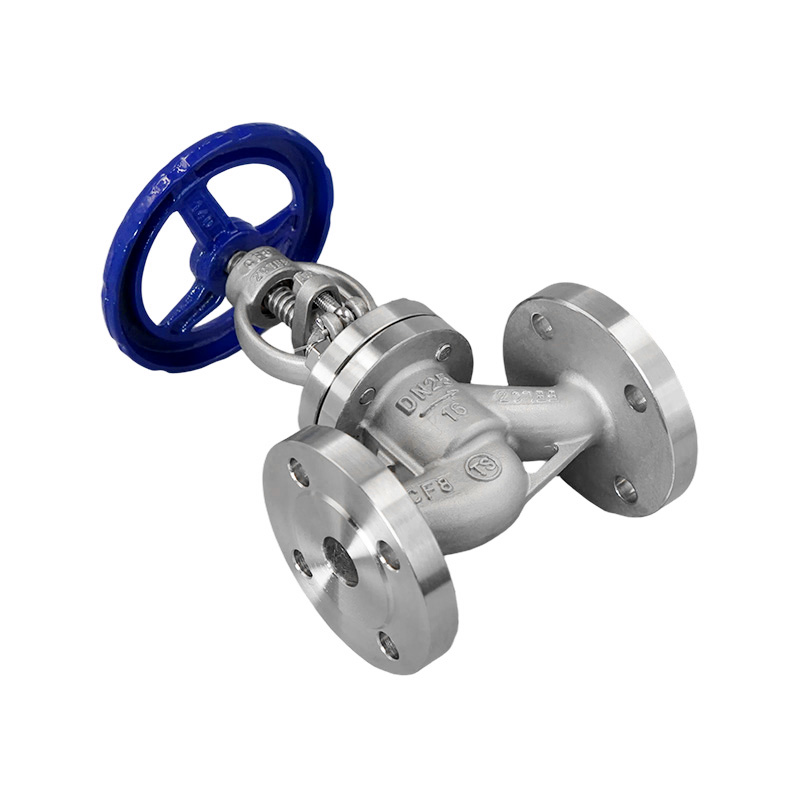

Flanged Globe Valve

In piping systems, globe valves primarily serve as shut-off devices, though they can also be utilized for limited flow regulation. During the opening and closing process, the frictional force acting on the sealing surfaces of a globe valve is lower than that of a gate valve. Typically, they feature a single sealing surface, and—depending on specific requirements—can be manufactured with either hard-sealed or soft-sealed seats.

PREV：American Standard Globe Valve NEXT：No next article

Specification
About Zhongchi
Contact Us

Design Features:
Flanged ends:
JB/T 79-2015
GB/T 9124.1-2019
Test & inspection:
GB/T 26480-2011, GB/T 13927-2022
JB/T 9092-1999

Main parts and materials

ITEM

PART

MAIN MATERIAL

Body

CF8 CF3 CF8M CF3M WCB

Bonnet

CF8 CF3 CF8M CF3M WCB

Disc

CF8 CF3 CF8M CF3M WCB

Stem

F304 F304L F316 F316L 2Cr13

Stem Nut

Copper Alloy

Packing

PTFE Flexible Graphite

Gasket

PTFE Spiral Wound Gasket

Gland

CF8 CF3 CF8M CF3M WCB

Bolt

B8 B7

Nut

A194-82H

Handwheel

QT400-17

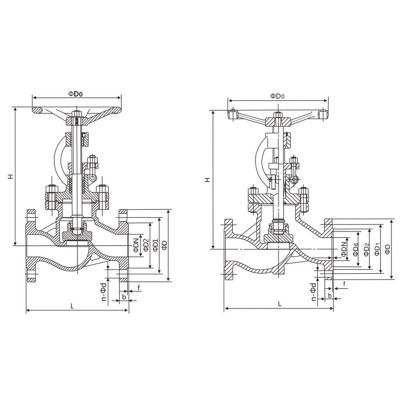

Main dimensions(PN16) GB/T9124.1-2019

DN	L	D	D1	D2	b-f	n-Φd	D0
15	130	95	65	45	16-2	4-Φ14	120
20	150	105	75	58	18-2	4-Φ14	140
25	160	115	85	68	18-2	4-Φ14	140
32	180	140	100	78	18-2	4-Φ18	160
40	200	150	110	88	18-3	4-Φ18	200
50	230	165	125	102	18-3	4-Φ18	220
65	290	185	145	122	18-3	8-Φ18	240
80	310	200	160	138	20-3	8-Φ18	260
100	350	220	180	158	20-3	8-Φ18	280
125	400	250	210	188	22-3	8-Φ18	320
150	480	285	240	212	22-3	8-Φ22	350
200	600	340	295	268	24-3	12-Φ22	450
250	650	405	355	320	26-3	12-Φ26	500
300	750	460	410	378	28-4	12-Φ26	550
350	850	520	470	438	30-4	16-Φ26	600
400	950	580	525	490	32-4	16-Φ30	700
450	1050	640	585	550	40-4	20-Φ30	800
500	1150	715	650	610	44-4	20-Φ33	900
600	1350	840	770	725	54-5	20-Φ36	1000

Main dimensions(PN25) GB/T 9124.1-2019

DN	L	D	D1	D2	b-f	n-Φd	D0
15	130	95	65	45	16-2	4-Φ14	120
20	150	105	75	58	18-2	4-Φ14	140
25	160	115	85	68	18-2	4-Φ14	140
32	180	140	100	78	18-2	4-Φ18	160
40	200	150	110	88	18-3	4-Φ18	200
50	230	165	125	102	20-3	4-Φ18	220
65	290	185	145	122	22-3	8-Φ18	240
80	310	200	160	138	24-3	8-Φ18	260
100	350	235	190	162	24-3	8-Φ22	280
125	400	270	220	188	26-3	8-Φ26	320
150	480	300	250	218	28-3	8-Φ26	350
200	600	360	310	278	30-3	12-Φ26	450
250	650	425	370	335	32-3	12-Φ30	500
300	750	485	430	395	34-3	16-Φ30	550
350	850	555	490	450	38-4	16-Φ33	600

400	950	620	550	505	40-4	16-Φ36	700
450	1050	670	600	555	46-4	20-Φ36	800
500	1150	730	660	615	48-4	20-Φ36	900
600	1350	845	770	720	58-5	20-Φ39	1000

Main dimensions(PN40) GB/T 9124.1-2019

DN	L	D	D1	D2	D6	b-f	f2	n-Φd	D0
15	130	95	65	45	40	16-2	4	4-Φ14	120
20	150	105	75	58	51	18-2	4	4-Φ14	140
25	160	115	85	68	58	18-2	4	4-Φ14	160
32	180	140	100	78	66	18-2	4	4-Φ18	180
40	200	150	110	88	76	18-3	4	4-Φ18	200
50	230	165	125	102	88	20-3	4	4-Φ18	220
65	290	185	145	122	110	22-3	4	8-Φ18	280
80	310	200	160	138	121	24-3	4	8-Φ18	300
100	350	235	190	162	150	24-3	4.5	8-Φ22	320
125	400	270	220	188	176	26-3	4.5	8-Φ26	400
150	480	300	250	218	204	28-3	4.5	8-Φ26	400
200	600	375	320	285	260	34-3	4.5	12-Φ30	450
250	650	450	385	345	313	38-3	4.5	12-Φ33	500
300	750	515	450	410	364	42-4	4.5	16-Φ33	550
350	850	580	510	465	422	46-4	5	16-Φ36	600
400	950	660	585	535	474	50-4	5	16-Φ39	700
450	1050	685	610	560	524	57-4	5	20-Φ39	800
500	1150	755	670	615	576	57-4	5	20-Φ42	900

Main dimensions(PN63) GB/T 9124.1-2019

DN	L	D	D1	D2	D6	b-f	f2	n-Φd	D0
15	170	105	75	55	40	20-2	4	4-Φ14	140
20	190	130	90	68	51	22-2	4	4-Φ18	160
25	210	140	100	78	58	24-2	4	4-Φ18	180
32	230	155	110	82	66	26-2	4	4-Φ22	200
40	260	170	125	95	76	26-3	4	4-Φ22	240
50	300	180	135	105	88	26-3	4	4-Φ22	280
65	340	205	160	130	110	26-3	4	8-Φ22	320
80	380	215	170	140	121	28-3	4	8-Φ22	360
100	430	250	200	168	150	30-3	4.5	8-Φ26	400
125	500	295	240	202	176	34-3	4.5	8-Φ30	400
150	550	345	280	240	204	36-3	4.5	8-Φ33	450
200	650	415	345	300	260	42-3	4.5	12-Φ36	500
250	775	470	400	352	313	46-3	4.5	12-Φ36	550
300	900	530	460	412	364	52-4	4.5	16-Φ36	600
350	1025	600	525	475	422	56-4	5	16-Φ39	650
400	1150	670	585	525	474	60-4	5	16-Φ42	700

The dimensions above are for reference only.
