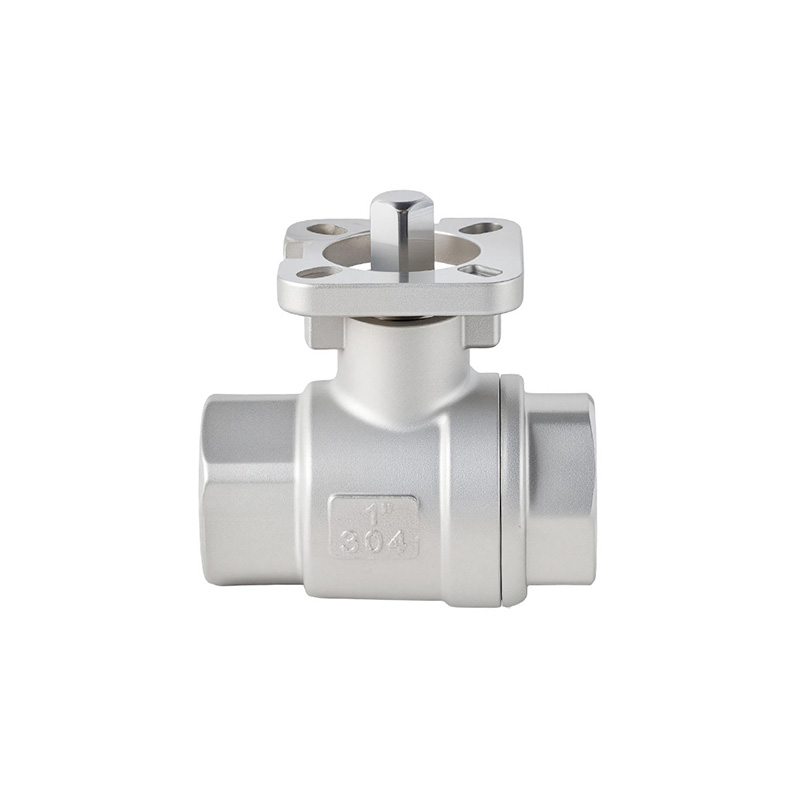

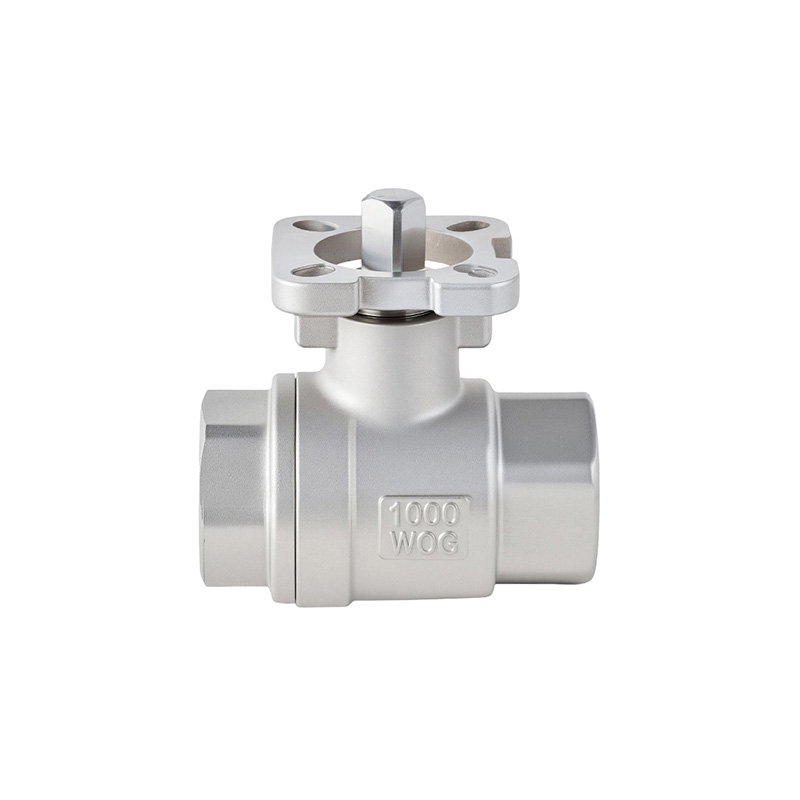

Two Pieces High Platform Female Threaded Ball Valve

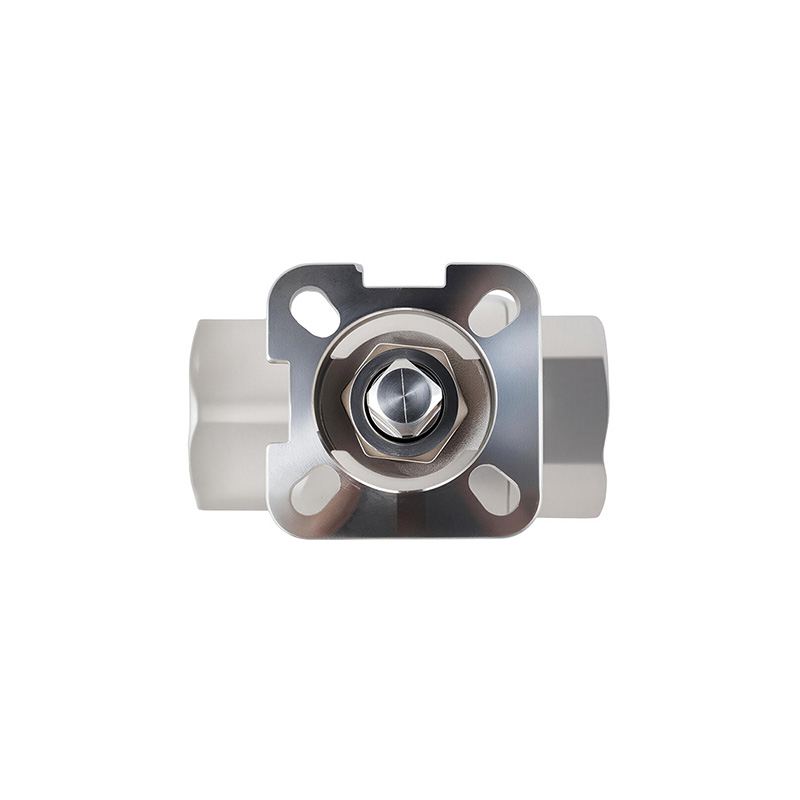

Compared to standard two-piece ball valves, the high-platform design ensures smoother stem transmission and more precise operation, effectively preventing issues such as stem misalignment or loosening while ensuring more reliable sealing. Furthermore, it features standardized mounting interfaces for actuators, allowing for rapid integration with pneumatic or electric actuators without the need for additional modifications. This facilitates the flexible switching between manual and automated control, making it suitable for a diverse range of applications—including industrial automation upgrades and remote control systems—and providing convenient support for enterprises seeking future capacity expansion and process optimization.

PREV：Three-Ways Threaded Ball Valve NEXT：Two Pieces Manual Female Threaded Ball Valve PN64

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body
Blow-out Proof Stem
Full port design
Lockable handle available as an option
Thread standard:
NPT, BSP, BSPT, DIN259/2999, Rc, Rp
Working pressure: 1.6~2.5MPa
Applicable temperature:
-20°C~120°C(250°C)
Applicable Medium: Water, oil, gas, Etc

Main parts and materials

ITEM

PART

MAIN MATERIAL

Body

WCB CF8 CF8M

Valve Seat

PTFE RPTFE

Ball

201 304 316

Sealing Ring

PTFE RPTFE

Bonnet

WCB CF8 CF8M

Stem

201 304 316

Thrust Washer

PTFE RPTFE

O-ring

VITON

Stem Packing

PTFE RPTFE

Gland Nut

201 304

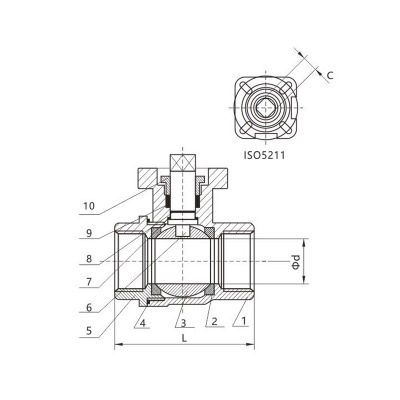

Main dimensions

SIZE		Φd	L	C	ISO5211

1/2"	DN15	15	62	9	F03/F04
3/4"	DN20	20	71	9	F03/F04
1"	DN25	25	84	11	F04/F05
1-1/4"	DN32	32	97	11	F04/F05
1-1/2"	DN40	38	105	14	F05/F07
2"	DN50	49	120	14	F05/F07
2-1/2"	DN65	65	144	17	F07/F10
3"	DN80	78	170	17	F07/F10
4"	DN100	98	204	17	F07/F10

The dimensions above are for reference only.
