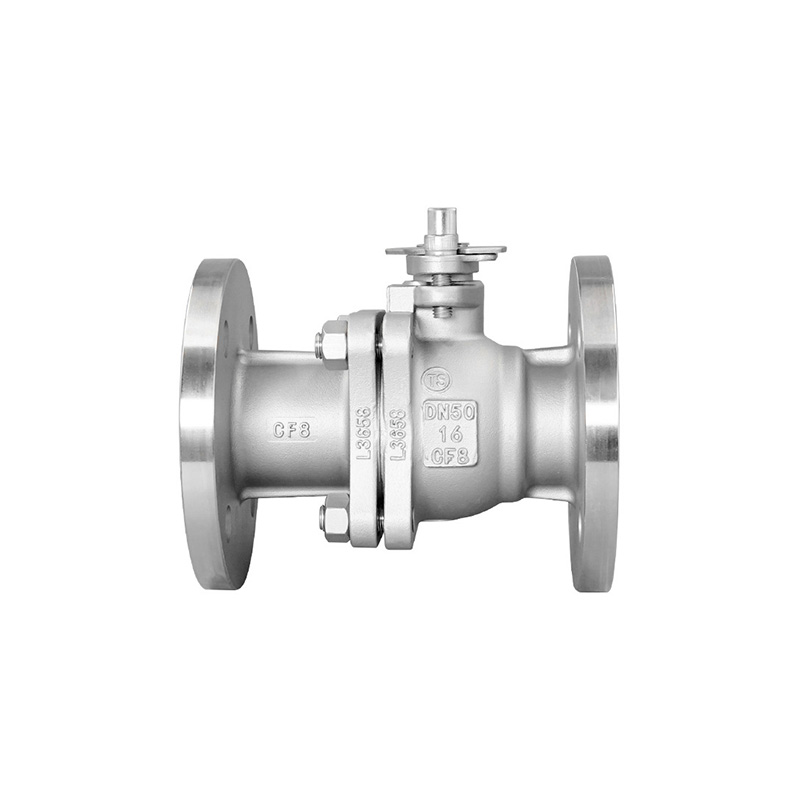

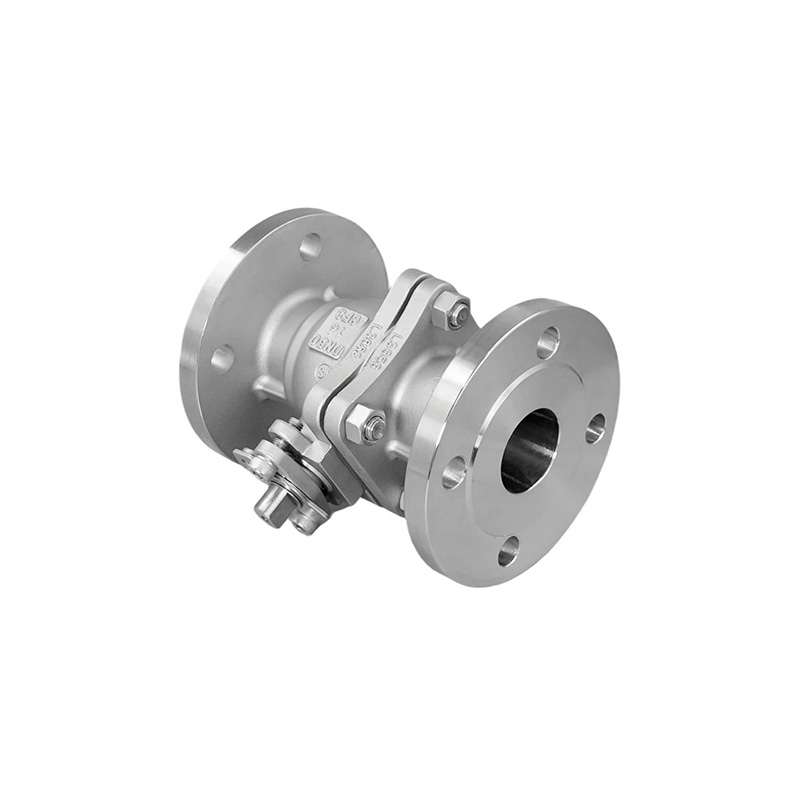

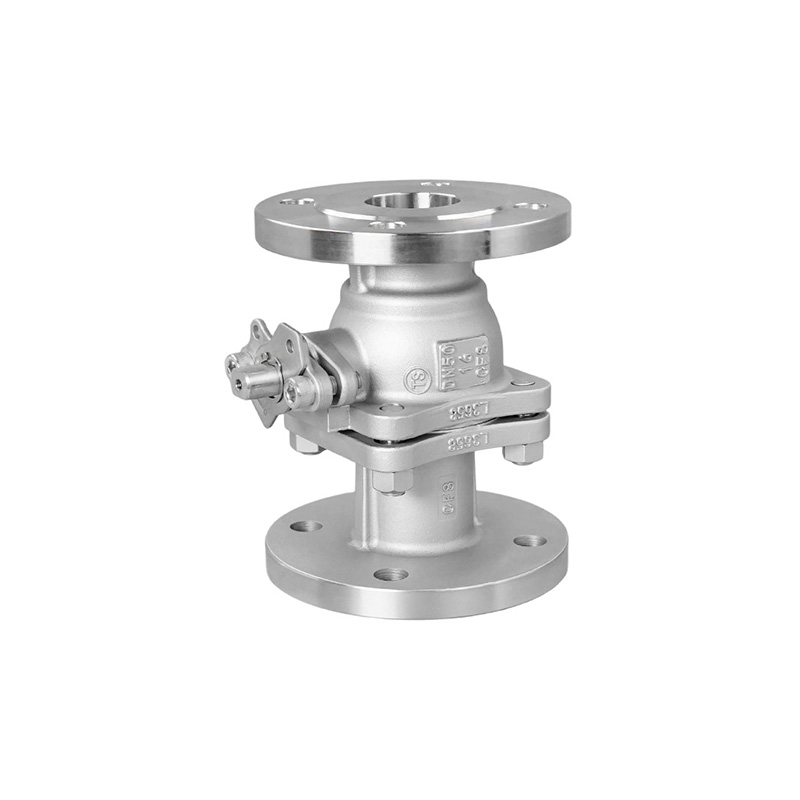

Soft-seal Floating Flange Ball Valve

The soft-sealed floating-flange ball valve is a vital component in industrial fluid control, distinguished by its versatility and high adaptability. Featuring a classic soft-sealed floating-ball design, the valve utilizes seats constructed from reinforced Polytetrafluoroethylene (PTFE)—a material characterized by a low coefficient of friction and exceptional sealing capabilities. This is complemented by the structural feature of a floating ball lacking a fixed shaft; under the influence of fluid pressure, the ball is able to undergo slight, self-adjusting displacement, ensuring a tight, intimate contact between the valve seat and the ball's sealing surface to achieve bidirectional, zero-leakage sealing.

PREV：Hard Sealed Floating Flange Ball Valve NEXT：No next article

Specification
About Zhongchi
Contact Us

Design Features:
Flanged ends:
JB/T 79-2015, GB/T 9124.1-2019
Test & inspection:
GB/T 26480-2011, GB/T 13927-2022
JB/T 9092-1999
Applicable medium:
Water, oil, gas Ect

Main parts and materials

ITEM

PART

MAIN MATERIAL

Body

CF8 CF3 CF8M CF3M WCB

Bonnet

CF8 CF3 CF8M CF3M WCB

Ball

304 304L 316 316L

Stem

F304 F304L F316 F316L 2Cr13

Valve Seat

PTFE RPTFE

Packing

PTFE RPTFE Flexible Graphite

Gasket

PTFE RPTFE Spiral Wound Gasket

Bolt

B8 B7

Nut

A194-82H

Handle

WCB Aluminum Alloy

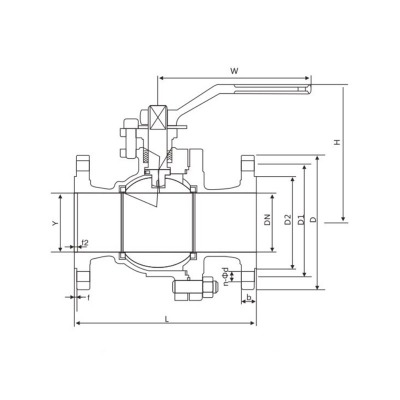

Main dimensions(PN16) GB/T 9124.1-2019

DN	L		D	D1	D2	b	f	n-Φd	W
15	130		95	65	45	16	2	4-Φ14	140
20	130	140	105	75	58	18	2	4-Φ14	140

25	140	150	115	85	68	18	2	4-Φ14	140

32	165		140	100	78	18	2	4-Φ18	150

40	165	180	150	110	88	18	3	4-Φ18	190
50	203	200	165	125	102	18	3	4-Φ18	200
65	222	220	185	145	122	18	3	8-Φ18	230
80	241	250	200	160	138	20	3	8-Φ18	260
100	305	280	220	180	158	20	3	8-Φ18	280
125	356	320	250	210	188	22	3	8-Φ18	360

150	394	360	285	240	212	22	3	8-Φ22	630

200	457	400	340	295	268	24	3	12-Φ22	780

250	533		405	355	320	26	3	12-Φ26	/
300	610		460	410	378	28	3	12-Φ26	/

Main dimensions(PN25) GB/T 9124.1-2019

DN	L		D	D1	D2	b	n-Φd	W
15	130		95	65	45	16	4-Φ14	140
20	130	140	105	75	58	18	4-Φ14	140
25	140	150	115	85	68	18	4-Φ14	140
32	165		140	100	78	18	4-Φ18	150
40	165	180	150	110	88	18	4-Φ18	190
50	203	200	165	125	102	20	4-Φ18	200
65	222	220	185	145	122	22	8-Φ18	230
80	241	250	200	160	138	24	8-Φ18	260
100	305	280	235	190	162	24	8-Φ22	280
125	356	320	270	220	188	26	8-Φ26	360
150	394	360	300	250	218	28	8-Φ26	630
200	457	400	360	310	278	30	12-Φ26	780
250	533		425	370	335	32	12-Φ30	/

Main dimensions(PN40) GB/T 9124.1-2019

DN	L	D	D1	D2	b	Y	f2	n-Φd	W


15	130	95	65	45	16	40	4	4-Φ14	140

20	140	105	75	58	18	51	4	4-Φ14	140


25	150	115	85	68	18	58	4	4-Φ14	140

32	180	140	100	78	18	66	4	4-Φ18	150

40	200	150	110	88	18	76	4	4-Φ18	190


50	220	165	125	102	20	88	4	4-Φ18	200

65	250	185	145	122	22	110	4	8-Φ18	230

80	280	200	160	138	24	121	4	8-Φ18	260

100	320	235	190	162	24	150	4.5	8-Φ22	280
125	400	270	220	188	26	176	4.5	8-Φ26	360

150	400	300	250	218	28	204	4.5	8-Φ26	630
200	500	375	320	285	34	260	4.5	12-Φ30	780

250	568	450	385	345	38	313	4.5	12-Φ33	/

Main dimensions(PN63) JB/T 79-2015

DN	L	D	D1	D2	b	Y	f2	n-Φd	W

15	140	105	75	55	18	40	4	4-Φ14	140

20	155	125	90	68	20	51	4	4-Φ18	140

25	180	135	100	78	22	58	4	4-Φ18	150

32	200	150	110	82	24	66	4	4-Φ23	190
40	220	165	125	95	24	76	4	4-Φ23	200
50	250	175	135	105	26	88	4	4-Φ23	230
65	280	200	160	130	28	110	4	8-Φ23	260

80	320	210	170	140	30	121	4	8-Φ23	280

100	360	250	200	168	32	150	4.5	8-Φ25	360

125	455	295	240	202	36	176	4.5	8-Φ30	630

150	495	340	280	240	38	204	4.5	8-Φ34	780

The dimensions above are for reference only.
