H71 Wafer Check Valve

Home / Products / Check Valve / H71 Wafer Check Valve

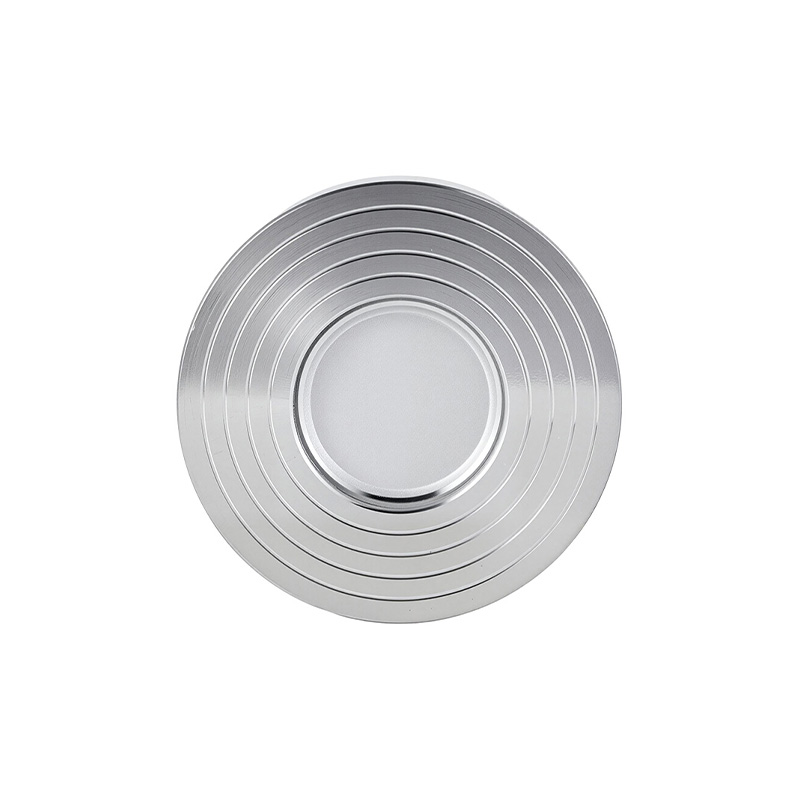

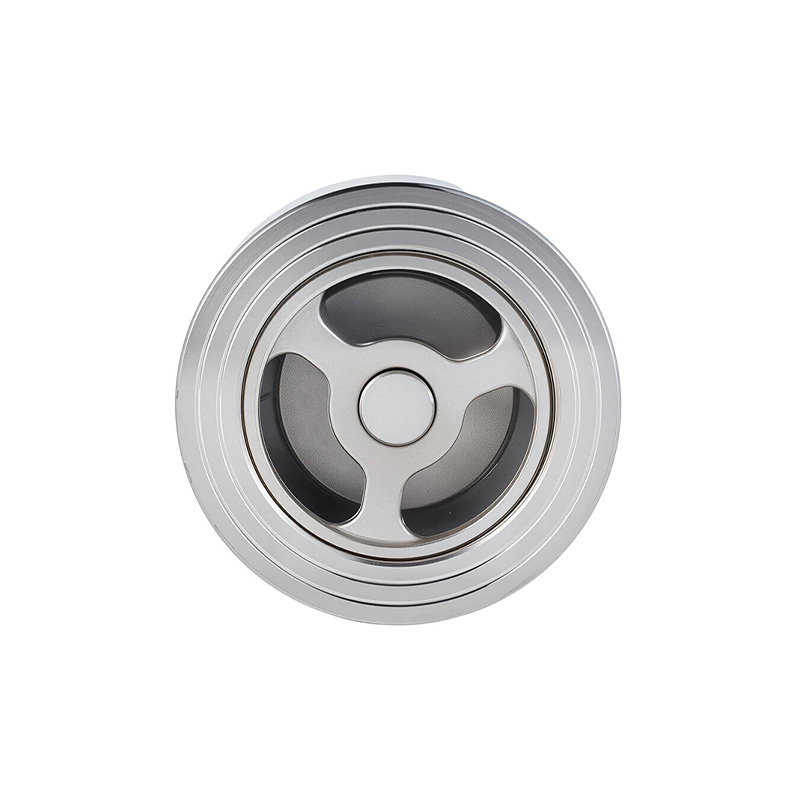

H71 Wafer Check Valve

The H71 Wafer Check Valve is an ultra-thin, flange-mounted unidirectional valve that features no independent body flanges; instead, it is secured directly by being sandwiched between two pipeline flanges. Designed with a core focus on ultra-compact installation, low flow resistance, and adaptability across multiple pipe diameters, it balances ease of installation with suitability for diverse operating conditions, making it the preferred choice for small-bore pipelines or applications with limited space.

Contact Us
PREV：H74 Wafer Single-Disc Swing Check ValveNEXT：Flanged Vertical Check Valve
  • Specification
  • About Zhongchi
  • Contact Us
Design Features:
ASME B16.34, API 594
Test & inspection:
GB/T 13927-2016, API 598


Main parts and materials

ITEM PART MAIN MATERIAL
1  Body CF8 CF3 CF8M CF3M WCB
2  Disc CF8 CF3 CF8M CF3M WCB
3  Pressure Ring CF8 CF3 CF8M CF3M WCB
4  Spring Washer Stainless Steel

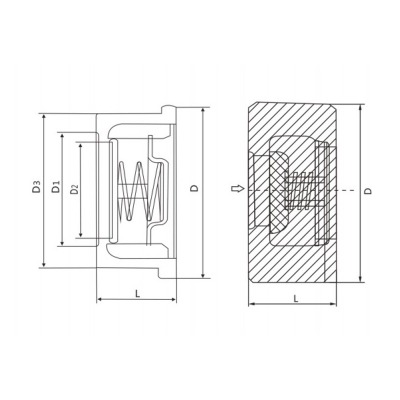

Main dimensions(PN16-PN25)

DN L D D1 D3 D2
15  28  49  15  44  25
20  28  49  19  52  30
25  28  67  24  60  36
32  31  75  31  72  43
40  35  86  39  74  52
50  39  100  48  98  62
65  54  115  63  117  75
80  58  135  78  128  90
100  68  154  98  / 112
125  85  185  123  / 132
150  100  212  148  / 158
200  110  270  198  / 208
250  122  327  248  / 258

 The dimensions above are for reference only.
