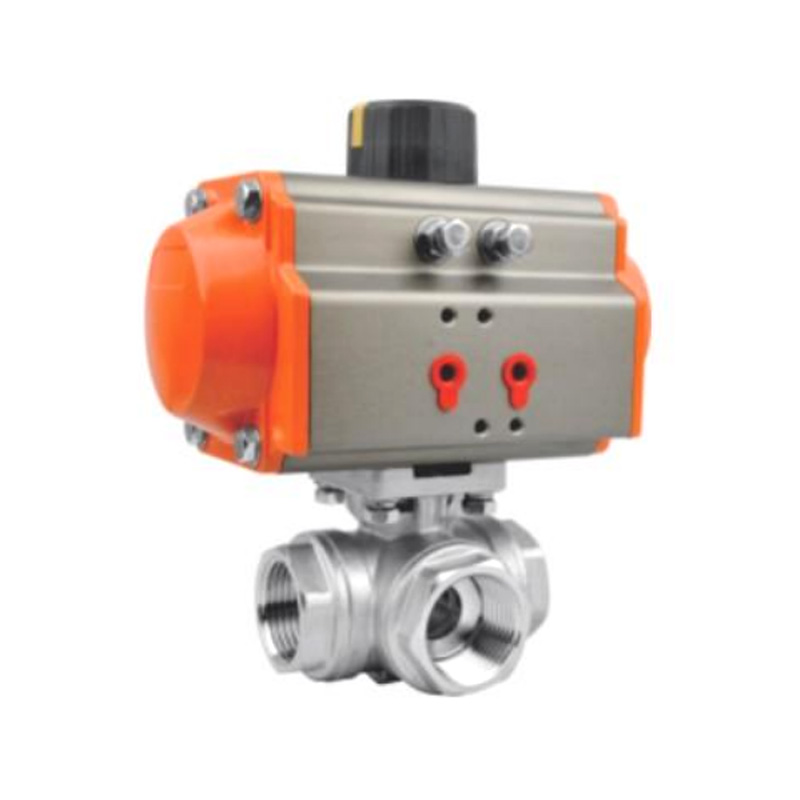

Three-Ways Threaded Ball Valve

The three-way diversion and switching mechanism eliminates the need for additional piping connections or the installation of extra valves; a simple rotation of the valve stem enables one-touch control over fluid diversion, confluence, and flow direction, offering simple, convenient operation and precise control over the medium's flow path. Users may select between L-type and T-type configurations based on their specific requirements.

PREV：Bar Stock Ball Valve NEXT：Two Pieces High Platform Female Threaded Ball Valve

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body
Blow-out Proof Stem
Reduce Port Design
Lockable handle available as an option
LPort or T Port Ball Design
Thread standard:
NPT, BSP, BSPT, DIN259/2999, Rc, Rp
Working pressure: 1.6~2.5MPa
Applicable temperature:
-20°C~120°C(250°C)
Applicable Medium: Water, oil, gas, Etc

Main parts and materials

ITEM

PART

MAIN MATERIAL

Bonnet

CF8 CF8M

Sealing Ring

PTFE RPTFE

Valve Seat

PTFE RPTFE

Ball

304 316

Body

CF8 CF8M

Stem

PTFE RPTFE

Thrust Washer

PTFE RPTFE

O-ring

VITON

Stem Packing

PTFE RPTFE

Gland Nut

304

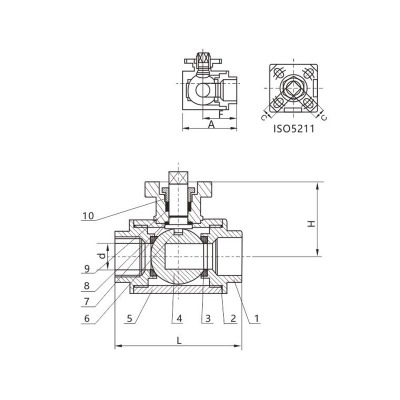

Main dimensions

SIZE		Φd	L	H	W	C	ISO5211

1/2"	DN15	12	70	38	115	9	F03/F04
3/4"	DN20	15	80	41	115	9	F03/F04
1"	DN25	18	87	47	145	11	F04/F05
1-1/4"	DN32	25	110	57	160	11	F04/F05

1-1/2"	DN40	32	131	69	180	14	F05/F07

2"	DN50	38	143	75	200	14	F05/F07
2-1/2"	DN65	49	170	/	240	17	F07/F10

The dimensions above are for reference only.
