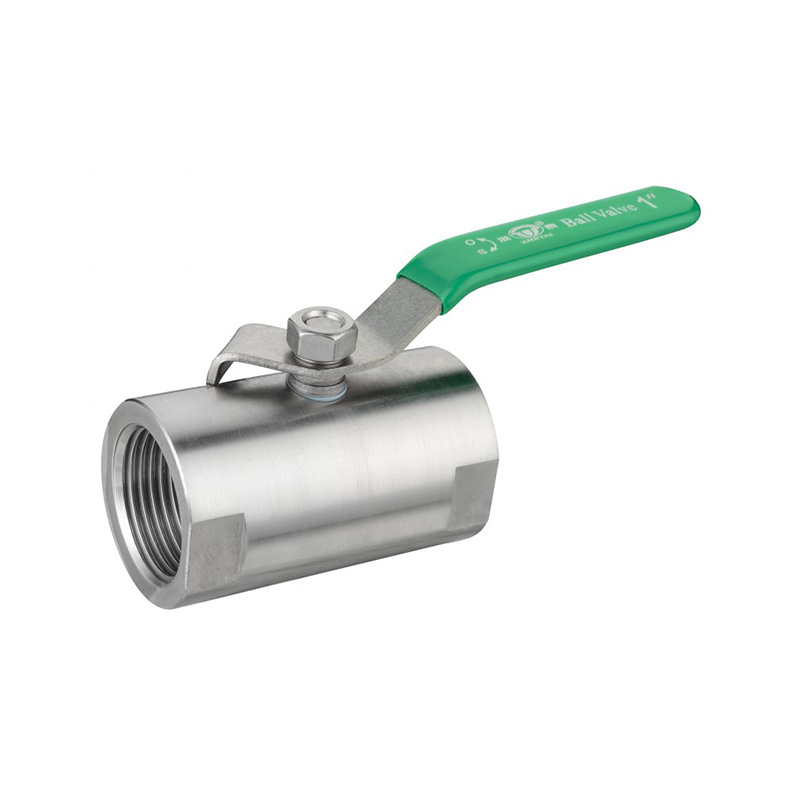

Bar Stock Ball Valve

This product is integrally forged from materials such as stainless steel or carbon steel, eliminating porosity defects and ensuring a thick, robust valve body. It features a compact structure, a reduced-bore design, and PTFE sealing.

PREV：Three Pieces High Platform Female Threaded Ball Valve NEXT：Three-Ways Threaded Ball Valve

Specification
About Zhongchi
Contact Us

Design Features:
Forged Steel Body
Blow-out Proof Stem
Thread standard:
NPT, BSP, BSPT, DIN259/2999, Rc, Rp
Working pressure: 1.6~6.4MPa
Applicable temperature:
-20°C~120°C(250°C)
Applicable Medium: Water, oil, gas, Etc

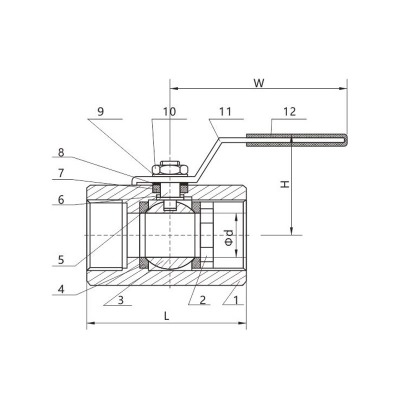

Main parts and materials

ITEM	PART	MAIN MATERIAL

1	Body	A105 304 316

2	End Cap	201 304 316

3	Ball	201 304 316


4	Valve Seat	PTFE RPTFE

5	Stem	201 304 316

6	Thrust Washer	PTFE RPTFE

7	Stem Packing	PTFE RPTFE


8	Gasket	304


9	Spring Washer	304



10	Nut	201 304

11	Handle	201 304
12	Handle Cover	Plastic

Main dimensions

SIZE		d	Φd	L	H	W
1/4"	DN6	5	20	48	30	85
3/8"	DN10	8	27	58	37	88

1/2"	DN15	10.5	31.5	60	38	90
3/4"	DN20	13	37	66	45	92
1"	DN25	17	44	72	47	100
1-1/4"	DN32	22	53	89	60	128

1-1/2"	DN40	25	60	96	63	128
2"	DN50	32	72	108	74	140
2-1/2"	DN65	40	88	130	90	180

3"	DN80	50	103	148	100	200

4"	DN100	65	135	188	115	230

The dimensions above are for reference only.
