Korean Style Full Port 2PC Ball Valve

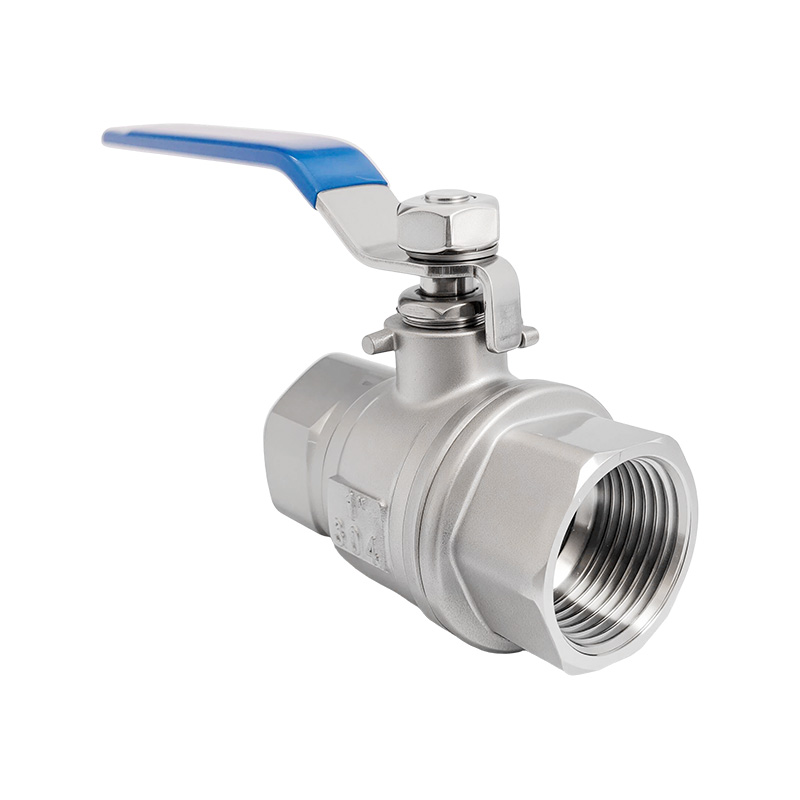

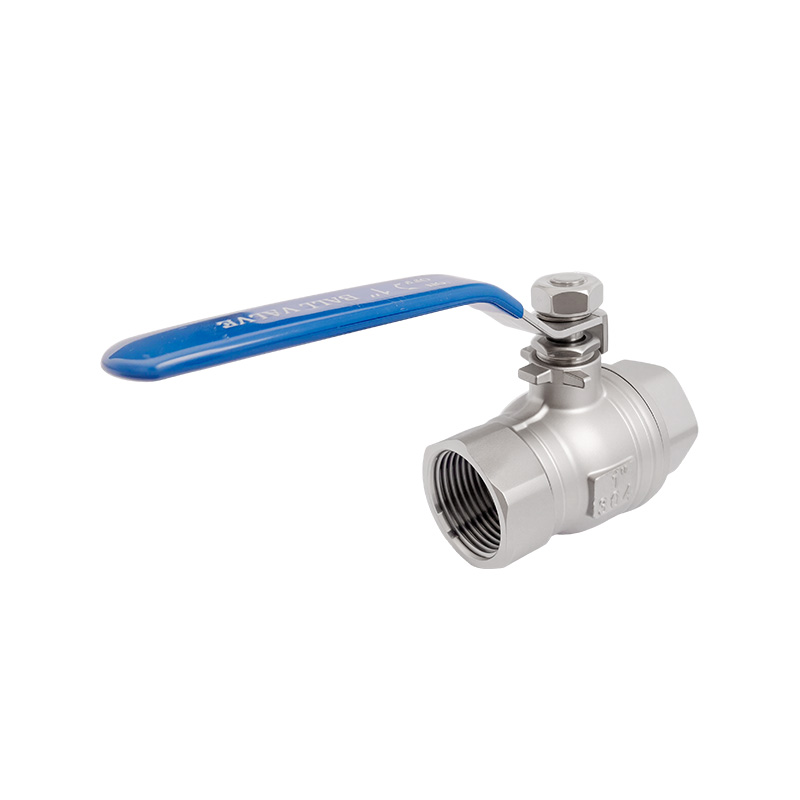

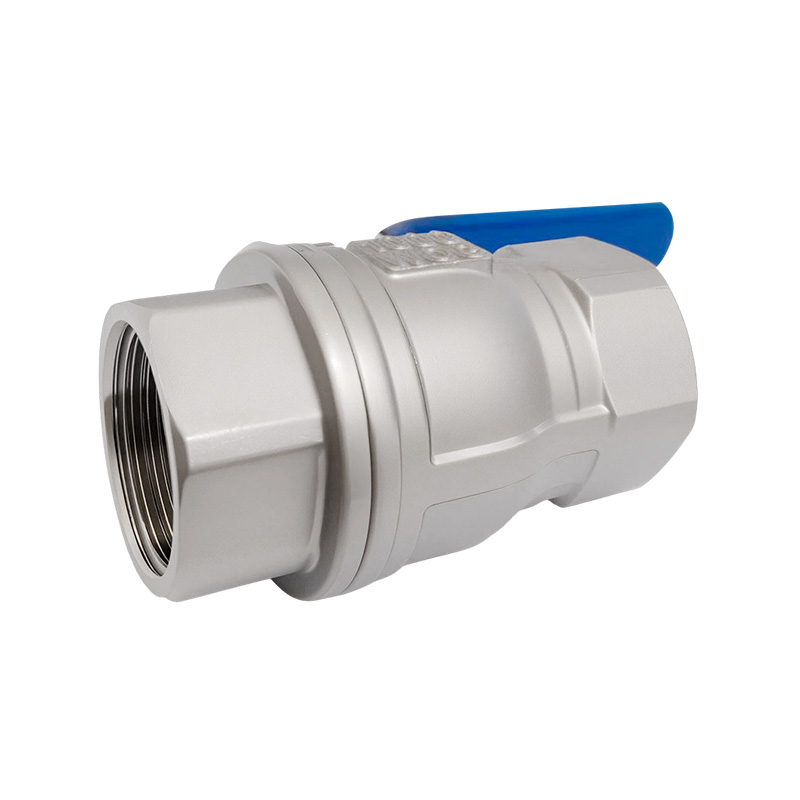

Korean Style Full Port 2PC Ball Valve is a two-piece ball valve designed for pipeline shut-off applications. It features an investment-cast valve body that provides a solid and uniform structure, while the full-port design maintains the internal flow passage with reduced flow restriction. The blow-out-proof stem enhances operational safety by helping prevent stem displacement under pressure.

The two-piece construction provides a practical valve structure for industrial pipeline installation and maintenance. Its full-port configuration is suitable for applications where maintaining flow capacity through the valve is important. A lockable handle is available as an option, allowing the valve operating position to be secured when required for system management or safety purposes.

Korean Style Full Port 2PC Ball Valve is suitable for industrial pipelines, fluid handling systems, equipment connections, and general shut-off applications. OEM and ODM services can support customization of valve size, body materials, sealing materials, connection types, handle configurations, and other project-specific requirements.

Contact Us
PREV：No previous articleNEXT：One‑Piece Ball Valve with Lock Device
  • Specification
  • Purchasing Information
  • Contact Us

Main dimensions

SIZE Φd L H W
1/4" DN6 10.5 45 50 95
3/8 DN10 12 45 50 95
1/2" DN15 15 56 59 95
3/4" DN20 20 64 62 108
1" DN25 25 78 70 115
1-1/4 DN32 32 88 83 145
1-1/2 DN40 38 95 90 170
2" DN50 49 116 100 175

Main dimensions

SIZE Φd L H W
1/4" DN6 10.5 45 50 95
3/8 DN10 12 45 50 95
1/2" DN15 15 56 59 95
3/4" DN20 20 64 62 108
1" DN25 25 78 70 115
1-1/4 DN32 32 88 83 145
1-1/2 DN40 38 95 90 170
2" DN50 49 116 100 175
