S Type Threaded Globe Valve

Home / Products / Globe Valve / S Type Threaded Globe Valve
  • S Type Threaded Globe Valve
  • S Type Threaded Globe Valve
  • S Type Threaded Globe Valve
  • S Type Threaded Globe Valve
  • S Type Threaded Globe Valve
  • S Type Threaded Globe Valve

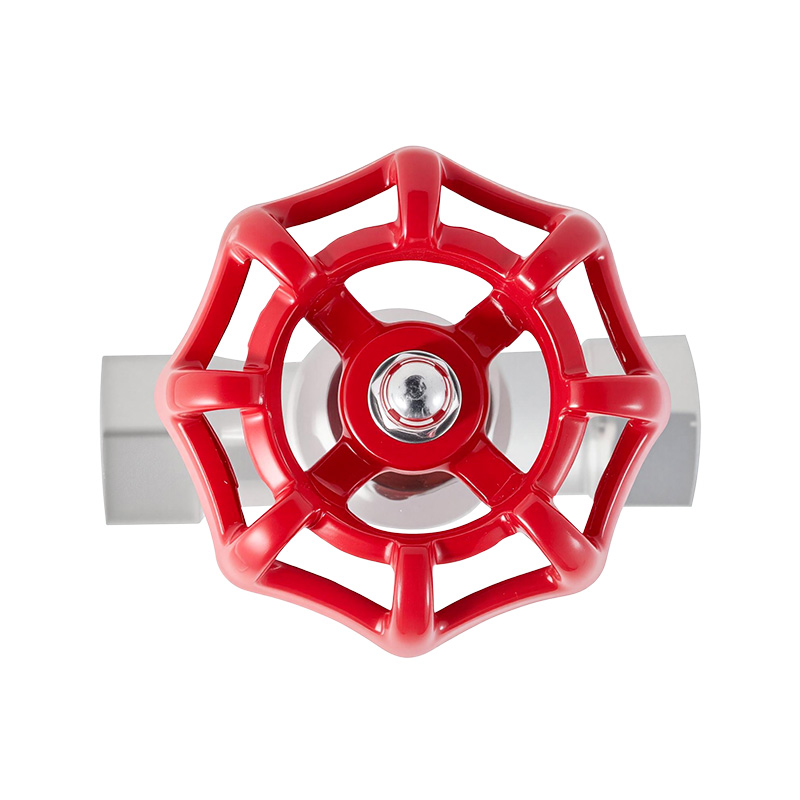

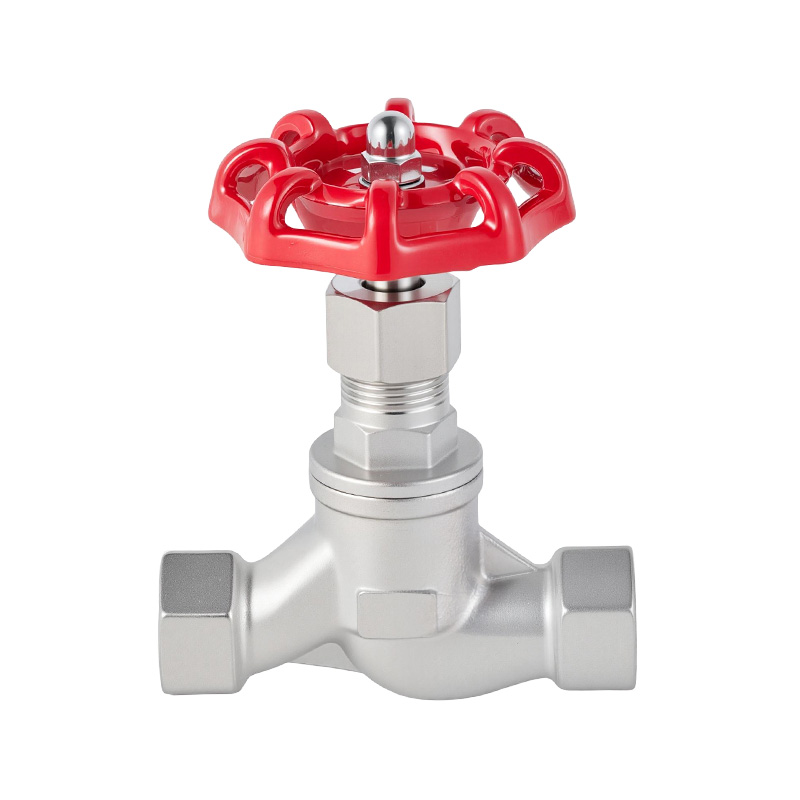

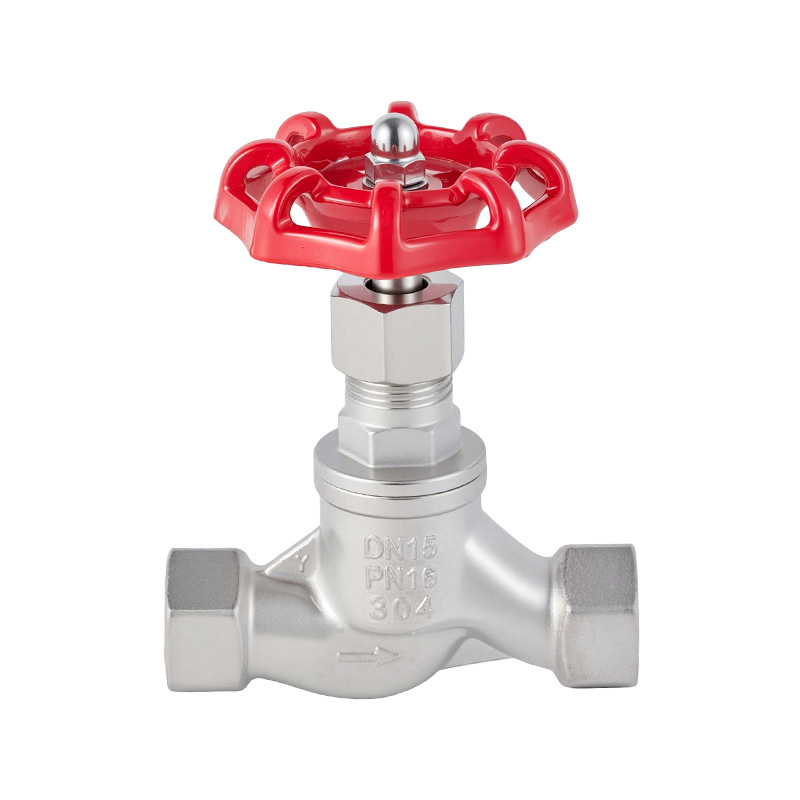

S Type Threaded Globe Valve

S Type Threaded Globe Valve is a globe valve designed for conventional civil and industrial threaded pipeline systems. It adopts an integral S-type streamlined valve body structure with standard internal threaded connections at both ends, providing a practical solution for pipeline shut-off and flow control. The threaded connection requires no welding, allowing straightforward installation and firm positioning while maintaining a compact configuration for standard piping applications.

The integral S-type body provides a stable valve structure, while the internal threaded ends allow convenient disassembly during pipeline renovation, inspection, or maintenance. Compared with welded connection methods, the threaded design simplifies installation and modification work, making the valve suitable for both new pipeline projects and existing system upgrades. Its configuration supports convenient valve replacement and maintenance where standard threaded connections are used.

S Type Threaded Globe Valve is suitable for civil plumbing, water supply, industrial process pipelines, pipeline renovation, and maintenance applications requiring threaded shut-off and flow control. OEM and ODM services are available to support customized valve sizes, thread standards, materials, sealing configurations, operating methods, and other project-specific requirements.

Contact Us
PREV：Forged Steel Globe ValveNEXT：B Type Threaded Globe Valve
  • Specification
  • Purchasing Information
  • Contact Us

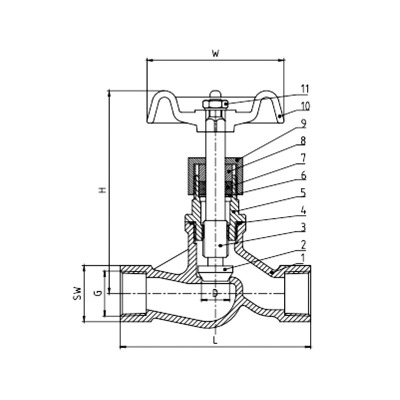

Material List

No. PARTS MATERIAL
1 Body CF8
2 Disc CF8
3 Stem SS304
4 Gasket PTFE
5 Cap CF8
6 Flat gasket SS304
7 Filler PTFE
8 Gland SS304
9 Gland nut CF8
10 Hand wheel IRON
11 Nut SS

Dimensions

SIZE L D W H
1/2" 88 15 64 100
3/4" 98 18 64 110
1" 116 20 71 120
1 1/4" 133 27 96 130
1 1/2" 164 34 96 150
2" 189 40 107 165

The dimensions above are for reference only.

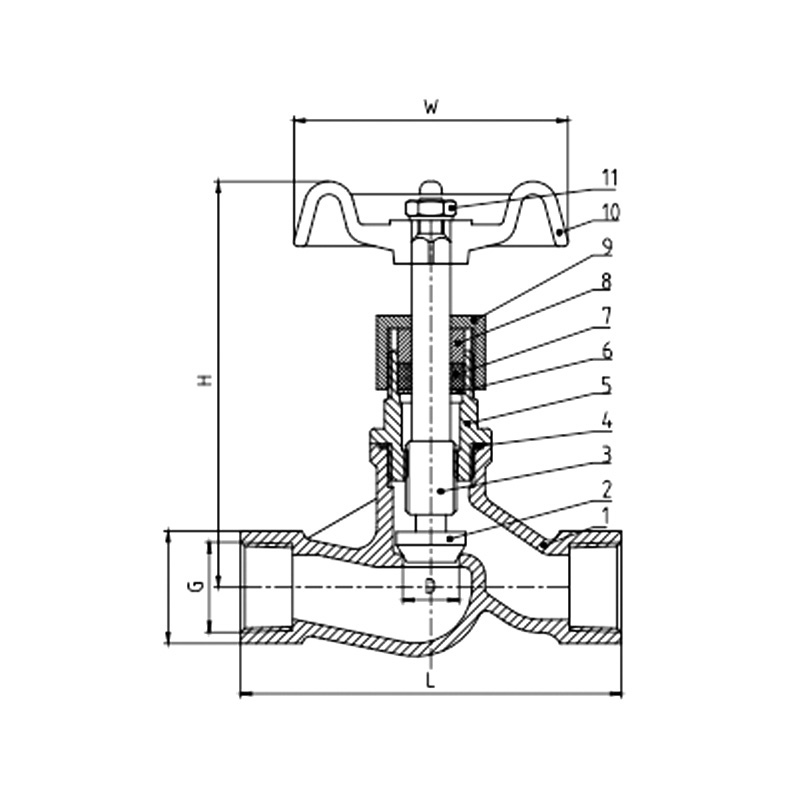

Material List

No. PARTS MATERIAL
1 Body CF8
2 Disc CF8
3 Stem SS304
4 Gasket PTFE
5 Cap CF8
6 Flat gasket SS304
7 Filler PTFE
8 Gland SS304
9 Gland nut CF8
10 Hand wheel IRON
11 Nut SS

Dimensions

SIZE L D W H
1/2" 88 15 64 100
3/4" 98 18 64 110
1" 116 20 71 120
1 1/4" 133 27 96 130
1 1/2" 164 34 96 150
2" 189 40 107 165

The dimensions above are for reference only.
