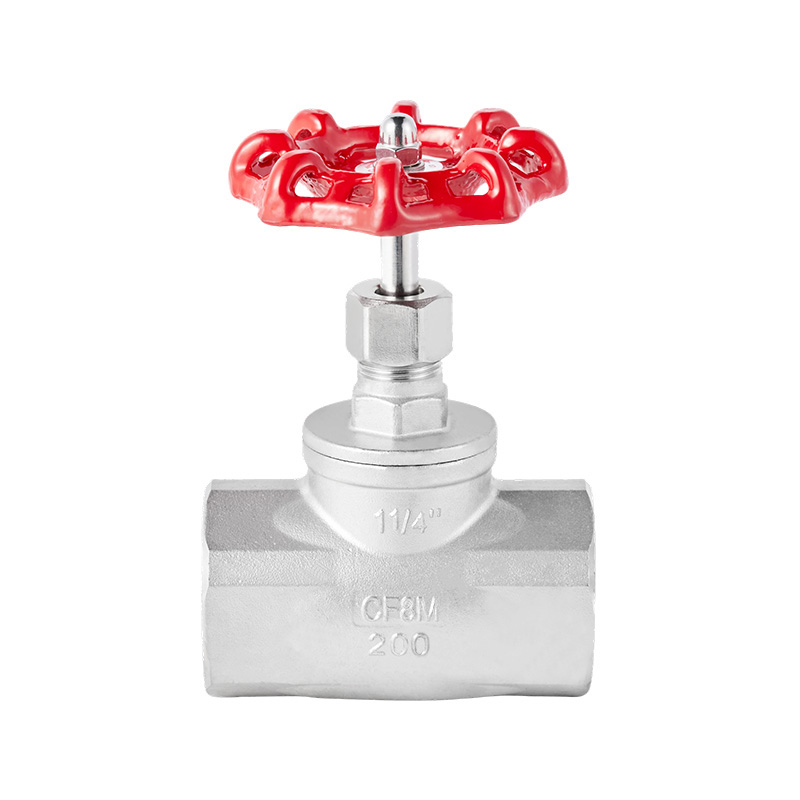

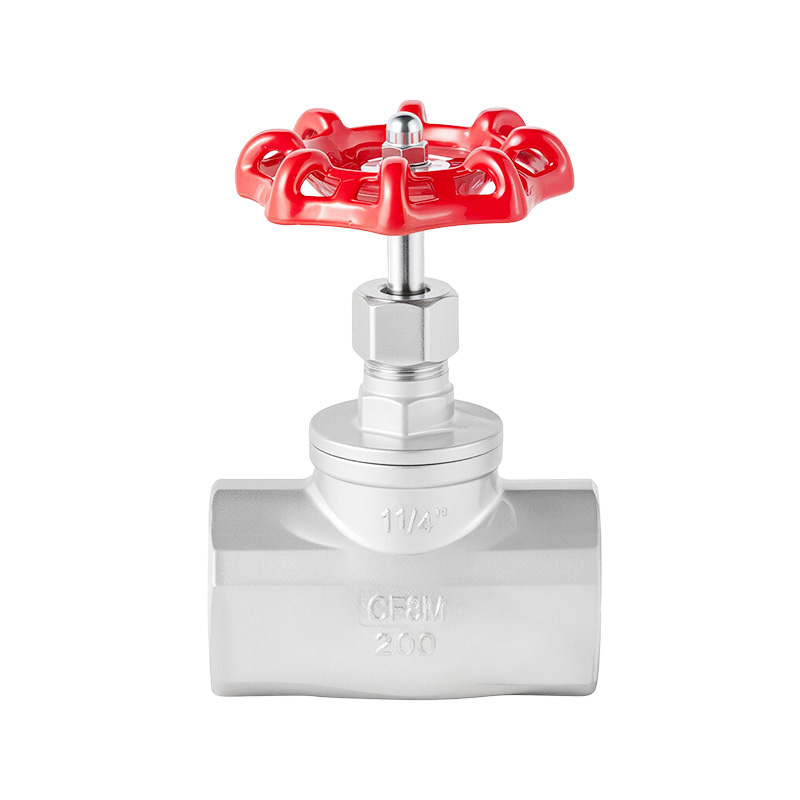

B Type Threaded Globe Valve

The threaded globe valve features a standardized threaded connection design that eliminates the need for complex welding or bolting; installation and removal can be performed manually, thereby significantly saving construction time and labor costs.

PREV：S Type Threaded Globe Valve NEXT：American Standard Globe Valve

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body

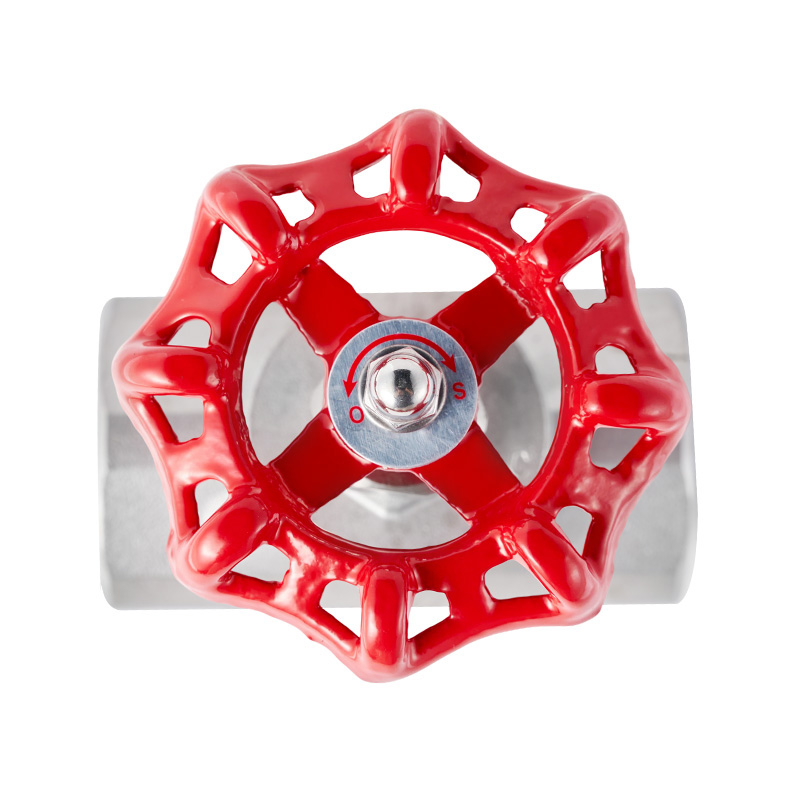

Hand Wheel-operated
Thread standard:
NPT,BSP,BSPT,DIN259/2999,Rc,Rp
Working pressure:1.6MPa
Applicable temperature:
-20°C~150°C(280°C)
Applicable Medium:Water,oil,gas Etc

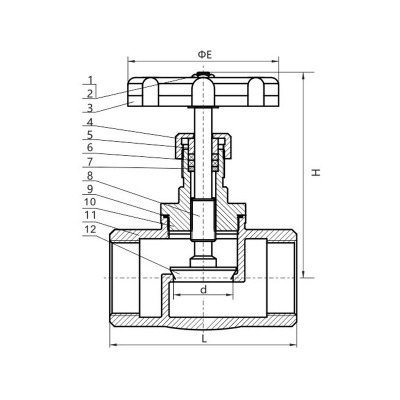

Main parts and materials

ITEM	PART	MAIN MATERIAL

1	Nut	201 304

2	Gasket	201 304

3	Handwheel	KTH330-08

4	Tightening Bonnet	201 304
5	Gland	304 316
6	Stem Packing	PTFE RPTFE

7	Gasket	304 316

8	Stem	304 316

9	Sealing Ring	PTFE RPTFE

10	Bonnet	CF8 CF8M
11	Body	CF8 CF8M
12	Disc	304 316

Main dimensions

SIZE		d	L		H	ΦE
1/2"	DN15	15	60	65	100	65
3/4"	DN20	20	70	75	110	72
1"	DN25	25	80	85	120	79
1-1/4"	DN32	32	90	98	135	95
1-1/2"	DN40	40	104	115	155	95
2"	DN50	50	120	135	170	108
2-1/2"	DN65	65	164		220	160
3"	DN80	80	189		/	160

The dimensions above are for reference only.
