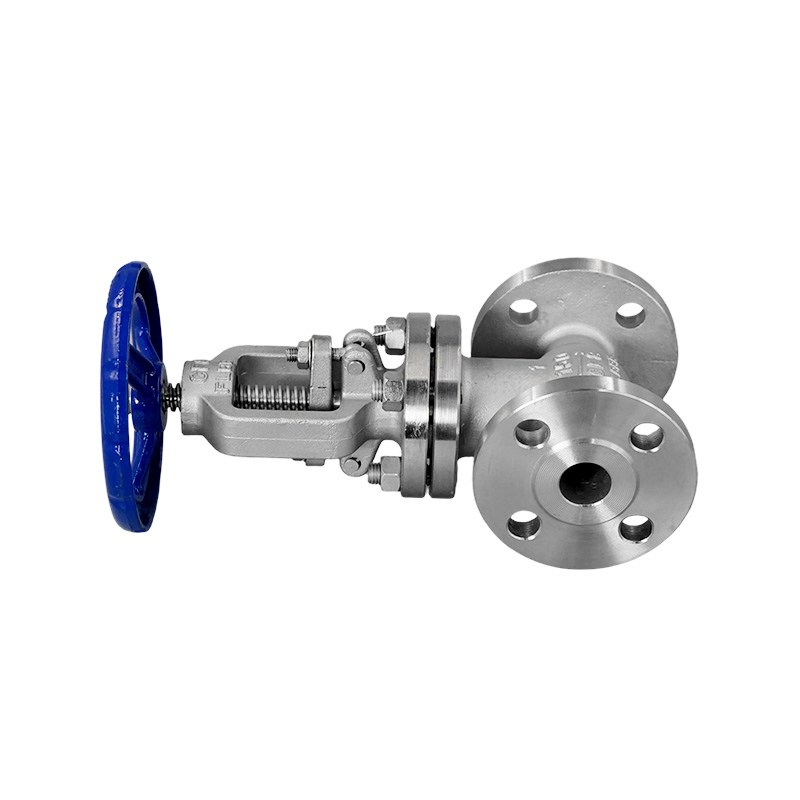

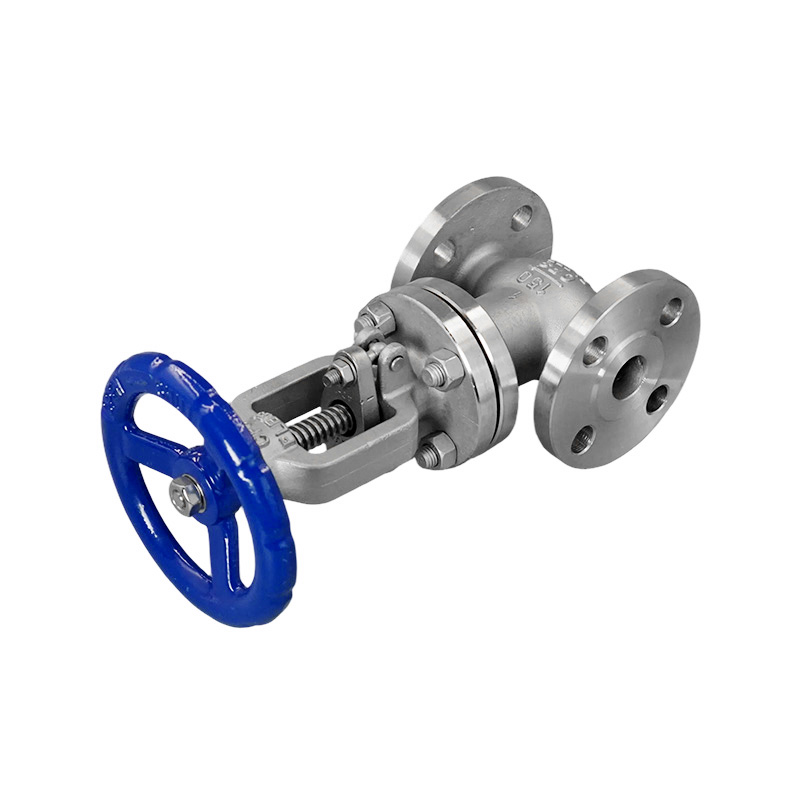

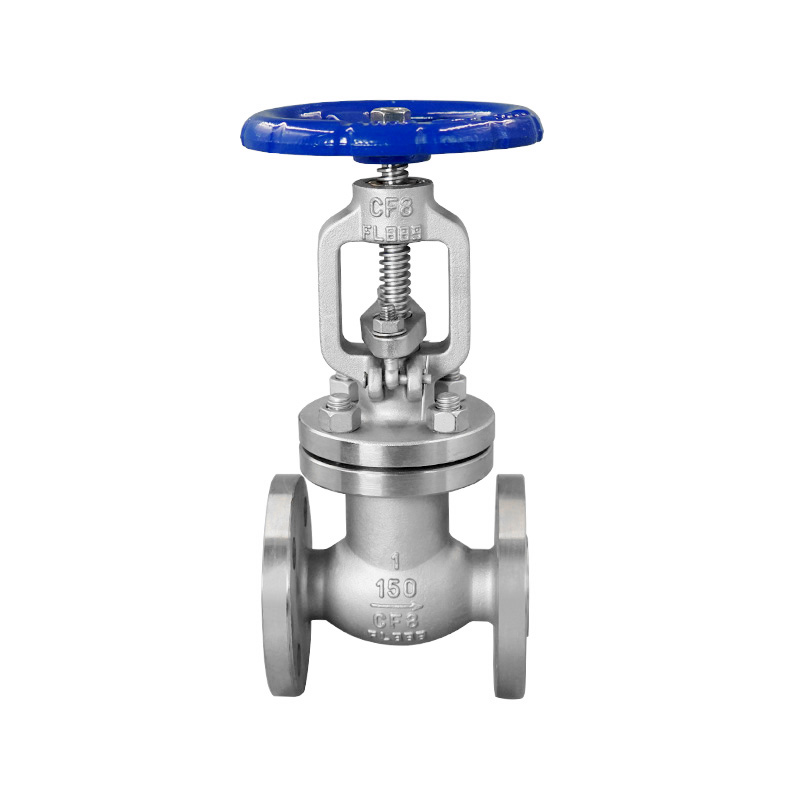

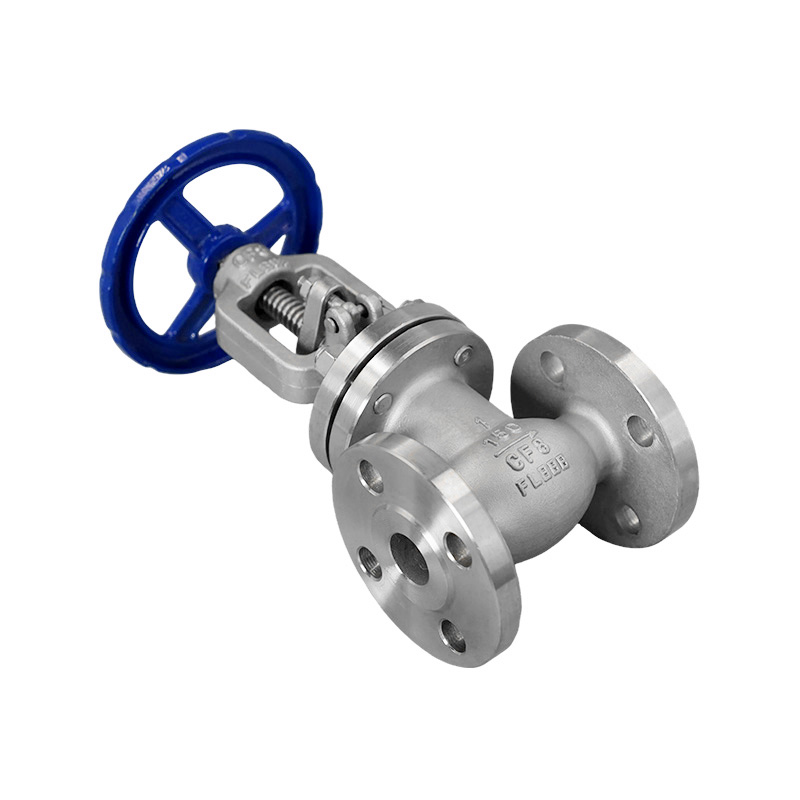

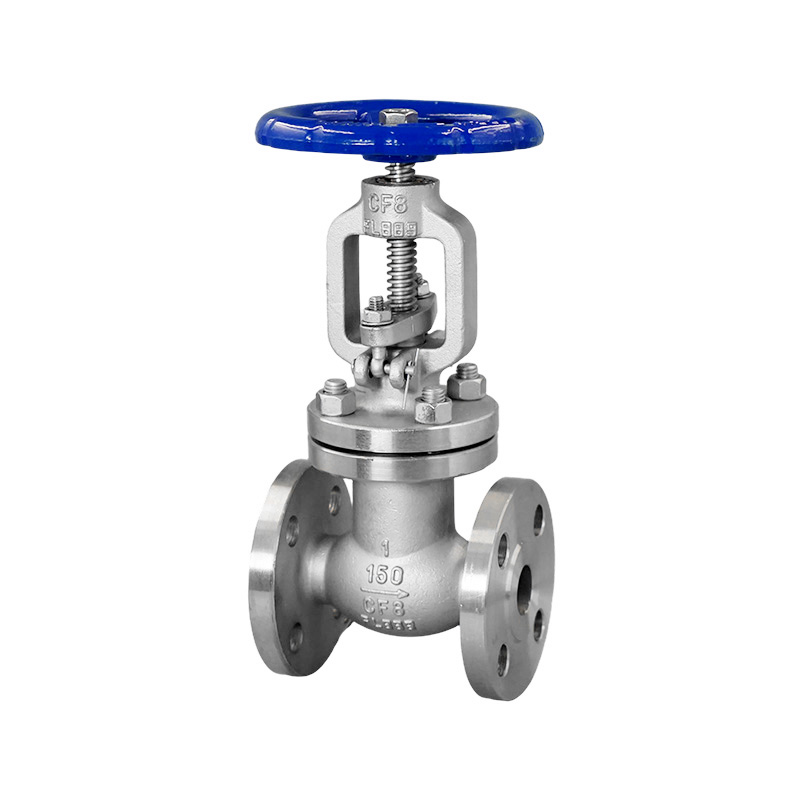

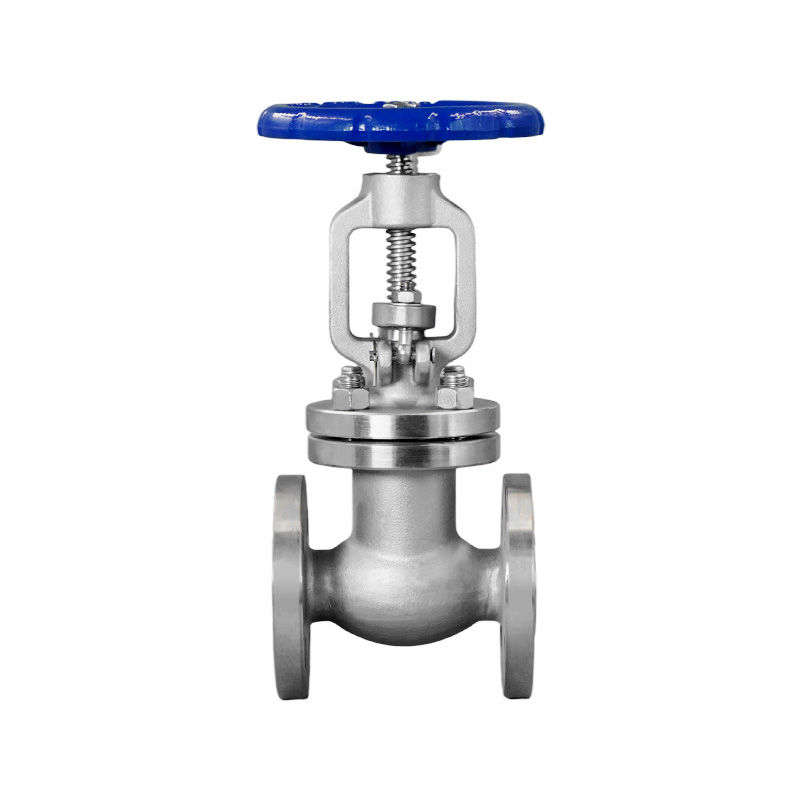

American Standard Globe Valve

American Standard Globe Valve is a flanged globe valve designed and manufactured in accordance with American ANSI standards for industrial pipeline flow control. It uses a flanged connection and controls medium shut-off and flow rate through the vertical movement of the valve disc. The globe valve structure provides a practical solution for pipeline applications requiring both flow isolation and flow regulation.

The flanged-end design follows ASME B16.5 and ANSI B16.5 standards, supporting compatibility with corresponding American-standard piping systems. The valve disc moves vertically against the valve seat, allowing the flow passage to be adjusted according to operating requirements. Testing and inspection are carried out according to API 598 to support quality control and valve performance verification.

American Standard Globe Valve is suitable for industrial process piping, water systems, chemical processing, oil and gas applications, power generation, and other pipeline systems requiring shut-off and flow control. OEM and ODM services are available to support customized valve sizes, pressure ratings, materials, flange configurations, operating methods, and other project-specific requirements.

Contact Us
PREV：B Type Threaded Globe ValveNEXT：Flanged Globe Valve
  • Specification
  • Purchasing Information
  • Contact Us
Design Features:
Flanged ends:
ASME B16.5, ANSI B16.5
Test & inspection:
API 598

Main parts and materials

ITEM PART MAIN MATERIAL
1  Body CF8  CF3  CF8M  CF3M  WCB
2  Bonnet CF8  CF3  CF8M  CF3M  WCB
3  Disc CF8  CF3  CF8M  CF3M  WCB
4  Stem F304 F304L F316 F316L 2Cr13
5  Stem Nut Copper Alloy
6  Packing PTFE Flexible Graphite
7  Gasket PTFE Spiral Wound Gasket
8  Gland CF8  CF3  CF8M  CF3M  WCB
9  Bolt B8 B7
10  Nut A194-8 2H
11  Handwheel QT400-17

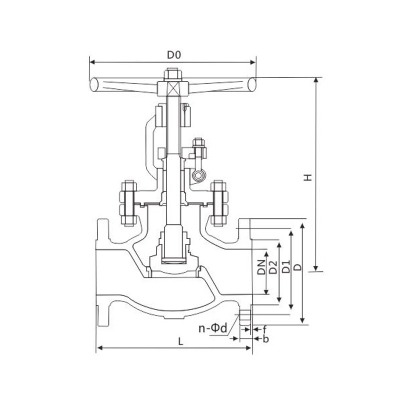

Main dimensions

SIZE Class 150LB                                          Class 300LB
L D D1 D2 b n-Φd D0 L D D1 D2 b n-Φd D0
1/2" 108  90  88.9  60.3  34.9  10  4-Φ16 120  152  95  95.3  66.7  34.9  14.7  4-Φ16 140
3/4" 117  100  98.6  69.9  42.9  10.9  4-Φ16 120  178  115  117.3  82.6  42.9  16.3  4-Φ19 140
1" 127  110  108  79.4  50.8  11.6  4-Φ16 120  203  125  123.9  88.9  50.8  17.9  4-Φ19 160
1-1/4" 140  115  117.3  88.9  63.5  13.2  4-Φ16 160  216  135  133.3  98.4  63.5  19.5  4-Φ19 200
1-1/2" 165  125  127  98.4  73  14.7  4-Φ16 160  229  155  155.4  114.3  73  21.1  4-Φ22 220
2" 203  150  152.4  120.7  92.1  16.3  4-Φ19 200  267  165  165.1  127  92.1  22.7  8-Φ19 240
2-1/2" 216  180  177.8  139.7  104.8  17.9  4-Φ19 220  292  190  190.5  149.2  104.8  25.9  8-Φ22 260
3" 241  190  190.5  152.4  127  19.5  4-Φ19 240  318  210  209.5  168.3  127  29.4  8-Φ22 280
4" 292  230  228.6  190.5  157.2  24.3  4-Φ19 300  356  255  254  200  157.2  32.2  8-Φ22 350
5" 356  255  254  215.9  185.7  24.3  8-Φ22 350  400  280  279.4  235  185.7  35.4  8-Φ22 350
6" 406  280  279.4  241.3  215.9  25.9  8-Φ22 350  444  320  317.5  269.9  215.9  37.0  12-Φ22 400
8" 495  345  342.9  298.5  269.9  29  8-Φ22 450  559  380  381  330.2  269.9  41.7  12-Φ25 500
10" 622  405  406.4  362  323.8  30.6  12-Φ25 500  622  445  444.5  387.4  323.8  48.8  16-Φ29 550
12" 698  485  482.6  431.8  381  32.2  12-Φ25 600  711  521  520.7  450.8  381  51.3  16-Φ32 600
14" 787  535  533.4  476.3  412.8  35.4  12-Φ29 700  838  584  584.2  514.4  413  54.4  20-Φ32 700
16" 914  595  596.9  539.8  469.9  37  16-Φ29 800  864  648  647.7  571.5  470  57.6  20-Φ35 800

The dimensions above are for reference only.
