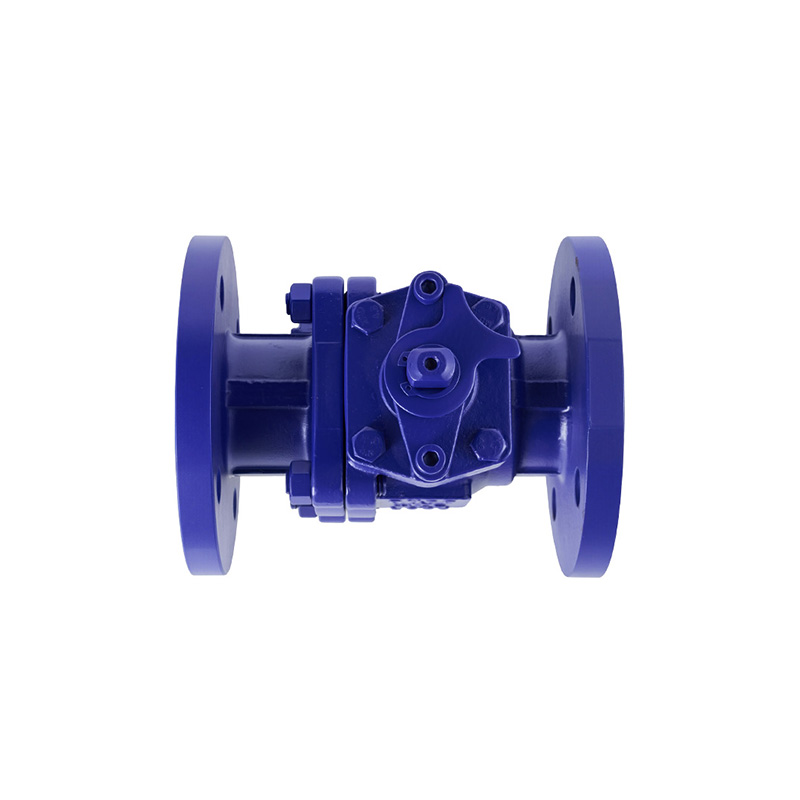

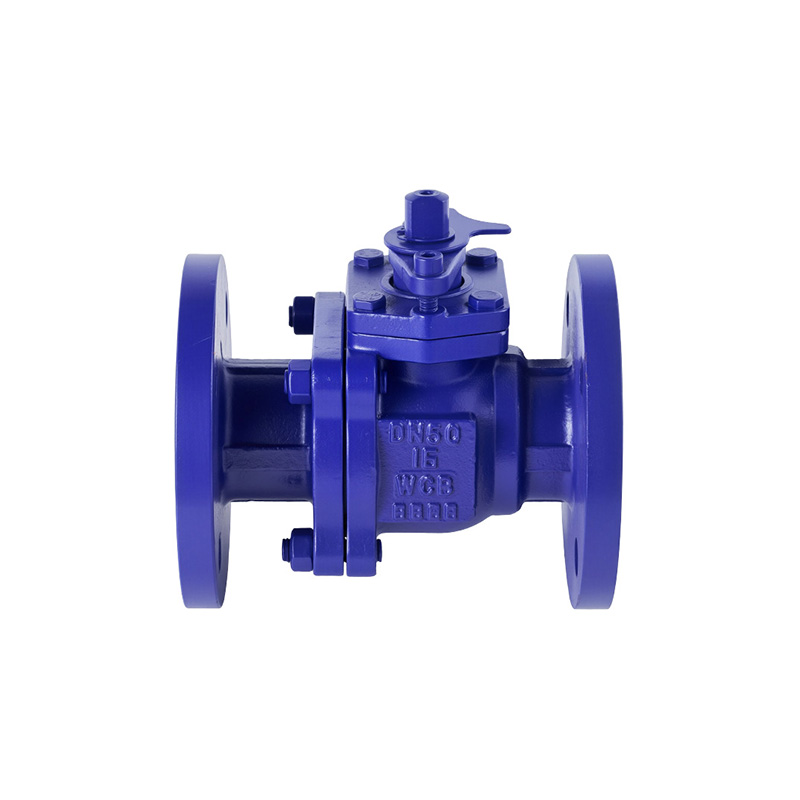

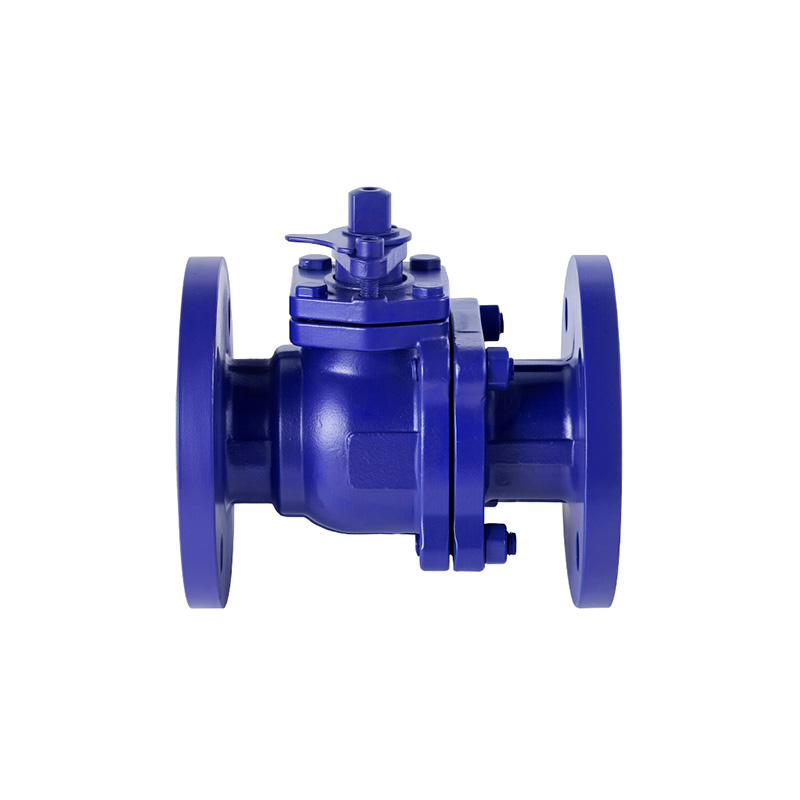

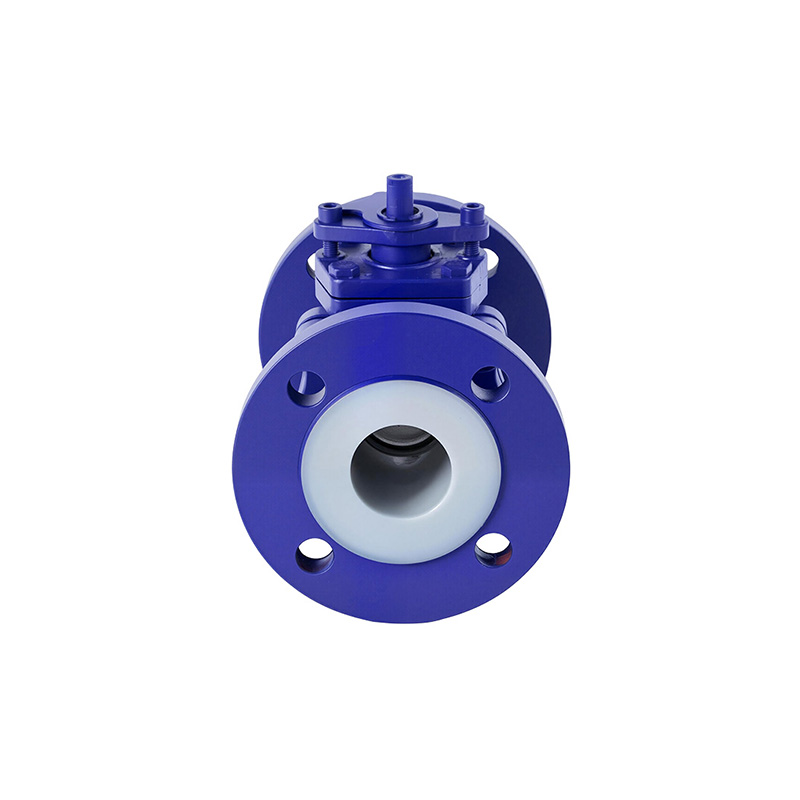

Fluorine Lined Ball Valve

PREV：Jacketed Ball Valve NEXT：3-Piece Flanged Ball Valve

Specification
About Zhongchi
Contact Us

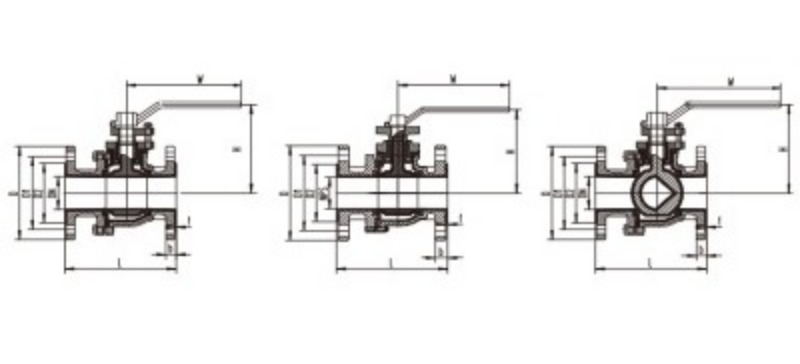

Nominal diameter		Main dimensions							Reference
DN	NPS	L	D	D1	D2	f	b	z-Φd	D0	H
PN1.6MPa
15	1/2	140	95	65	45	3	15	4-14	140	90
20	3/4	140	105	75	55	3	16	4-14	140	100
25	1	150	115	85	65	3	16	4-14	180	105
32	1 1/4	165	140	100	75	3	16	4-18	180	120
40	1 1/2	180	150	110	85	3	17	4-18	225	140
50	2	200	165	125	100	3	18	4-18	225	150
65	2 1/2	220	185	145	120	3	20	4-18	360	160
80	3	250	200	160	135	3	22	8-18	420	215
100	4	280	220	180	155	3	24	8-18	420	240
125	5	320	250	210	185	4	26	8-18	520	250
150	6	360	285	240	210	4	28	8-23	520	290
200	8	400/457	340	295	265	4	30	12-23	240	340
250	10	533	405	355	320	5	30	12-25	240	380
300	12	610	460	410	375	5	30	12-25	280	450

The dimensions above are for reference only.
