HC41X Stainless Steel Flanged Silent Lift Check Valve

Home / Products / Check Valve / HC41X Stainless Steel Flanged Silent Lift Check Valve

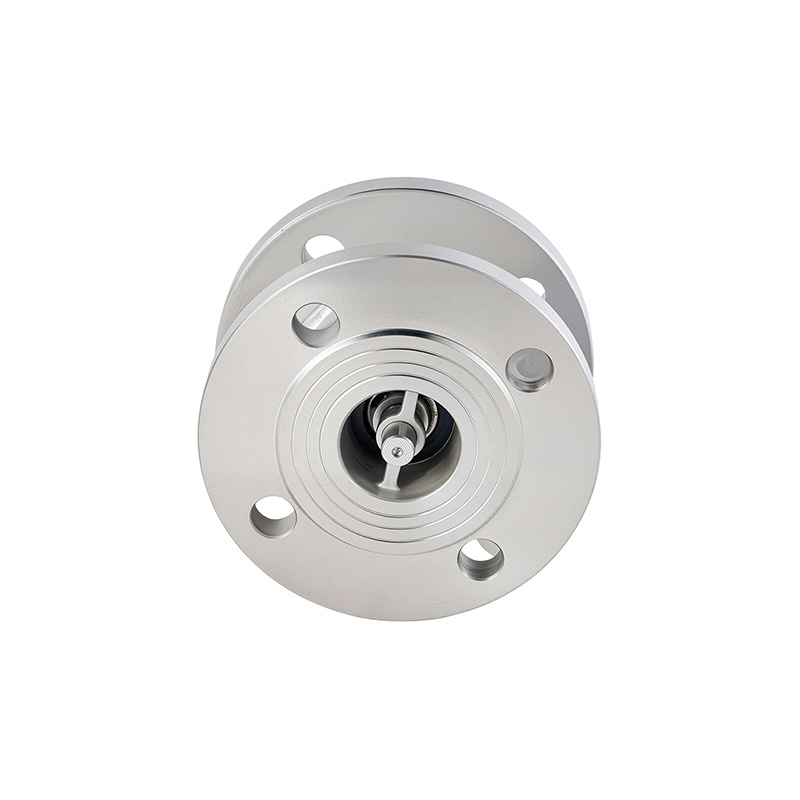

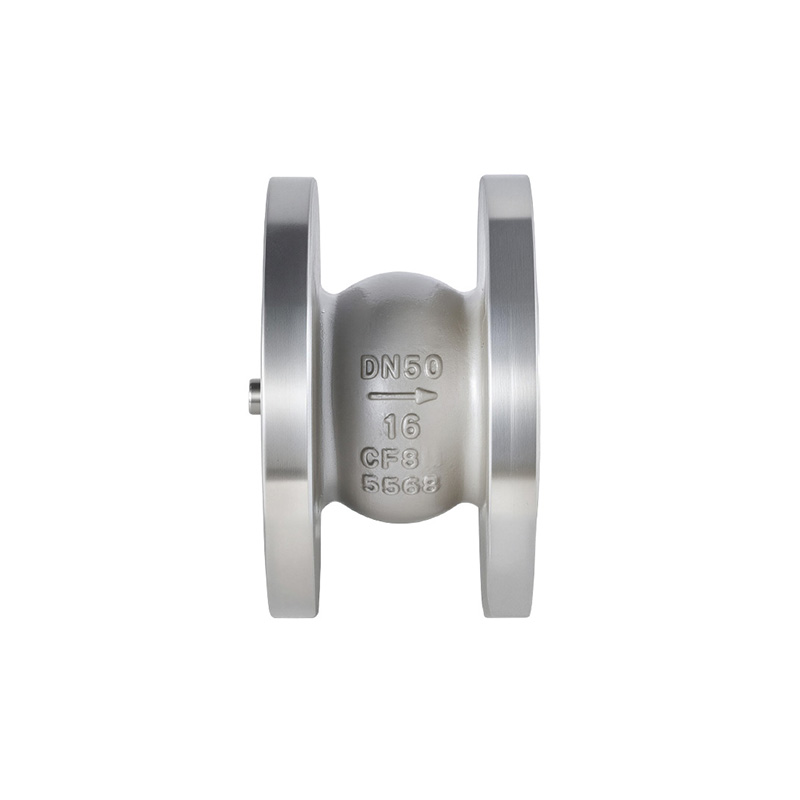

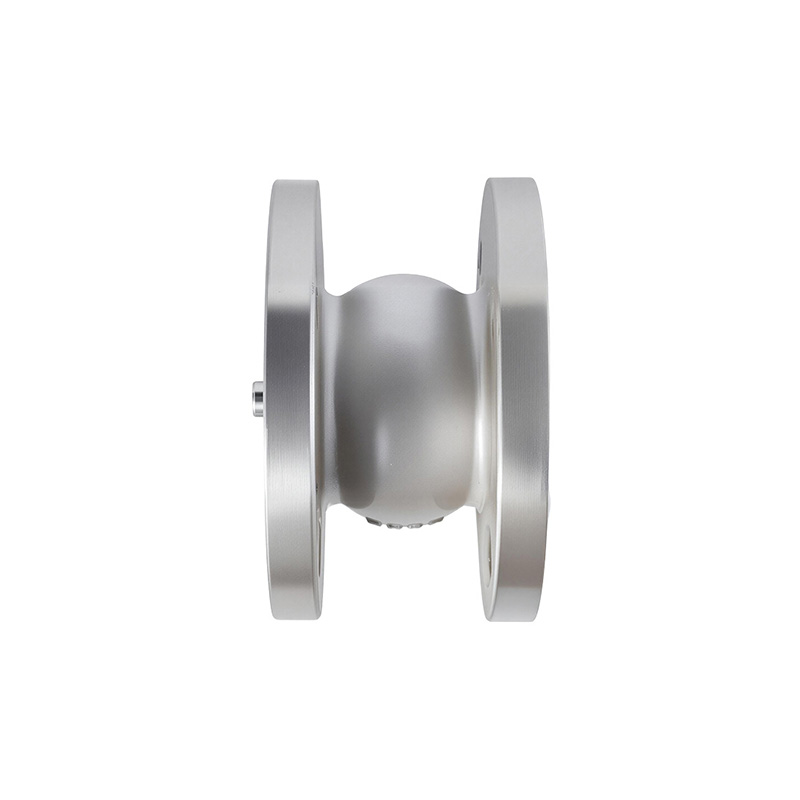

HC41X Stainless Steel Flanged Silent Lift Check Valve

The HC41X Silencing Check Valve is specifically designed for applications—such as pump outlets and water supply and drainage risers—that demand stringent standards regarding noise reduction, water hammer prevention, and sealing performance. Its valve disc features a soft rubber sealing surface, ensuring flexible contact with the valve seat during closure; this eliminates the harsh metallic impact typically associated with valve shut-off, thereby keeping closing noise levels below 40 decibels.

PREV：HC42X Vertical Silent Lift Check Valve NEXT：H76 Wafer Double-Disc Swing Check Valve

Specification
About Zhongchi
Contact Us

Nominal diameter	Length	Connection dimensions (standard values) Flange standard: Ministry of Chemical Industry 20592
Nominal diameter	Length	1.0MPa			1.6MPa			2.5MPa
mm	L	D	D1	n-d	D	D1	n-d	D	D1	n-d
40	97	150	110	4-18	150	110	4-18	150	110	4-18
50	100	165	125	4-18	165	125	4-18	165	125	4-18
65	121	185	145	8-18	185	145	8-18	185	145	8-18
80	146	200	160	8-18	200	160	8-18	200	160	8-18
100	161	220	180	8-18	220	180	8-18	235	190	8-22
125	181	250	240	8-18	250	240	8-18	270	220	8-26
150	202	285	240	8-22	285	240	8-22	300	250	8-26
200	233	340	295	12-22	340	295	12-22	360	310	12-22
250	252	395	350	12-22	405	355	12-26	425	370	12-30
300	305	445	400	12-22	460	410	12-26	485	430	16-30
350	351	505	460	16-22	520	470	16-26	555	490	16-33
400	407	565	515	16-26	580	525	16-30	620	550	16-36
450	433	615	565	20-26	640	585	20-30	670	600	20-36
500	450	670	620	20-26	715	650	20-33	730	660	20-36

The dimensions above are for reference only.
