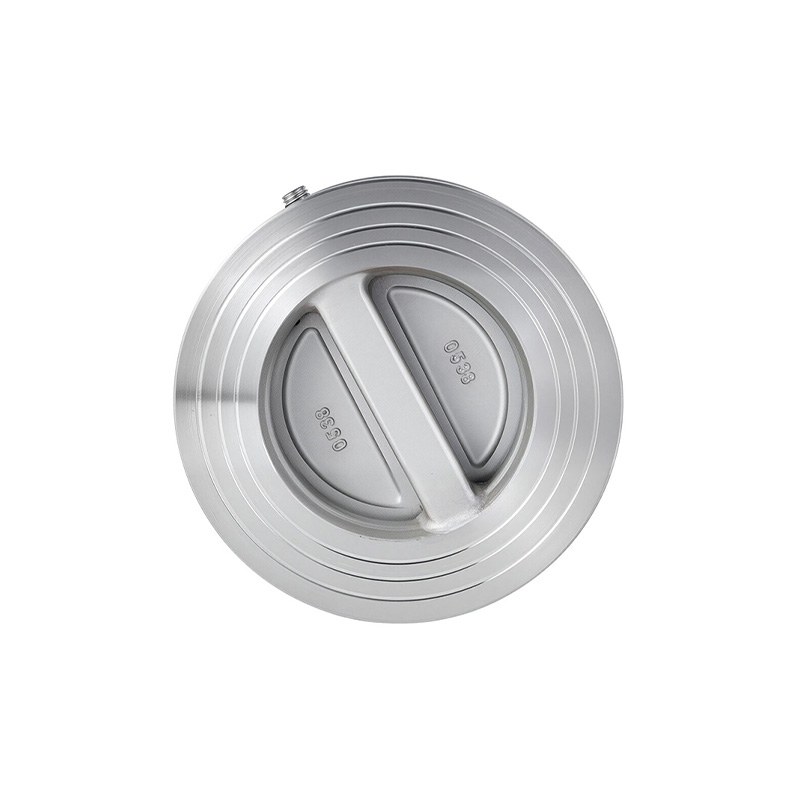

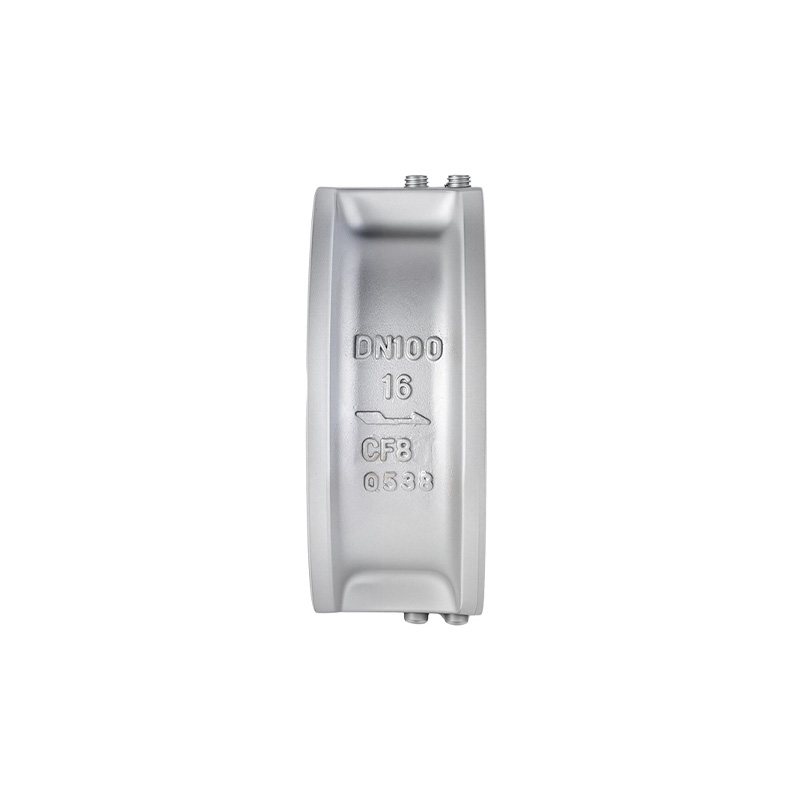

H76 Wafer Double-Disc Swing Check Valve

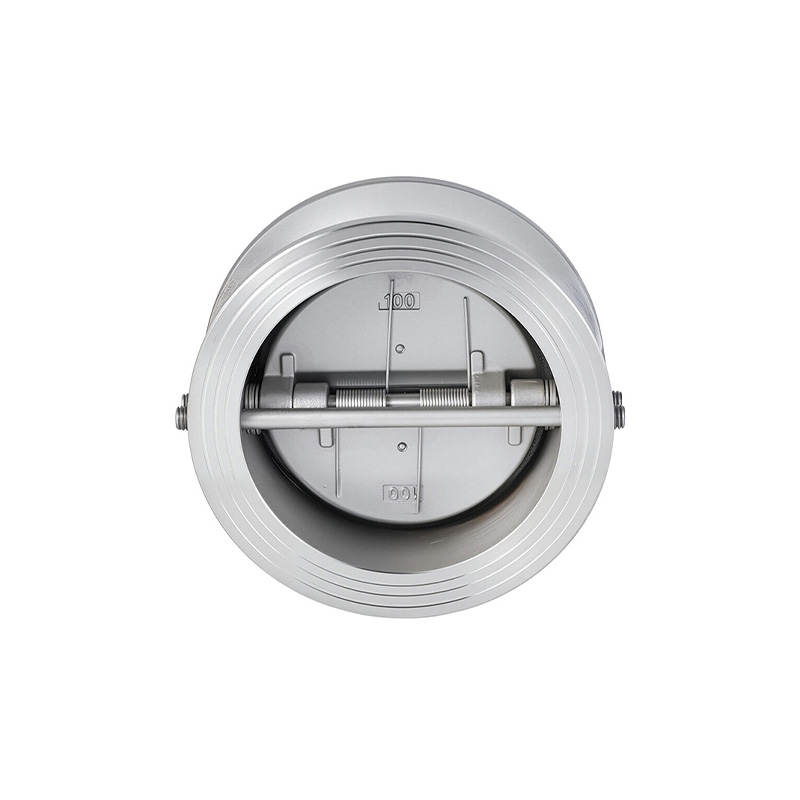

The H76 series is specifically engineered for high-flow pipelines—DN40 and above—where installation space is restricted. It features a dual-disc symmetrical swing mechanism combined with an ultra-thin wafer-style mounting design, offering three core advantages: adaptability to large pipe diameters, extremely low flow resistance, and smooth, stable opening and closing operation. The valve discs consist of a pair of symmetrical, curved plates that pivot synchronously around a central dual-pin shaft; once fully open, the discs sit flush against the inner wall of the valve body, ensuring an unobstructed flow path.

PREV：HC41X Stainless Steel Flanged Silent Lift Check Valve NEXT：H74 Wafer Single-Disc Swing Check Valve

Specification
About Zhongchi
Contact Us

Design Features:
Test & inspection:
GB/T 13927-2022, API598

Main parts and materials

ITEM	PART	MAIN MATERIAL
1	Body	CF8 CF3 CF8M CF3M WCB
2	Disc	CF8 CF3 CF8M CF3M WCB
3	Pressure ring	CF8 CF3 CF8M CF3M WCB
4	Spring Washer	Stainless Steel

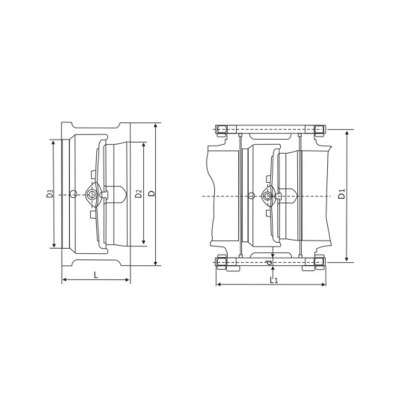

Main dimensions(PN10-PN16)

DN	L	D	D3	D2
40	60	92	46	41
50	60	105	75	52
65	67	127	92	66
80	73	140	92	82
100	73	160	112	102
125	86	199	145	125

150	98	218	169	152

200	127	272	212	201

250	146	328	259	250

300	181	380	310	302

350	184	438	368	348

400	191	488	419	400

450	203	542	455	450
500	219	597	505	500
600	222	698	605	600
700	305	811	700	698
800	305	918	800	796
900	368	1018	903	898
1000	432	1124	1055	1050
1200	524	1340	1205	1200

The dimensions above are for reference only.
