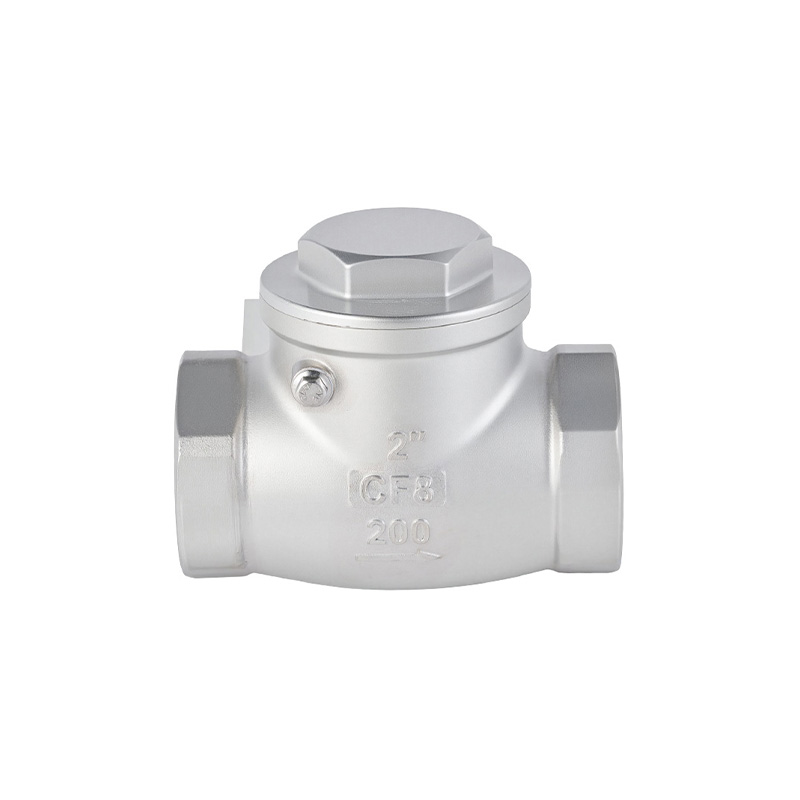

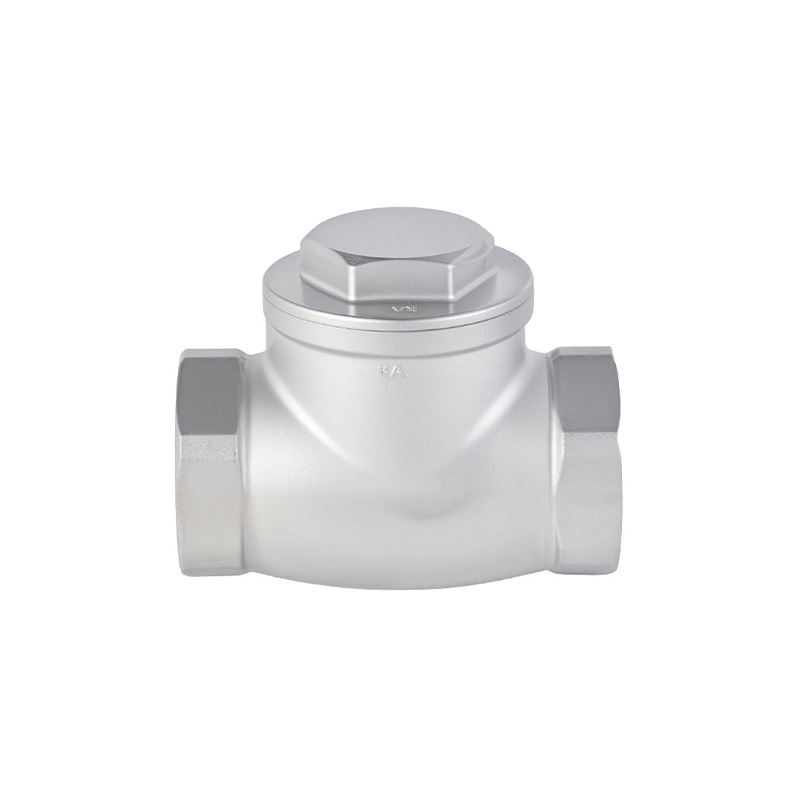

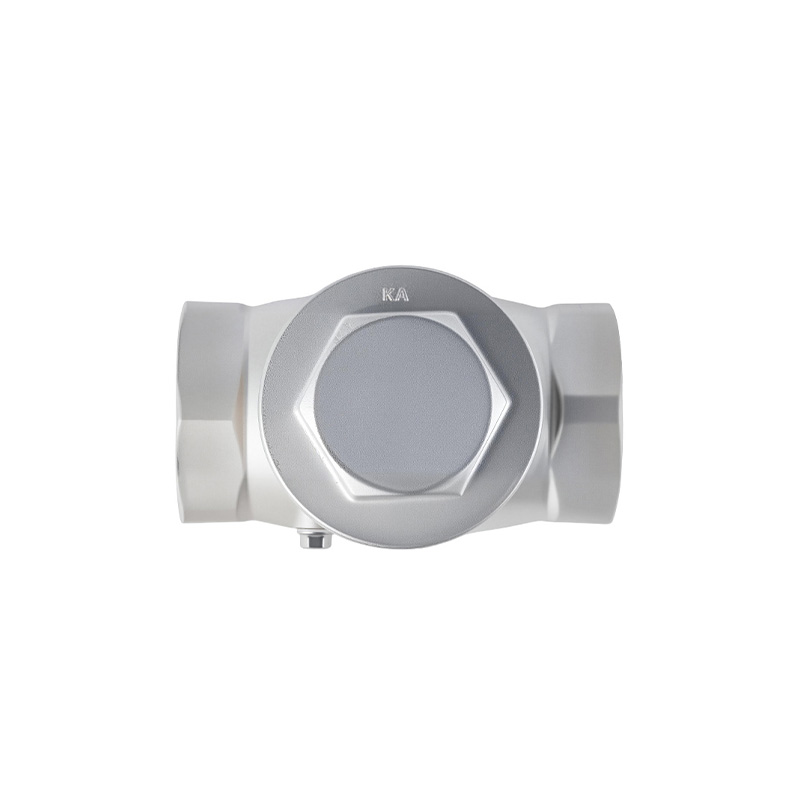

H14 Threaded Swing Check Valve

The H14 Threaded Swing Check Valve is a small-bore, internally threaded one-way valve that opens and closes automatically, actuated by the pressure of the medium and the weight of the valve disc; it permits the flow of the medium in only one direction, thereby preventing backflow.

PREV：H12 Threaded Vertical Lift Check Valve NEXT：HC42X Vertical Silent Lift Check Valve

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body
Thread standard:
NPT,BSP,BSPT,DIN259/2999,Rc,Rp
Working pressure:1.6MPa
Applicable temperature:
-20°C~150°C(280°C)

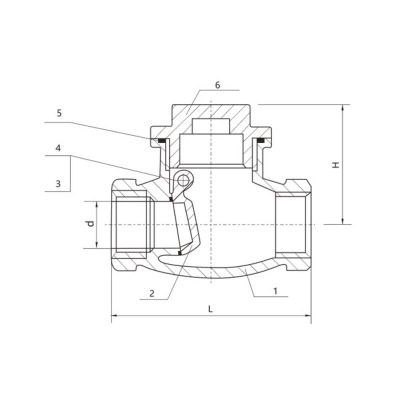

Main parts and materials

ITEM

PART

MAIN MATERIAL

Body

CF8 CF8M

Disc

CF8 CF8M

Plug

304 316

Sealing Ring

PTFE RPTFE

Sealing Ring

PTFE RPTFE

Bonnet

CF8 CF8M

Main dimensions

SIZE		d	L		H
1/2"	DN15	15	63		42
3/4"	DN20	20	72	78	48
1"	DN25	25	86		52
1-1/4"	DN32	32	98	102	60
1-1/2"	DN40	40	110	113	65
2"	DN50	50	130		72
2-1/2"	DN65	63	165		95
3"	DN80	78	190		/

The dimensions above are for reference only.
