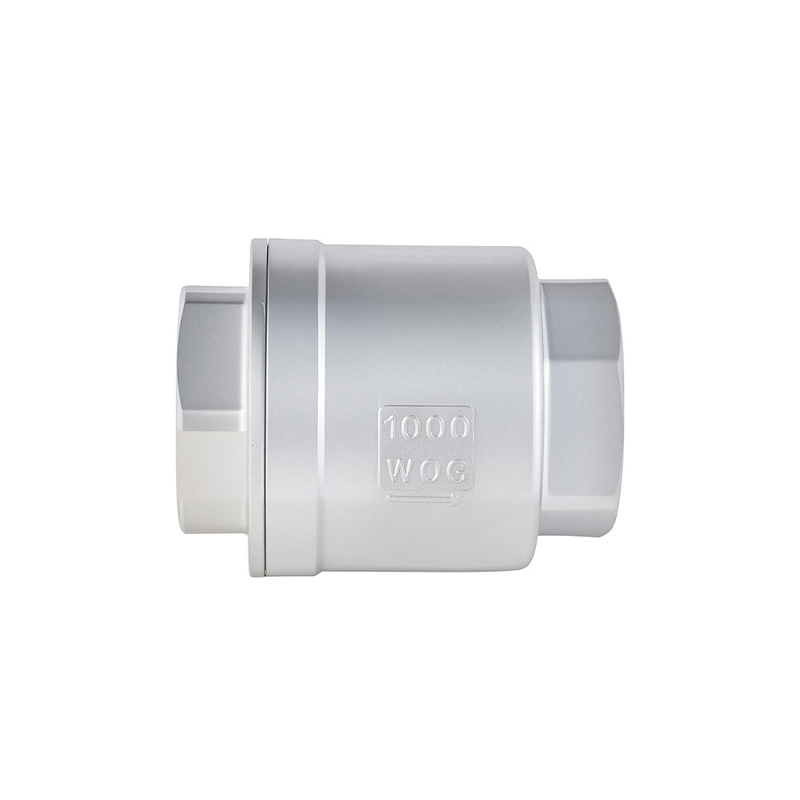

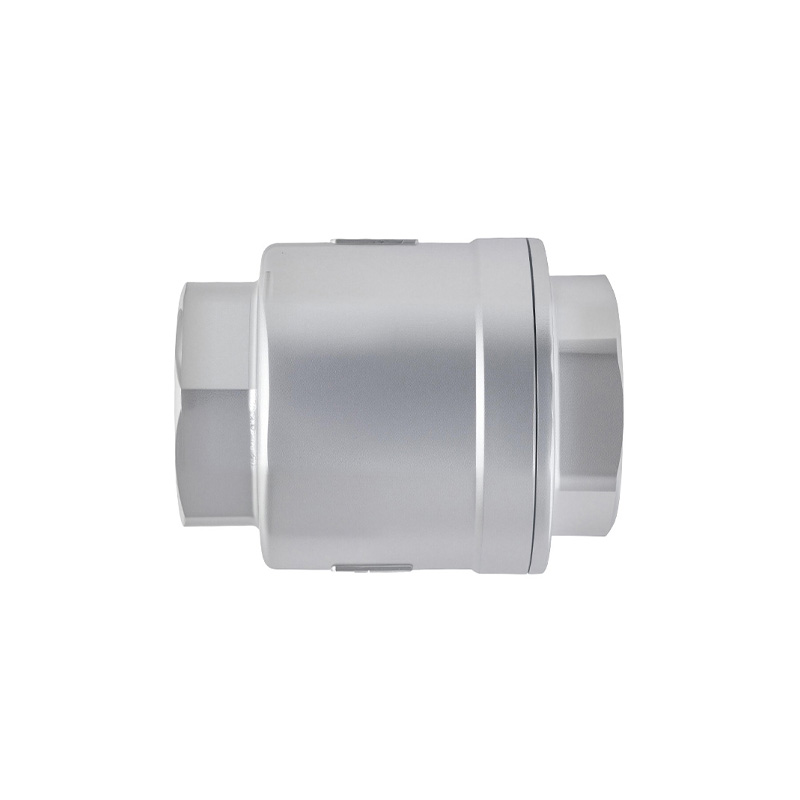

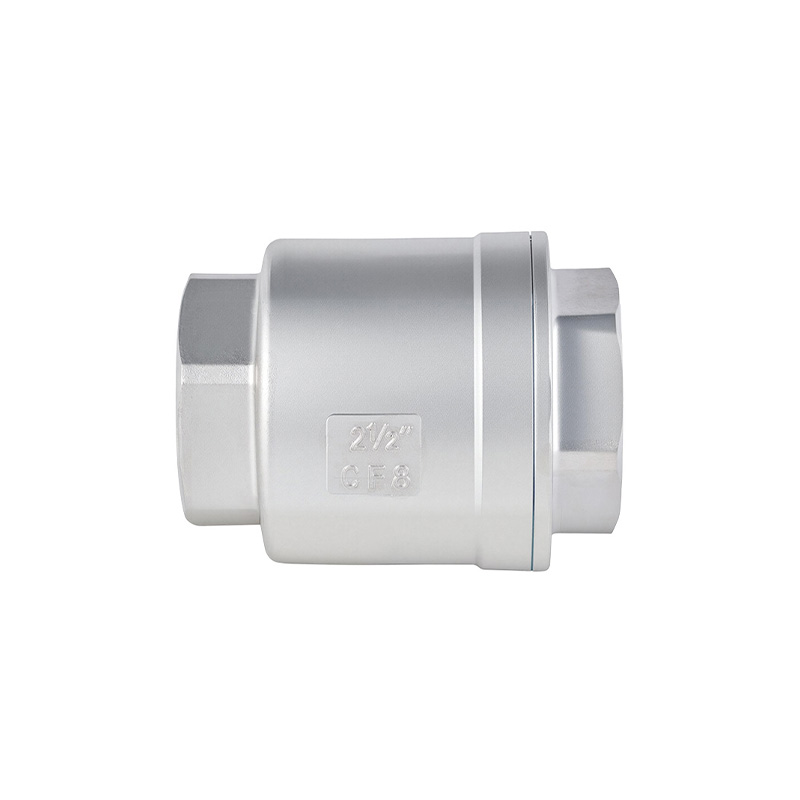

H12 Threaded Vertical Lift Check Valve

The H12 Threaded Vertical Lift Check Valve features an internally threaded connection combined with a vertical lift disc structure. It relies on the pressure of the medium—augmented by the weight of the valve disc itself—to achieve automatic opening and closing, offering the dual advantages of precise compatibility with vertical pipelines and convenient threaded installation.

PREV：Wafer-Type Check Valve NEXT：H14 Threaded Swing Check Valve

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body
Thread standard:
NPT,BSP,BSPT,DIN259/2999,Rc,Rp
Working pressure:1.6 MPa
Applicable temperature:
-20°C~150°C(280°C)

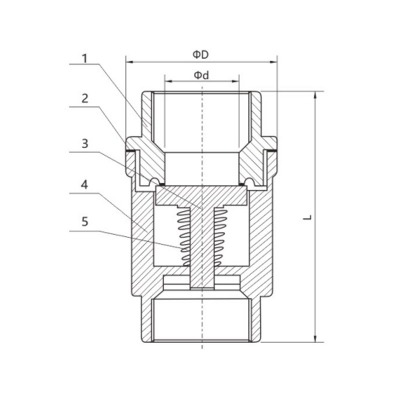

Main parts and materials

ITEM

PART

MAIN MATERIAL

Bonnet

CF8 CF8M

Sealing Ring

PTFE RPTFE

Disc

CF8 CF8M

Body

CF8 CF8M

Spring

304 316

Main dimensions

SIZE		Φd	L		φD
1/2"	DN15	15	57	60	36.5
3/4"	DN20	20	66	70	43

1"	DN25	25	78	82	51

1-1/4"	DN32	32	87	92	60

1-1/2"	DN40	40	105		72

2"	DN50	50	120		84

2-1/2"	DN65	65	148		/

3"	DN80	80	170		/

The dimensions above are for reference only.
