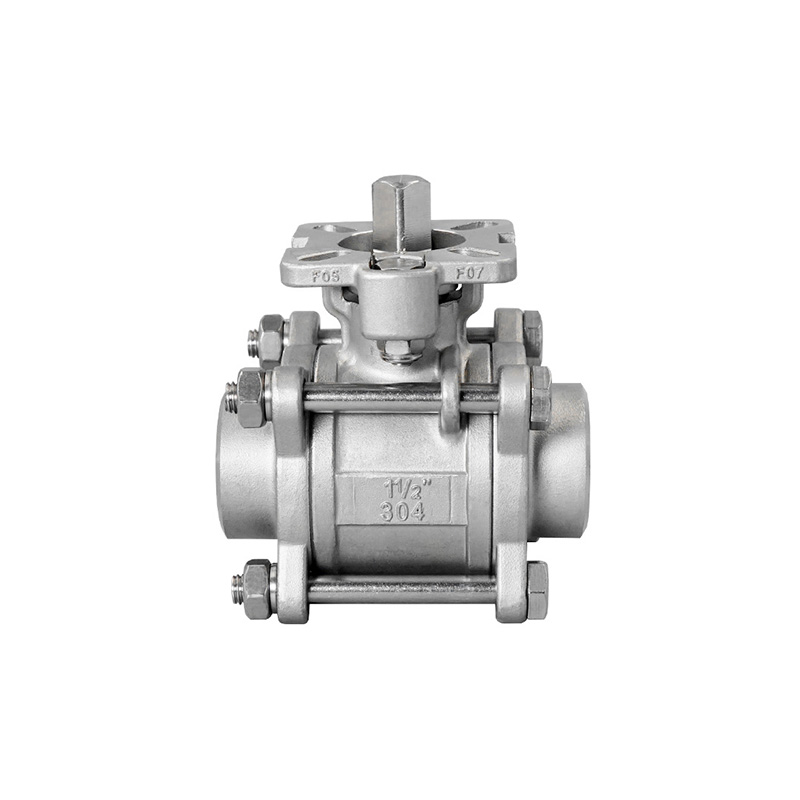

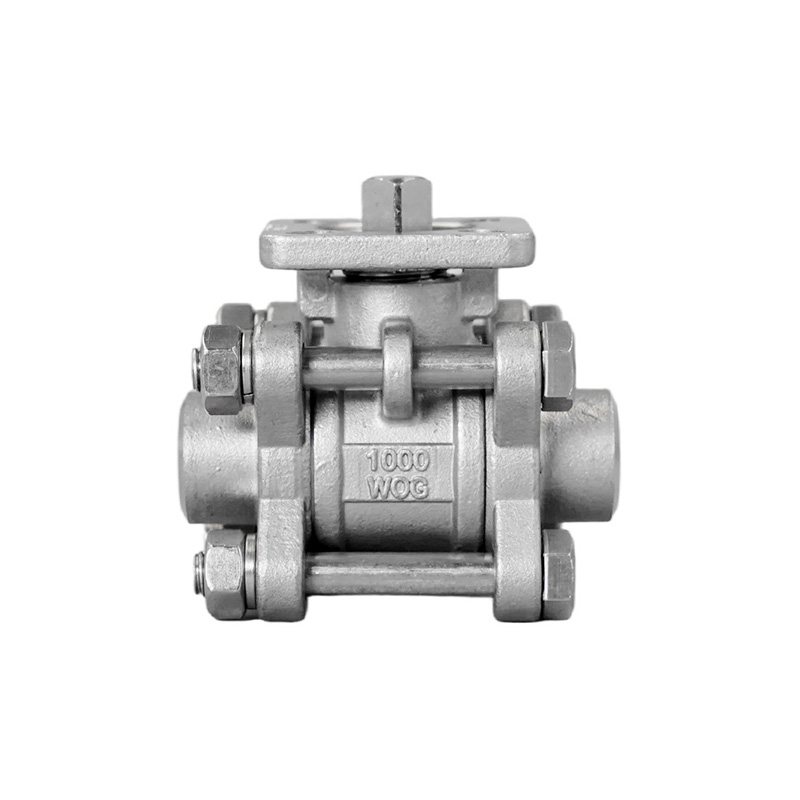

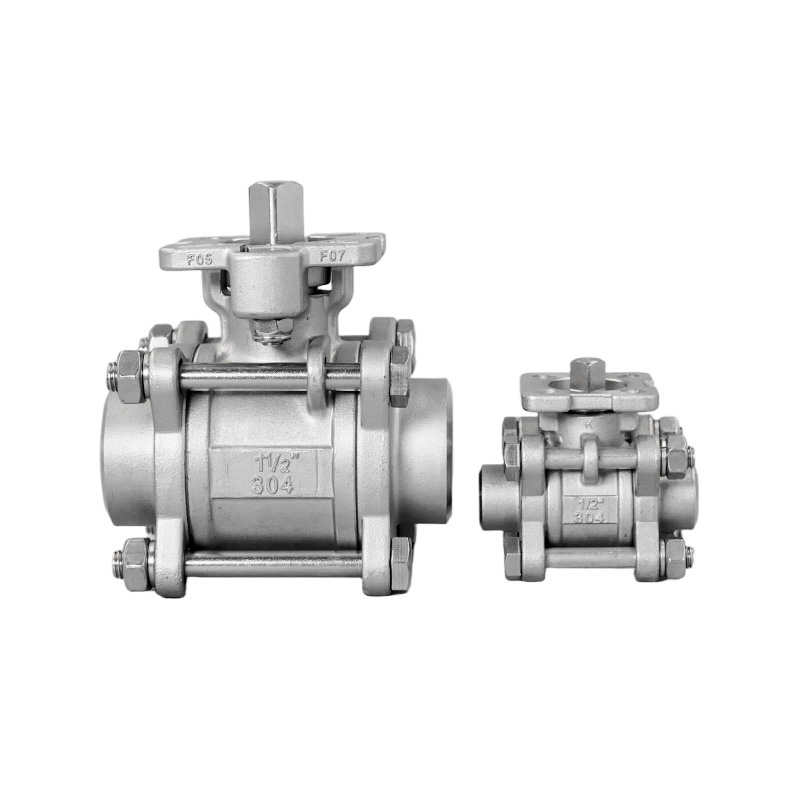

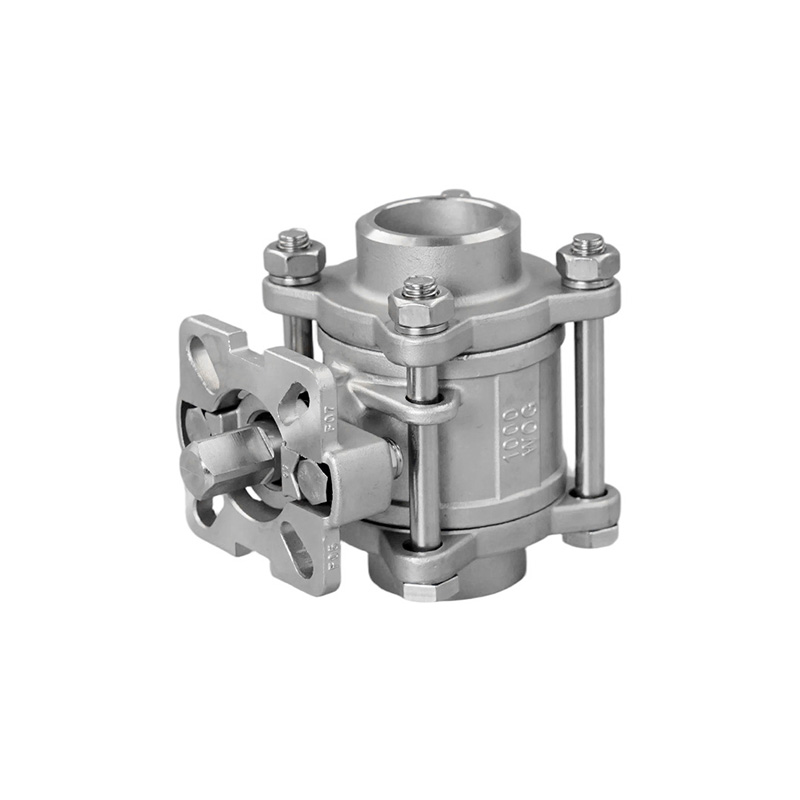

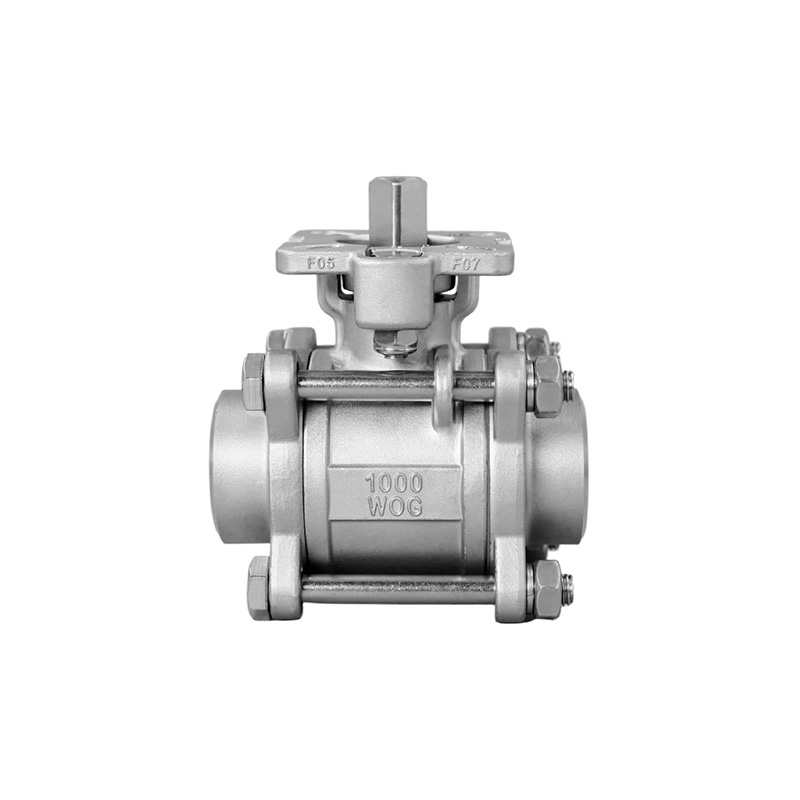

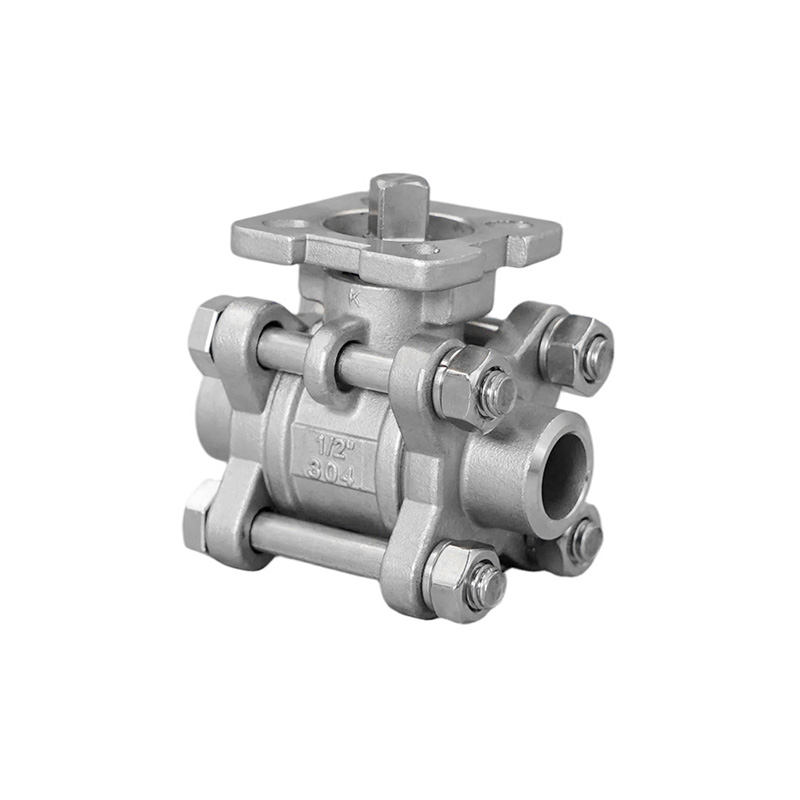

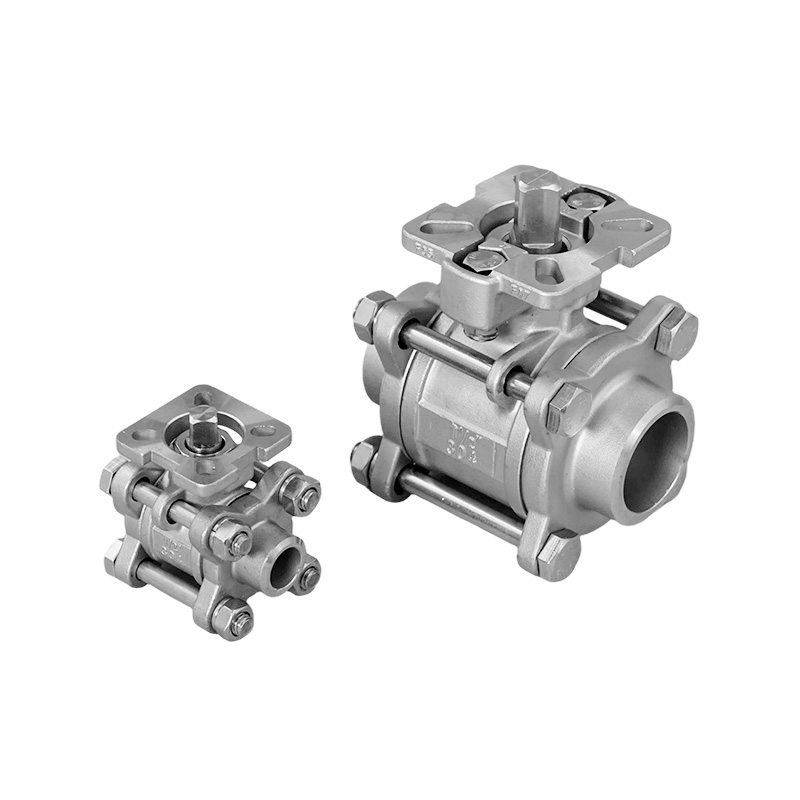

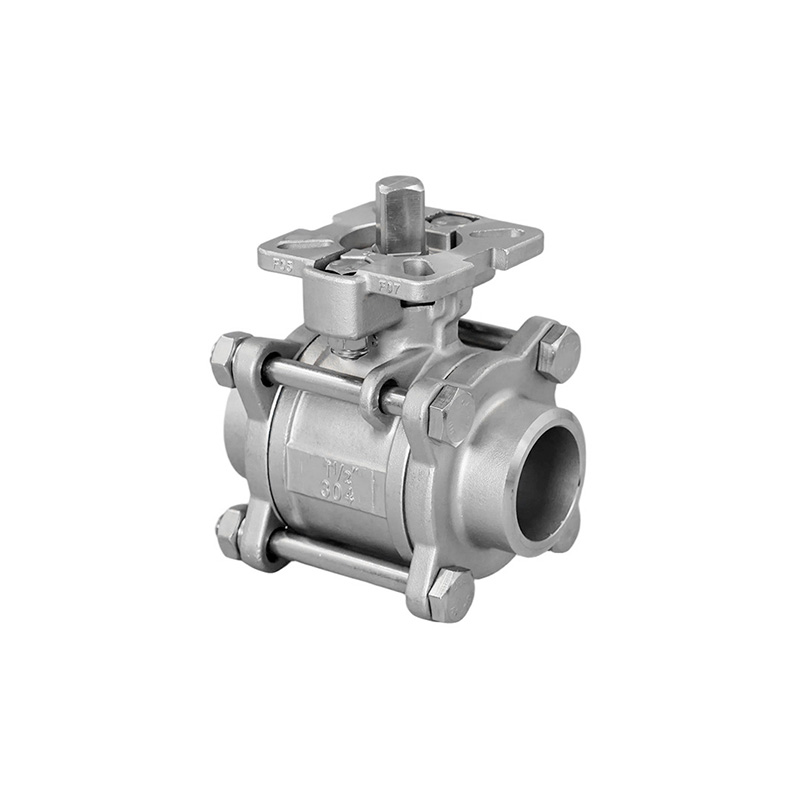

Three-Piece High Platform Welded Ball Valve

Home / Products / Ball Valve / Welded Ball Valve / Three-Piece High Platform Welded Ball Valve

Three-Piece High Platform Welded Ball Valve

Contact Us
PREV：No previous articleNEXT：3-Piece Extended-Weld Ball Valve
  • Specification
  • About Zhongchi
  • Contact Us
Design Features:
Investment Casting Body
Blow-out Proof Stem
Full port design
Lockable handle available as an option
Thread standard:
NPT, BSP, BSPT, DIN259/2999, Rc, Rp
Working pressure: 1.6~2.5MPa
Applicable temperature:
-20°C~120°C(250°C)
Applicable Medium: Water, oil, gas, Etc

Main parts and materials

ITEM PART MAIN MATERIAL
1  Stem 304 316 316L
2  Body CF8 CF8M CF3M
3  Gland Nut 304
4  Stem Packing PTFE RPTFE
5  Thrust Washer PTFE RPTFE
6  Ball 304 316 316L
7  Valve Seat PTFE RPTFE
8  Bonnet CF8 CF8M CF3M
9  Bolt A2-70
10  Nut 304
11  Spring Washer 304

Main dimensions

SIZE Φd L H C ISO5211 H1
1/2" DN15 15  72 42  9  F03/F04 11
3/4" DN20 20  80 50  9  F03/F04 11
1" DN25 25  90 52  11  F04/F05 13
1-1/4" DN32 32  103 65  11  F04/F05 13
1-1/2" DN40 38  112 74  14  F05/F07 16
2" DN50 49  138 82  14  F05/F07 16-19
2-1/2" DN65 65  180 110  17  F07/F10 17-20
3" DN80 78  205 118  17  F07/F10 17-20
4" DN100 98  252 130  17  F07/F10 17-20

The dimensions above are for reference only.
