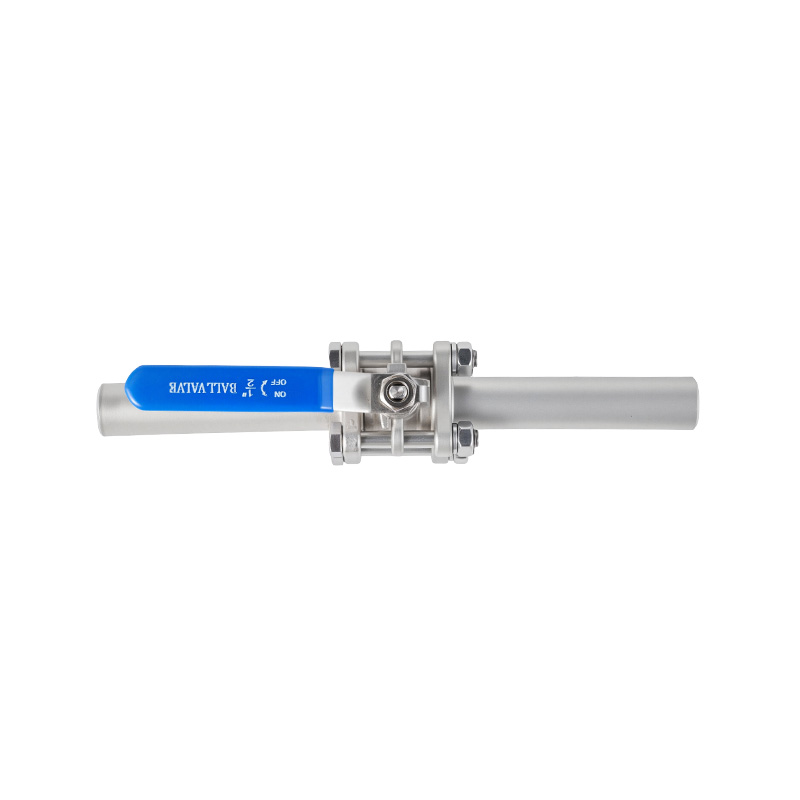

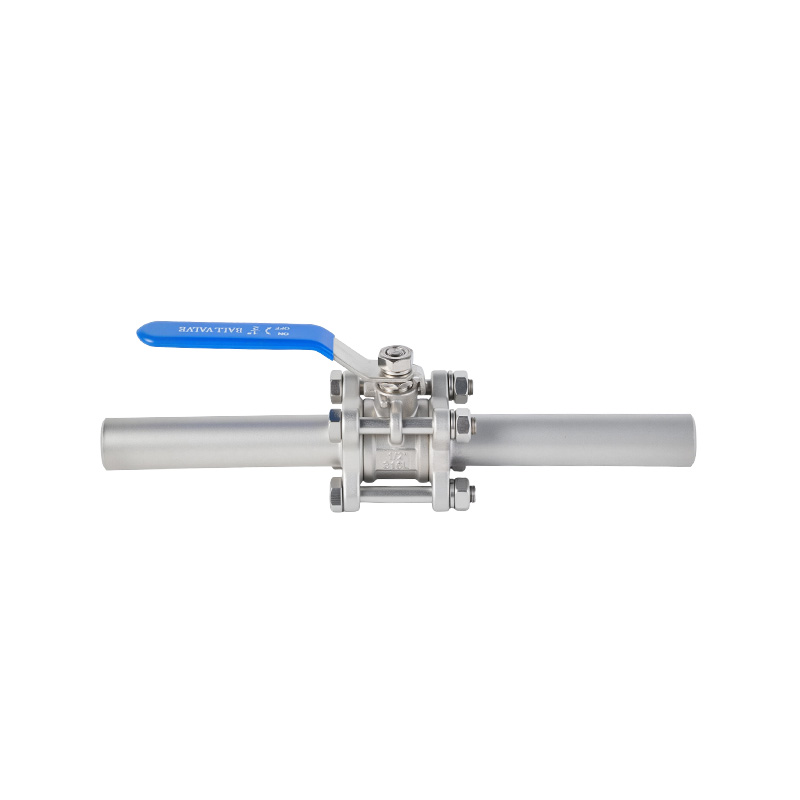

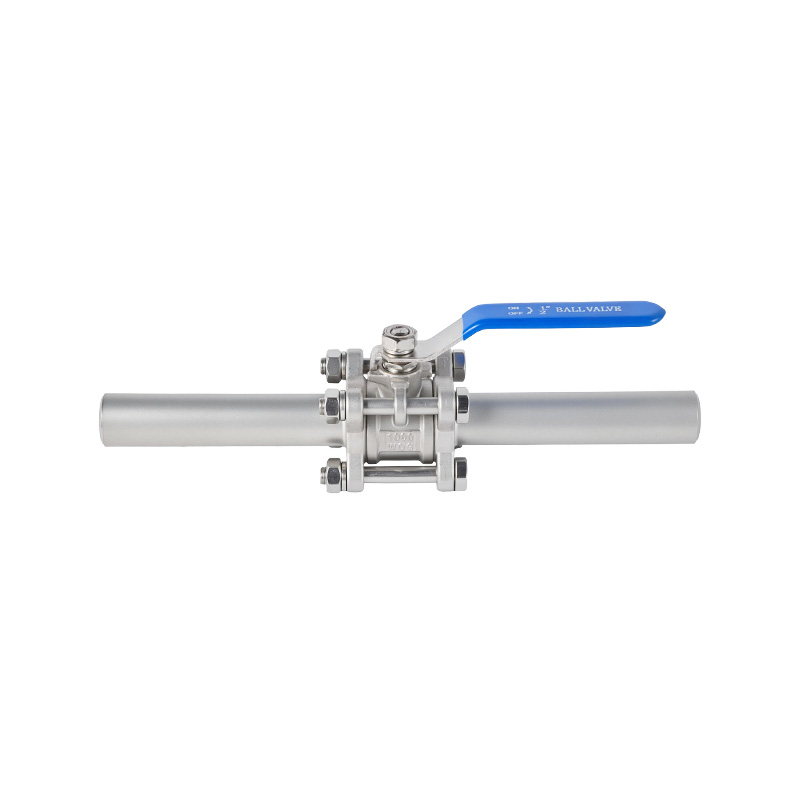

3-Piece Extended-Weld Ball Valve

PREV：Three-Piece High Platform Welded Ball Valve NEXT：External Thread Ball Valve with Connecting Pipe

Specification
About Zhongchi
Contact Us

Design Features:
Precision-cast valve body
Anti-disengagement valve stem
Full-bore design
Optional lockable handle
Working pressure: 1.6–2.5 MPa
Operating temperature: –20°C to 120°C (250°C)
Suitable media: water, oil, gas, etc.

Main Components and Materials

No.	Components	Main materials
1	Valve body	WCB CF8 CF8M CF3M
2	Valve seat	PTFE RPTFE
3	Ball	304 316 316L
4	Valve bonnet	WCB CF8 CF8M CF3M
5	Valve bonnet	304
6	Nut	A2-70 304
7	Bolt	A2-70 304
8	Valve stem	304 316 316L
9	Thrust washer	PTFE RPTFE
10	Packing	PTFE RPTFE
11	Gland	304
12	Handle	201 304
13	Spring washer	304
14	Nut	A2-70 304
15	Locking device	201 304
16	Handle sleeve	Plastic

Main dimensions (mm)

Dimensions		Φd	L	H	W
1/4"	DN6	10.5		52	95
3/8"	DN10	12		52	95
1/2"	DN15	15	244	55	100
3/4"	DN20	20	250	63	115
1"	DN25	25	257	75	125
1-1/4"	DN32	32	265	81	145
1-1/2"	DN40	38	273	95	160
2"	DN50	49	288	110	175
2-1/2"	DN65	65	307	131	220
3"	DN80	78	330	140	240
4"	DN100	98		170	315

The dimensions above are for reference only.
