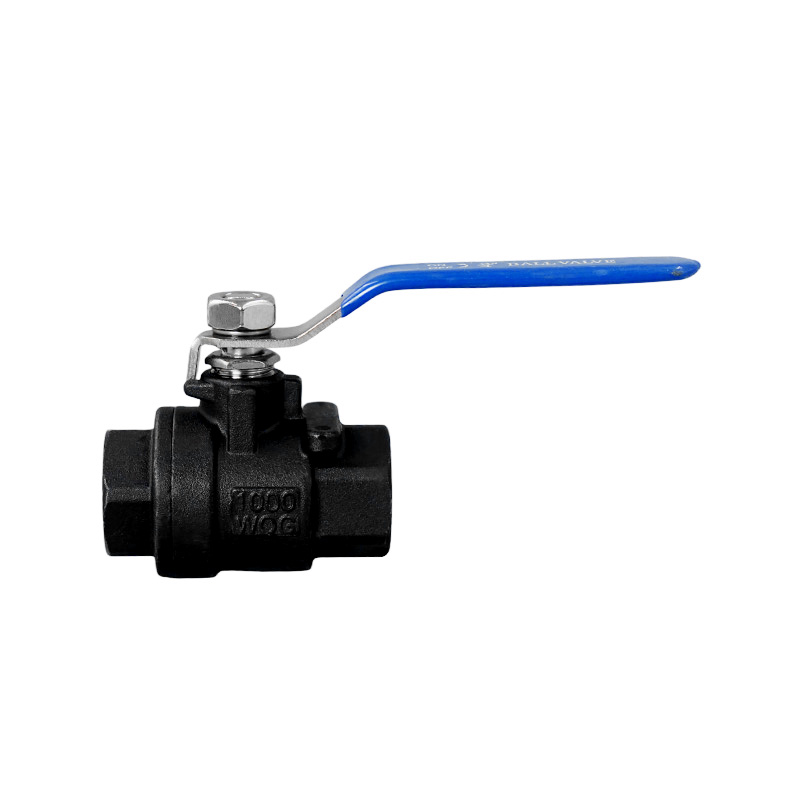

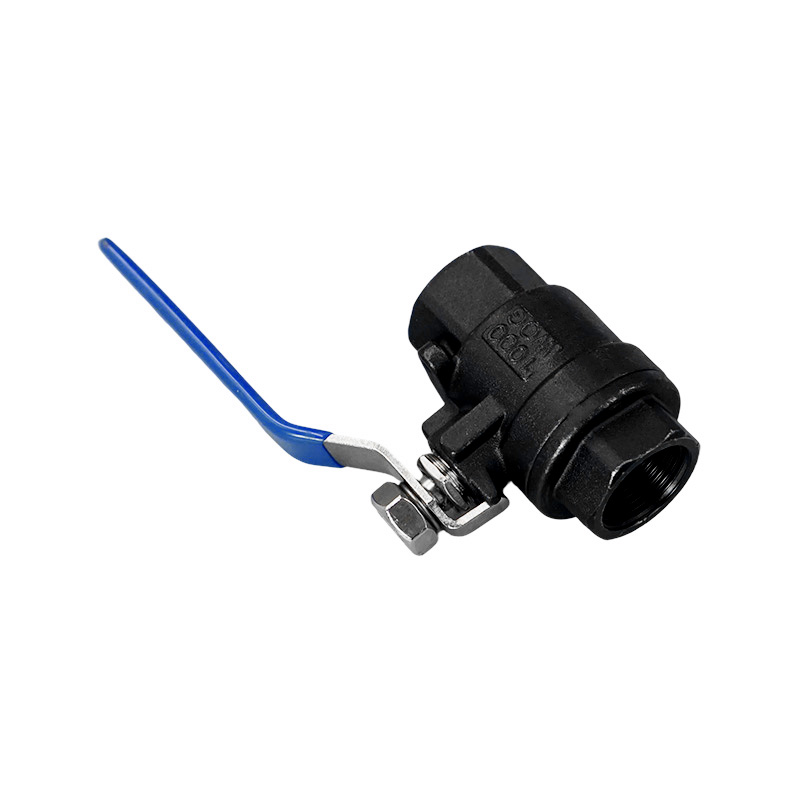

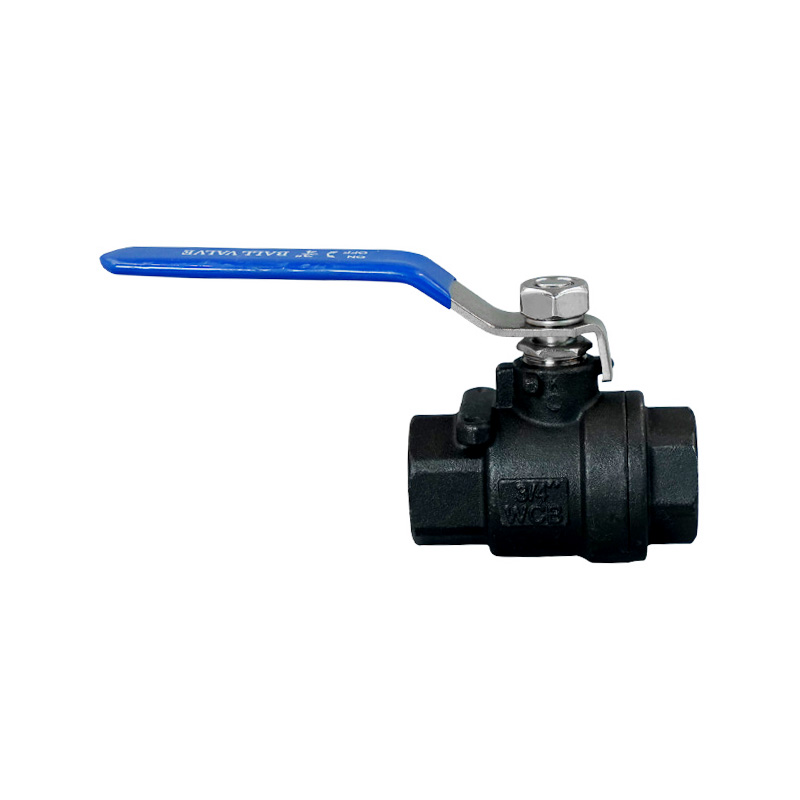

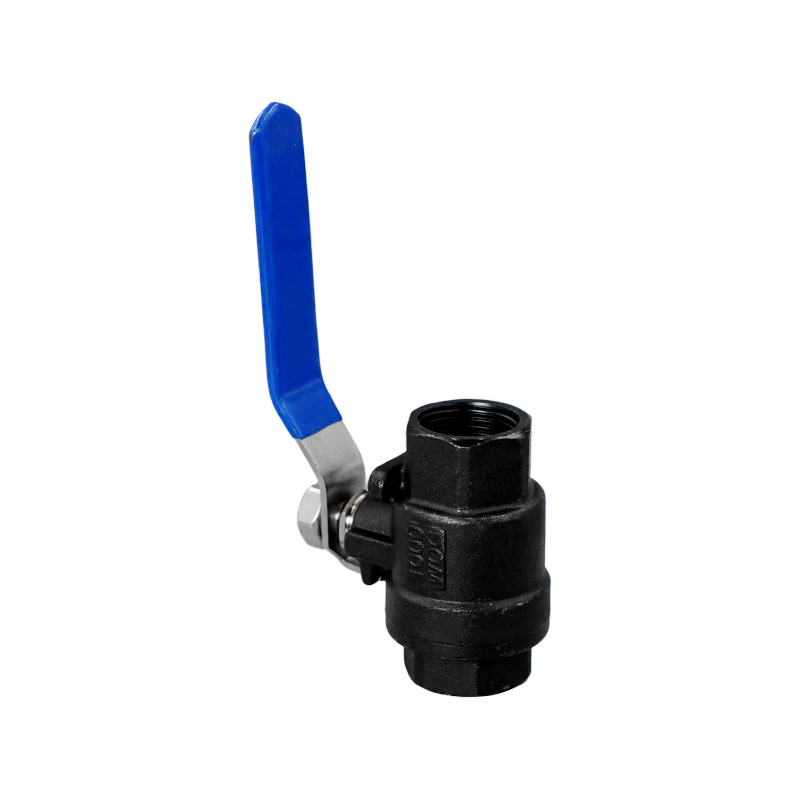

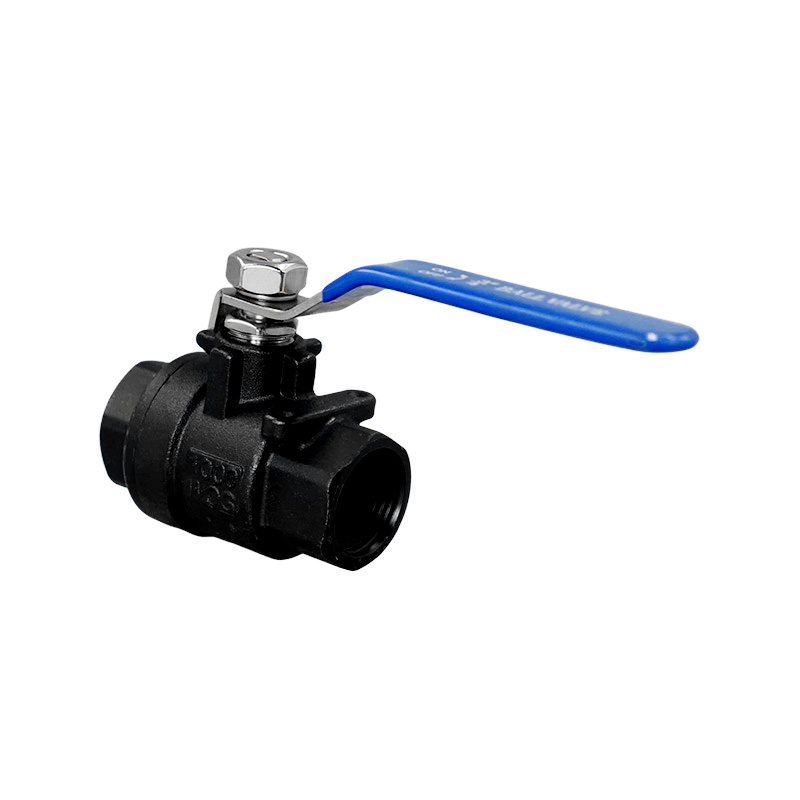

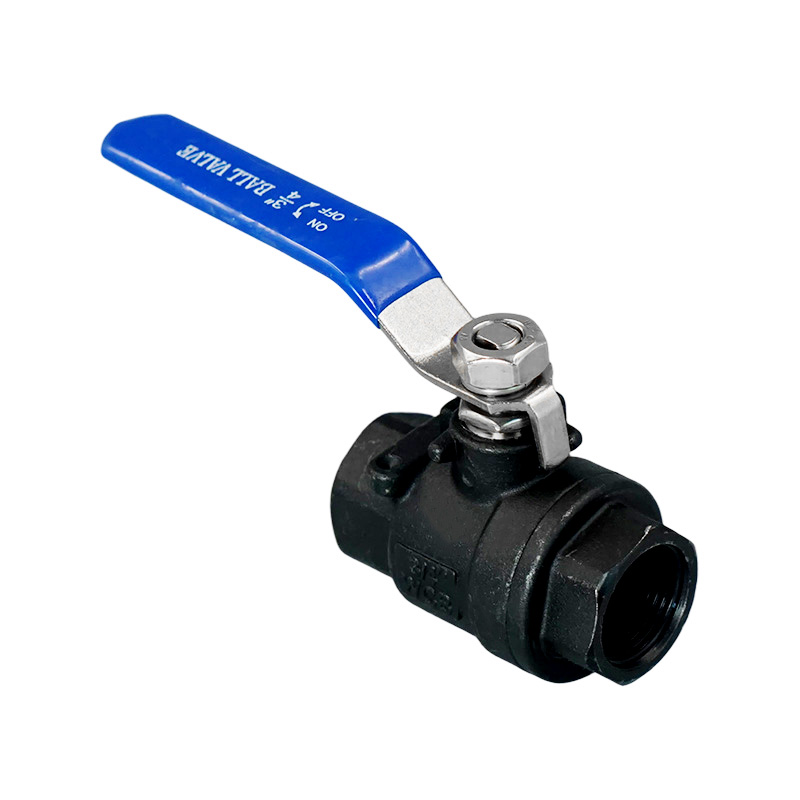

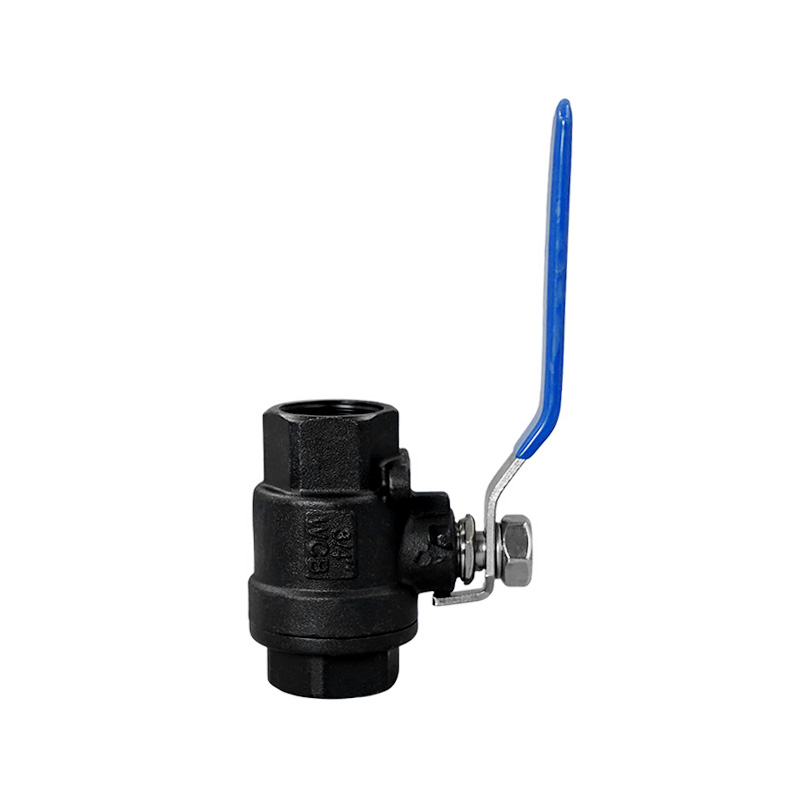

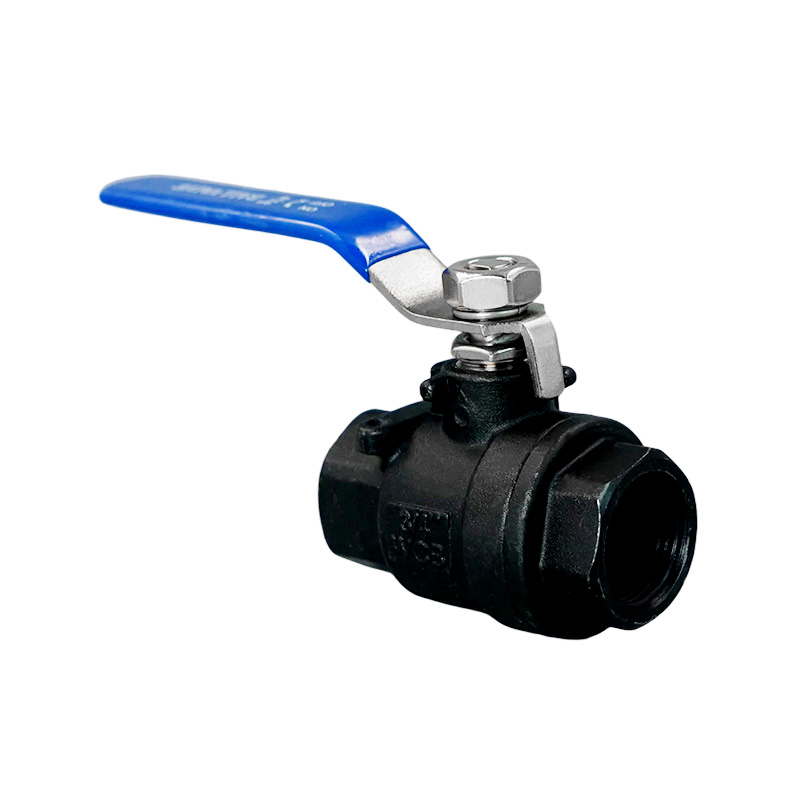

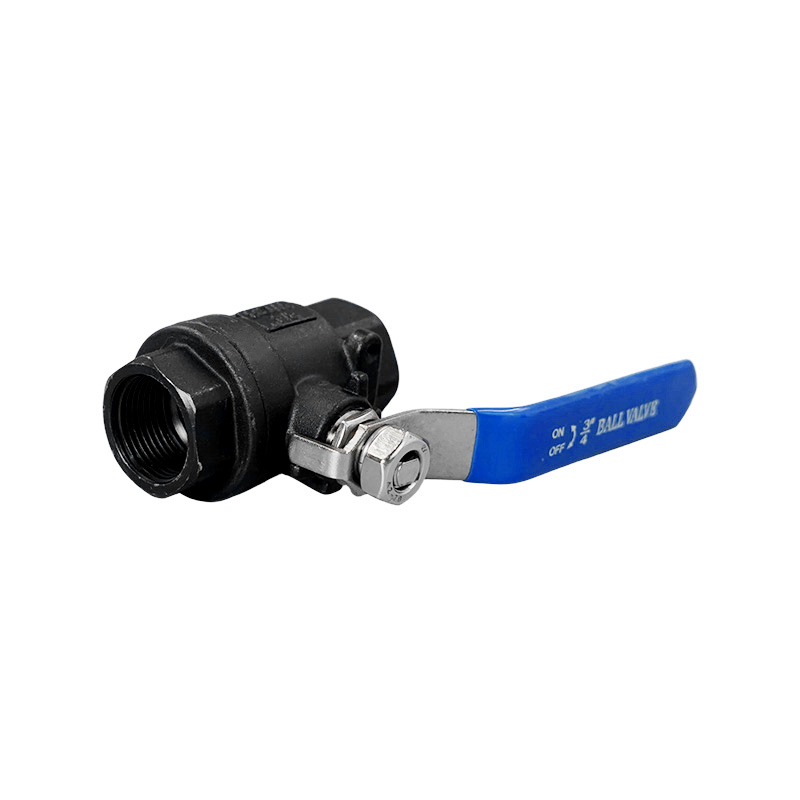

WCB 2PC Threaded Ball Valve

PREV：Two-piece Male & Female Thread Ball Valve NEXT：Three Pieces High Platform Female Threaded Ball Valve

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body
Blow-out Proof Stem
Full port design
Lockable handle available as an option
Thread standard:
NPT, BSP, BSPT, DIN259/2999, Rc, Rp
Working pressure:1.6~2.5MPa
Applicable temperature:
-20°C~120°C(250°C)
Applicable Medium: Water, oil, gas, Etc

Main parts and materials

ITEM	PART	MAIN MATERIAL


1	Body	WCB CF8 CF8M CF3M
2	Valve Seat	PTFE RPTFE

3	Ball	201 304 316 316L

4	Sealing Ring	PTFE RPTFE


5	Bonnet	WCB CF8 CF8M CF3M

6	Stem	304 316 316L

7	Thrust Washer	PTFE RPTFE

8	Stem Packing	PTFE RPTFE

9	Gland Nut	304

10	Handle	201 304
11	Spring Washer	304

12	Nut	304

13	Locking Device (Optional)	201 304

14	Handle Cover	Plastic

Main dimensions

SIZE		Φd	L	H	W
1/4"	DN6	10.5	55	50	95

3/8"	DN10	12	55	50	95
1/2"	DN15	15	62	59	108
3/4"	DN20	20	70	62	115
1"	DN25	25	82	70	125
1-1/4"	DN32	32	95	83	145
1-1/2"	DN40	38	105	90	170
2"	DN50	49	120	100	175
2-1/2"	DN65	65	142	130	220
3"	DN80	78	167	140	240
4"	DN100	98	198	175	315

The dimensions above are for reference only.
