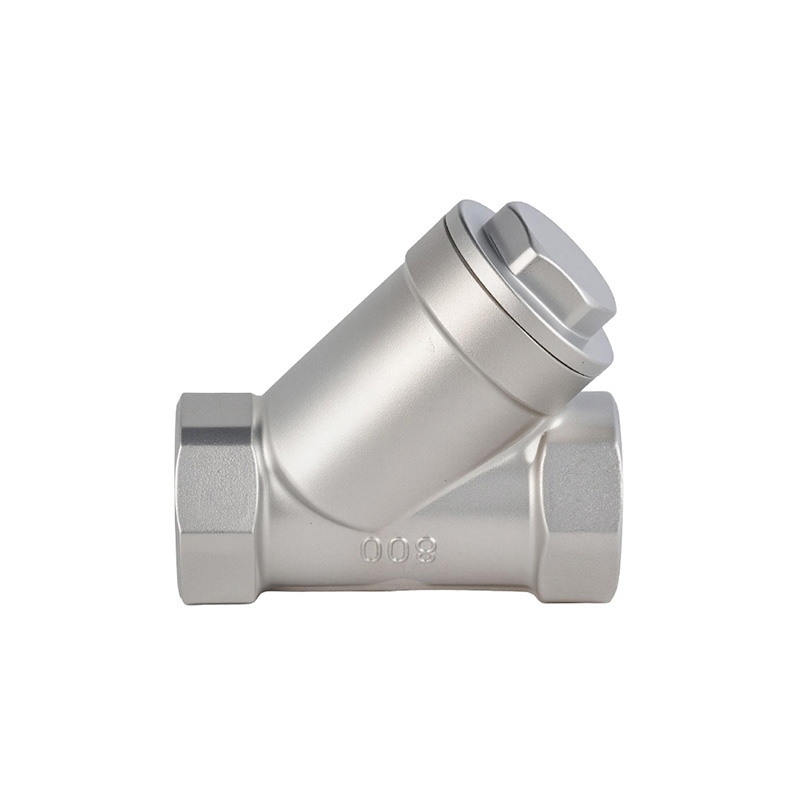

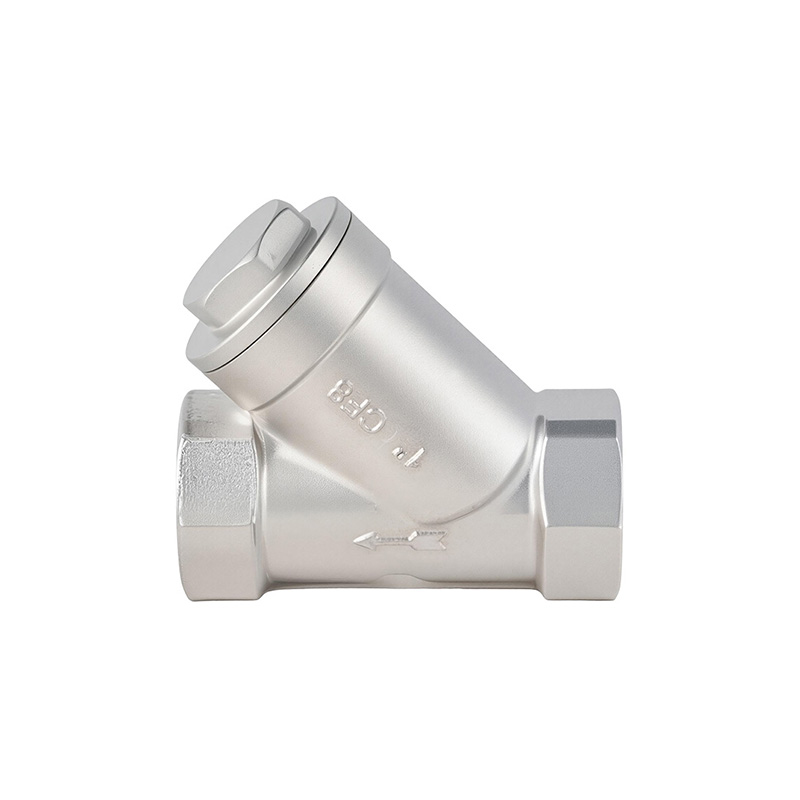

Y-type Threaded Strainer

The Y-type threaded strainer is the most commonly used coarse filtration device for small-bore pipelines. Featuring a compact structure, threaded connections, and ease of assembly and disassembly, it is both economical and practical; its primary function is to protect downstream equipment such as valves, water meters, pumps, and instrumentation.

PREV：Fluorine Lined Y-Strainer NEXT：Y-type Flanged Strainer Valve

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body
Thread standard:
NPT, BSP, BSPT, DIN259/2999, Rc, Rp
Working pressure: 1.6MPa
Applicable temperature:
-20°C~150°C(280°C)
Applicable Medium: Water, oil, Etc

Main parts and materials

ITEM

PART

MAIN MATERIAL

Body

CF8 CF8M CF3M

Filter Screen

304 316 316L

Sealing Ring

PTFE RPTFE

Bonnet

CF8 CF8M CF3M

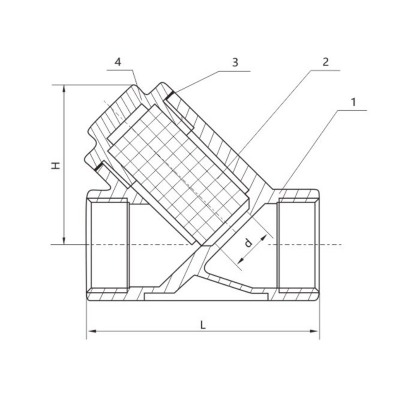

Main dimensions

SIZE		d	L		H
1/2"	DN15	15	60	64	45
3/4"	DN20	20	73	80	57
1"	DN25	23	84	90	73

1-1/4"	DN32	30	100	105	78

1-1/2"	DN40	37	105	118	84

2"	DN50	48	136	138	98

2-1/2"	DN65	63	165		/

3"	DN80	76	190		/
4"	DN100	97	236		/

The dimensions above are for reference only.
