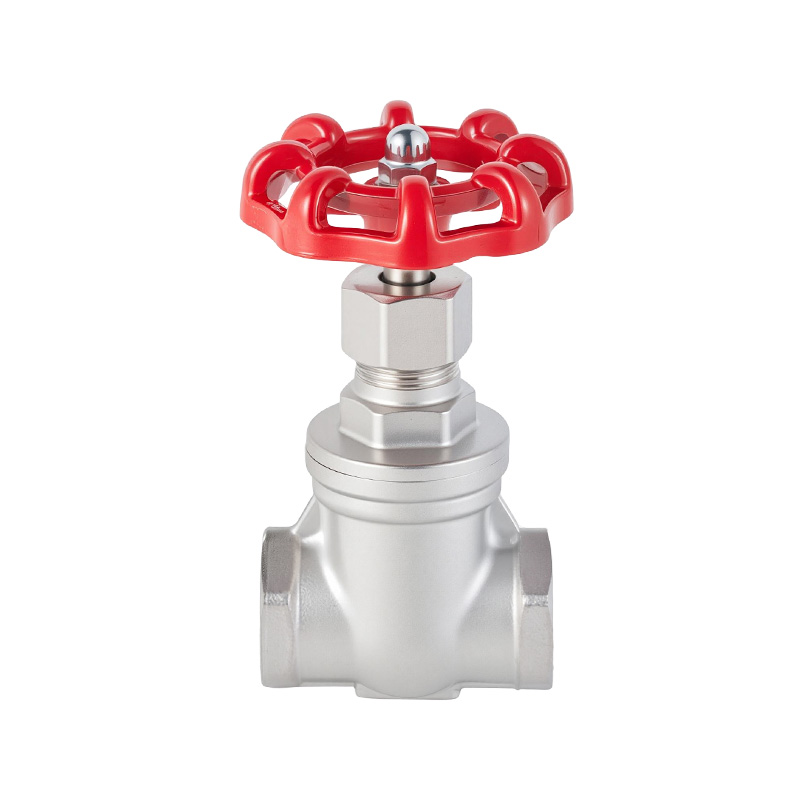

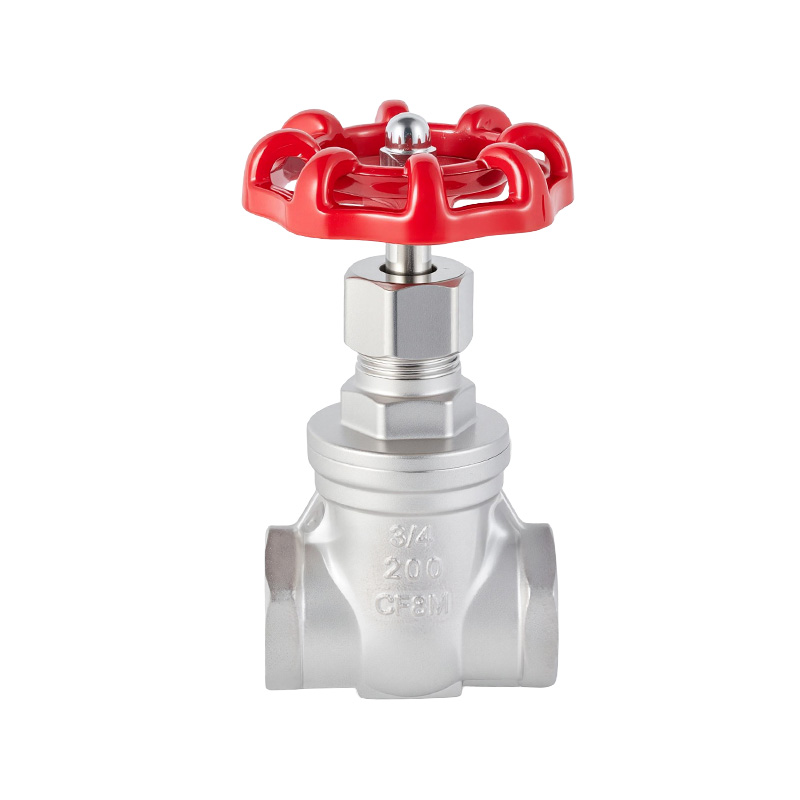

Threaded Gate Valve

Threaded gate valves offer both flexibility and cost-effectiveness—requiring neither substantial installation space nor complex installation procedures, they can be operated by an ordinary user, thereby significantly reducing construction and maintenance costs.

PREV：Non-rising Stem Resilient Seated Gate valve NEXT：American Standard Flanged Gate Valve

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body

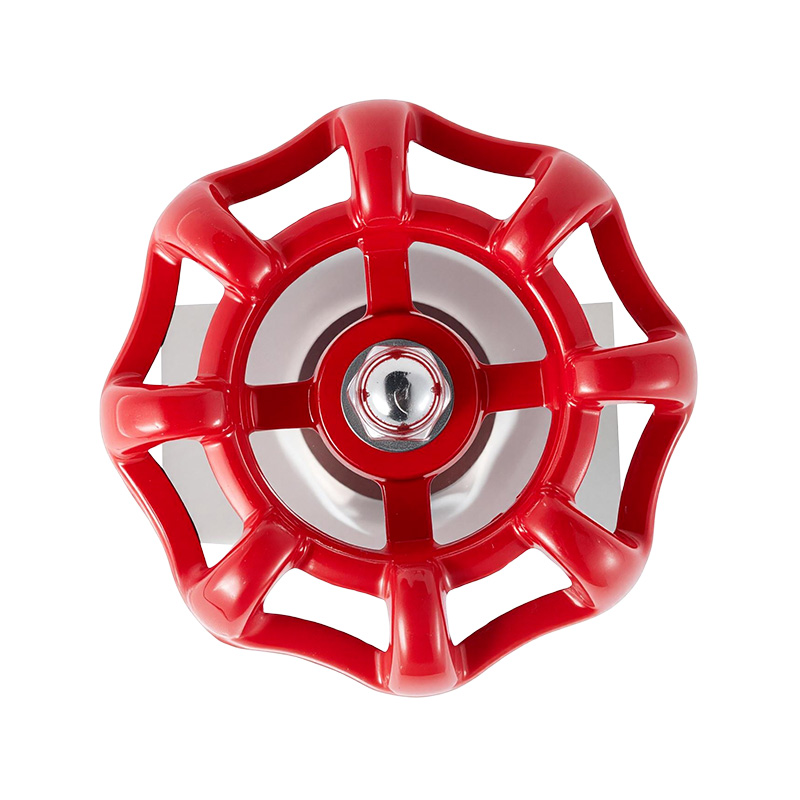

Hand Wheel-operated
Locking Device Handle Available
Thread standard:
NPT,BSP,BSPT,DIN259/2999,Rc,Rp
Working pressure:1.6MPa
Applicable temperature:
-20°C~150°C(280°C)
Applicable Medium: Water, oil, gas, etc

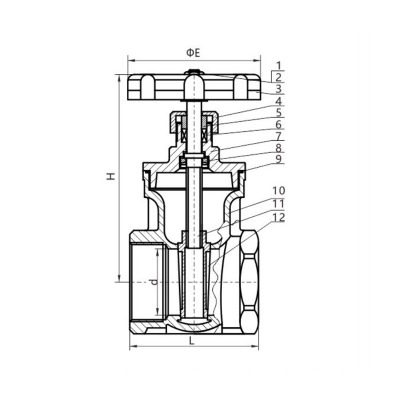

Main parts and materials

ITEM	PART	MAIN MATERIAL


1	Nut	201 304

2	Gasket	304


3	Handwheel	KTH330-08


4	Tightening Bonnet	201 304
5	Gland	304

6	Stem Packing	PTFE RPTFE

7	Bonnet	CF8 CF8M

8	Gland	304 316


9	Sealing Ring	PTFE RPTFE


10	Body	CF8 CF8M

11	Stem	304 316

12	Disc	304 316

Main dimensions

SIZE		d	L	H	ΦE
1/2"	DN15	15	53	98	65
3/4"	DN20	20	57	104	65

1"	DN25	25	61	115	72
1-1/4"	DN32	32	71	125	79

1-1/2"	DN40	38	74	147	95

2"	DN50	50	83	165	108

2-1/2"	DN65	65	104	207	127

The dimensions above are for reference only.
