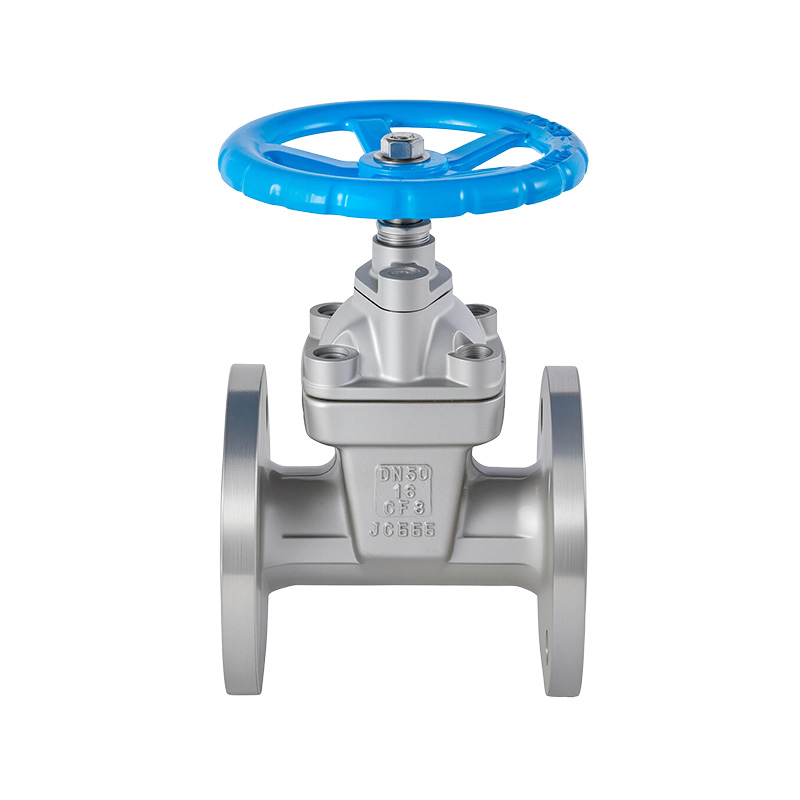

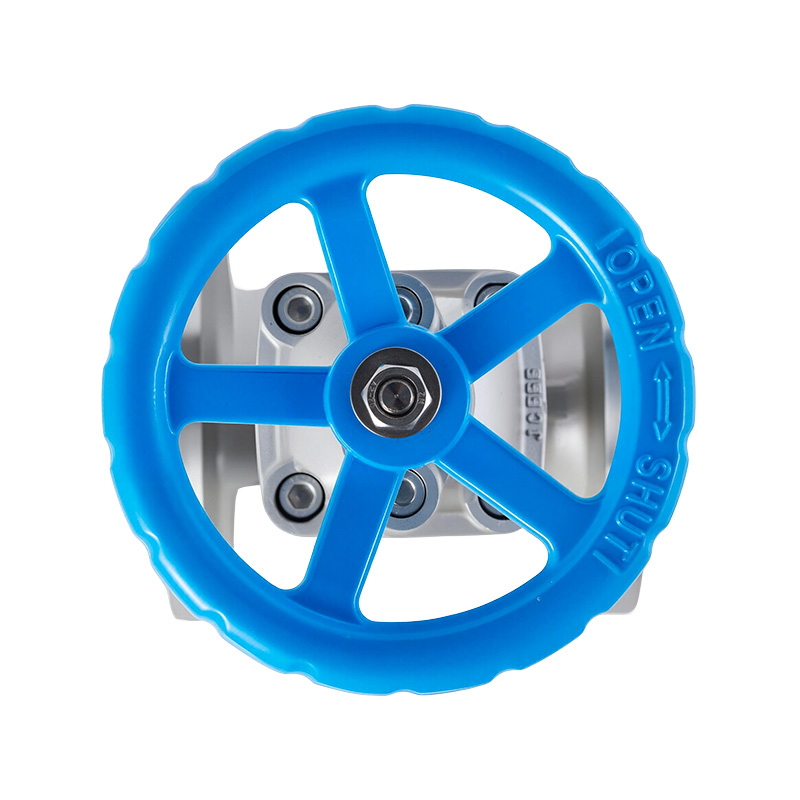

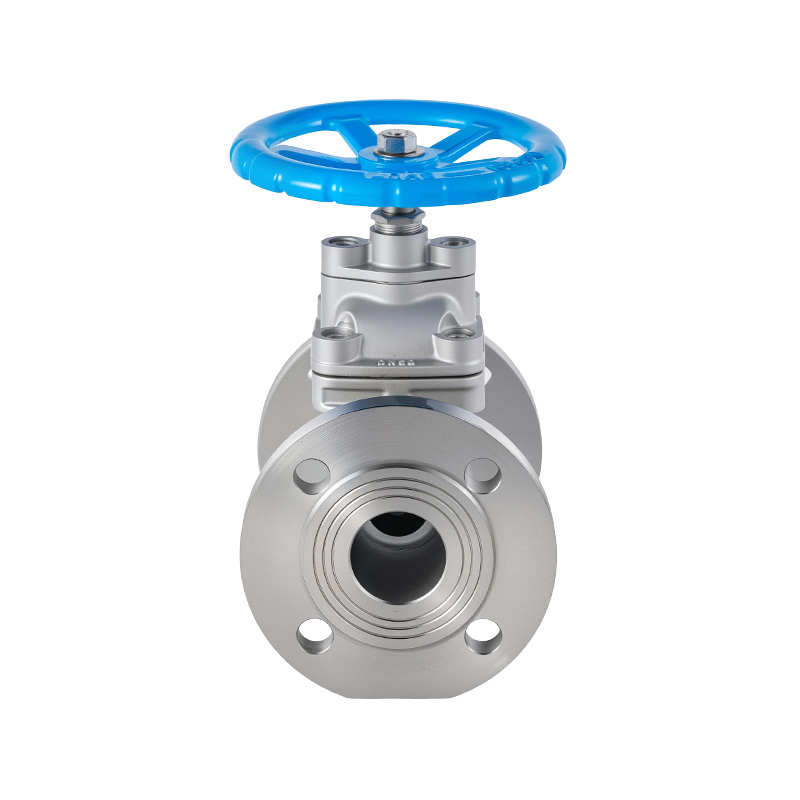

Non-rising Stem Resilient Seated Gate valve

The Non-Rising Stem Resilient-Seated Gate Valve consists of a valve body, bonnet, stem, stem nut, gate, and other components. This valve achieves an excellent sealing effect by utilizing the compensatory action of a resilient gate, which undergoes slight elastic deformation. It boasts significant advantages such as effortless operation, reliable tight sealing, superior elastic memory, and a long service life. The valve features a full-bore design, non-rising stem operation, flanged connections, and a flat-bottomed seat profile that prevents the accumulation of debris.

PREV：Rising Stem Resilient Seated Gate Valve NEXT：Threaded Gate Valve

Specification
About Zhongchi
Contact Us

Nominal diameter	Length	Connection dimensions (standard values) Flange standard: Ministry of Chemical Industry 20592
Nominal diameter	Length	1.0MPa			1.6MPa			2.5MPa
mm	L	D	D1	n-d	D	D1	n-d	D	D1	n-d
40	178	150	110	4-18	150	110	4-18	150	110	4-18
50	178	165	125	4-18	165	125	4-18	165	125	4-18
65	190	185	145	8-18	185	145	8-18	185	145	8-18
80	203	200	160	8-18	200	160	8-18	200	160	8-18
100	229	220	180	8-18	220	180	8-18	235	190	8-22
125	254	250	240	8-18	250	240	8-18	270	220	8-26
150	267	285	240	8-220	285	240	8-22	300	250	8-26
200	292	340	295	12-22	340	295	12-22	360	310	12-22
250	330	395	350	12-22	405	355	12-26	425	370	12-30
300	356	445	400	12-22	460	410	12-26	485	430	16-30
350	381	505	460	16-22	520	470	16-26	555	490	16-33
400	406	565	515	16-26	580	525	16-30	620	550	16-36

The dimensions above are for reference only.
