Forged Steel Flanged Ball Valve

Home / Products / Ball Valve / Flanged Ball Valve / Forged Steel Flanged Ball Valve
  • Forged Steel Flanged Ball Valve
  • Forged Steel Flanged Ball Valve

Forged Steel Flanged Ball Valve

Forged Steel Flanged Ball Valve is a one-piece forged steel ball valve designed for industrial pipeline flow control. The flange and valve body are welded together to form a single integral structure, providing a compact and robust valve construction. The valve uses a reinforced Polytetrafluoroethylene (PTFE) seat to provide reliable sealing performance during operation. The valve length can also be selected according to customer requirements to accommodate different pipeline installation conditions.

The one-piece forged steel construction combines the valve body and flange into an integral welded structure, reducing the number of separate connection points within the valve assembly. This design provides a rigid configuration for industrial piping applications while simplifying adaptation to specific installation dimensions. The reinforced PTFE seat offers good sealing properties and is suitable for applications where dependable shutoff and chemical resistance are required.

Forged Steel Flanged Ball Valve is suitable for industrial fluid handling, process piping, chemical processing, oil and gas systems, and other pipeline applications requiring a robust flanged ball valve construction. OEM and ODM services are available to support customized valve lengths, materials, flange configurations, seat materials, and other project-specific requirements.

Contact Us
PREV：3-Piece Flanged Ball ValveNEXT：Wafer Thin Ball Valve
  • Specification
  • Purchasing Information
  • Contact Us
Design Features:
Flanged ends:
JB/T 79-2015, GB/T 9124.1-2019
ASME B16.5, JIS B2220
Test & inspection:
GB/T 26480-2011, GB/T 13927-2022
JB/T 9092-1999, API598
Applicable medium:
Water, oil, gas, Ect

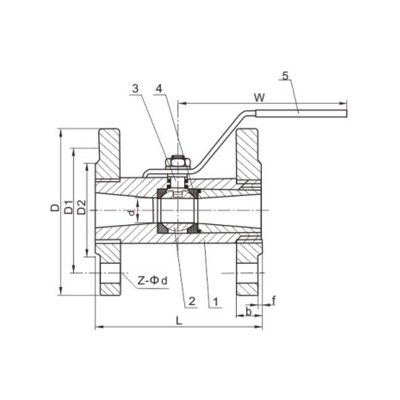

Main parts and materials

ITEM PART MAIN MATERIAL
1 Body A105 304 316
2 Ball 304 316
3 Stem F304 F316
4 Valve Seat PTFE RPTFE
5 Handle 201 304

Main dimensions(PN16) JB/T 79-2015

SIZE d D D1 D2 L W Z-Φd
1/2" DN15 10  95  65  45  90  110  4-Φ14
3/4" DN20 13  105  75  55  105  110  4-Φ14
1" DN25 17  115  85  65  110  110  4-Φ14
1-1/4" DN32 22  135  100  78  125  150  4-Φ18
1-1/2" DN40 25  145  110  85  136  150  4-Φ18
2" DN50 32  160  125  100  155  180  4-Φ18
2-1/2" DN65 40  180  145  120  170  180  4-Φ18
3" DN80 50  195  160  135  190  230  8-Φ18
4" DN100 65  215  180  155  210  230  8-Φ18

The dimensions above are for reference only.


Design Features:
Flanged ends:
JB/T 79-2015, GB/T 9124.1-2019
ASME B16.5, JIS B2220
Test & inspection:
GB/T 26480-2011, GB/T 13927-2022
JB/T 9092-1999, API598
Applicable medium:
Water, oil, gas, Ect



Main parts and materials

ITEM PART MAIN MATERIAL
1 Body A105 304 316
2 Ball 304 316
3 Stem F304 F316
4 Valve Seat PTFE RPTFE
5 Handle 201 304

Main dimensions(PN16) JB/T 79-2015

SIZE d D D1 D2 L W Z-Φd
1/2" DN15 10  95  65  45  90  110  4-Φ14
3/4" DN20 13  105  75  55  105  110  4-Φ14
1" DN25 17  115  85  65  110  110  4-Φ14
1-1/4" DN32 22  135  100  78  125  150  4-Φ18
1-1/2" DN40 25  145  110  85  136  150  4-Φ18
2" DN50 32  160  125  100  155  180  4-Φ18
2-1/2" DN65 40  180  145  120  170  180  4-Φ18
3" DN80 50  195  160  135  190  230  8-Φ18
4" DN100 65  215  180  155  210  230  8-Φ18

The dimensions above are for reference only.
