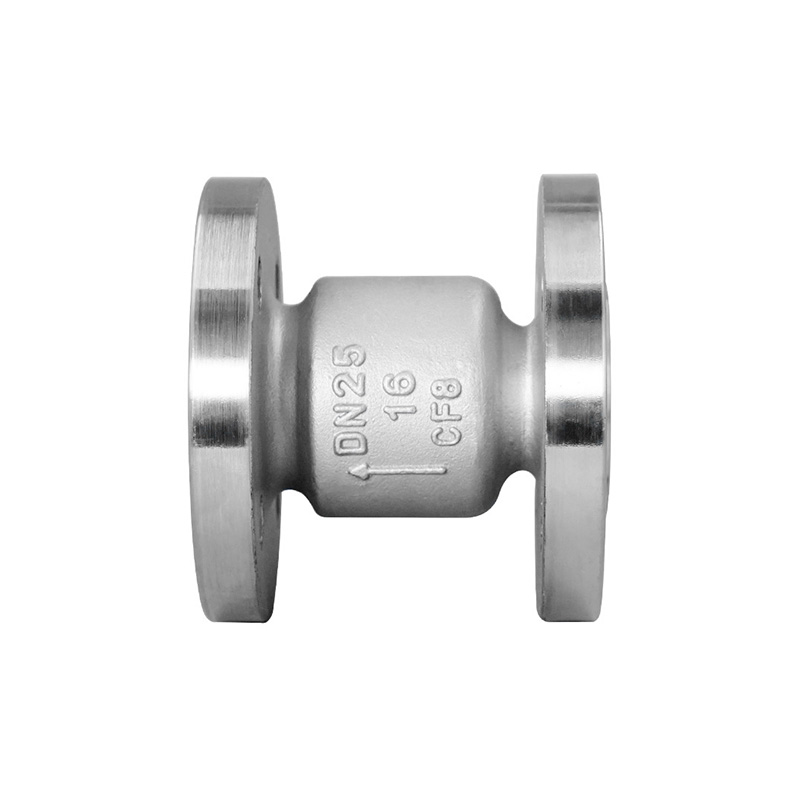

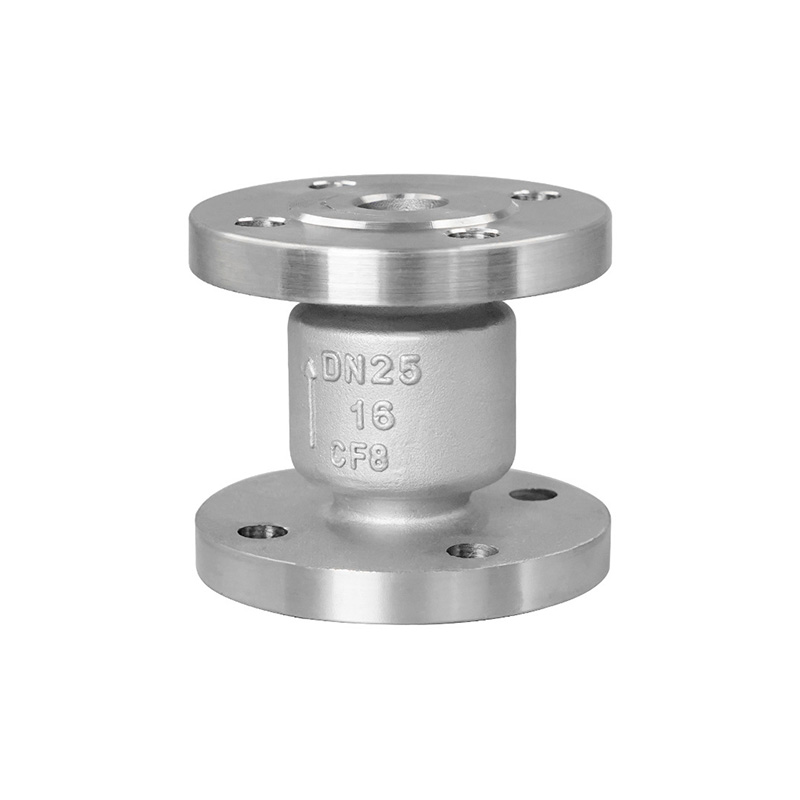

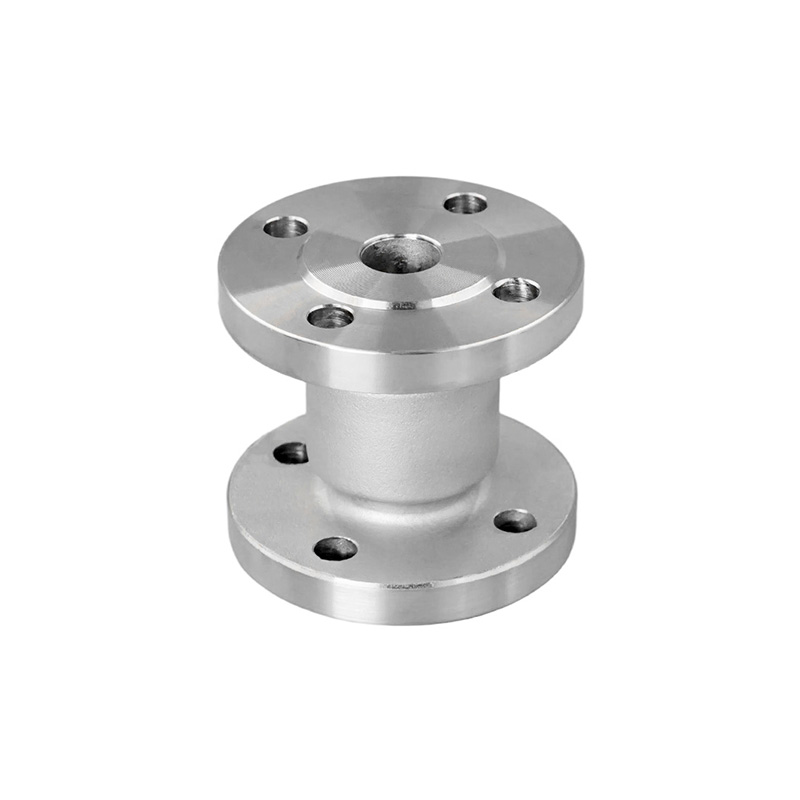

Flanged Vertical Check Valve

The vertical check valve is designed for vertical installation, with a disc that opens and closes along a vertical axis, making it suitable for applications where the medium flows from bottom to top. The disc features a short lift stroke and rapid response speed, enabling it to quickly prevent backflow of the medium.

PREV：H71 Wafer Check Valve NEXT：Flanged Lift Check Valve

Specification
About Zhongchi
Contact Us

Design Features:
Flanged ends:
JB/T 79-2015
GB/T 9124.1-2019
Test & inspection:
GB/T 26480-2011, GB/T 13927-2022
JB/T 9092-1999

Main parts and materials

ITEM

PART

MAIN MATERIAL

Body

CF8 CF3 CF8M CF3M WCB

Disc

CF8 CF3 CF8M CF3M WCB

Spring

304 316L

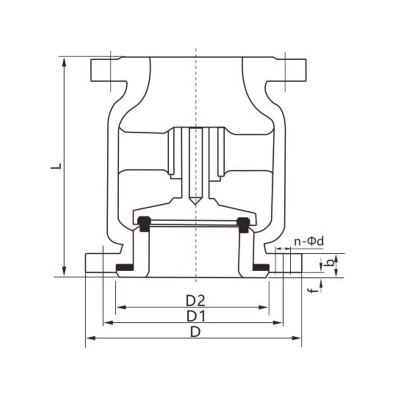

Main dimensions(PN16) GB/T 9124.1-2019

DN	L	D	D1	D2	b-f	n-Φd

15	80	95	65	45	16-2	4-Φ14

20	95	105	75	58	18-2	4-Φ14
25	105	115	85	68	18-2	4-Φ14

32	150	140	100	78	18-2	4-Φ18
40	160	150	110	88	18-3	4-Φ18

50	170	165	125	102	18-3	4-Φ18
65	180	185	145	122	18-3	8-Φ18

80	200	200	160	138	20-3	8-Φ18

100	210	220	180	158	20-3	8-Φ18

125	275	250	210	188	22-3	8-Φ18

150	300	285	240	212	22-3	8-Φ22

200	380	340	295	268	24-3	12-Φ22

250	450	405	355	320	26-3	12-Φ26

The dimensions above are for reference only.
