Flanged Lift Check Valve

Home / Products / Check Valve / Flanged Lift Check Valve
  • Flanged Lift Check Valve
  • Flanged Lift Check Valve
  • Flanged Lift Check Valve
  • Flanged Lift Check Valve
  • Flanged Lift Check Valve
  • Flanged Lift Check Valve
  • Flanged Lift Check Valve

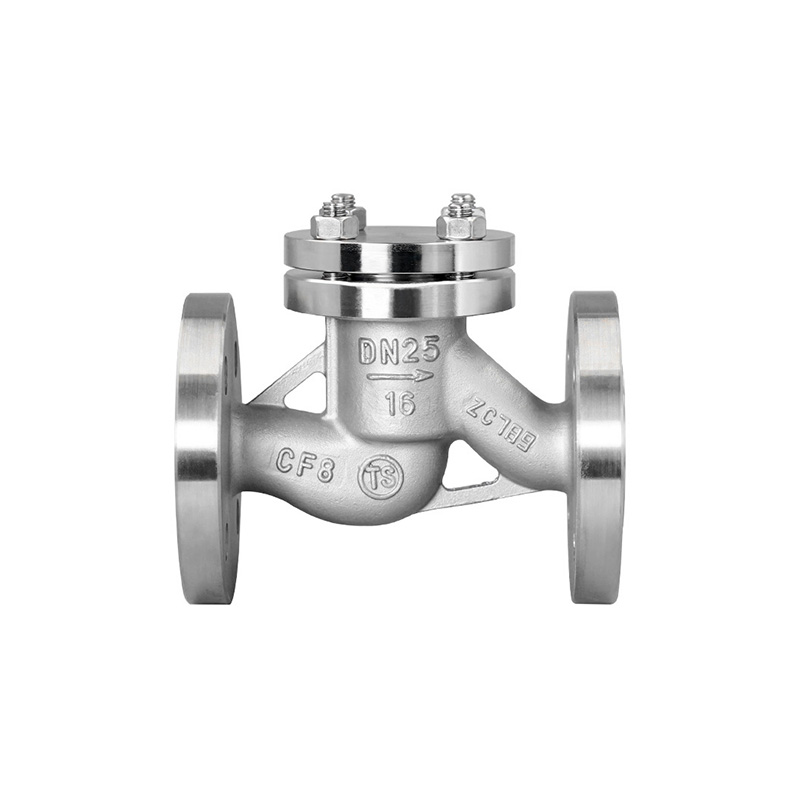

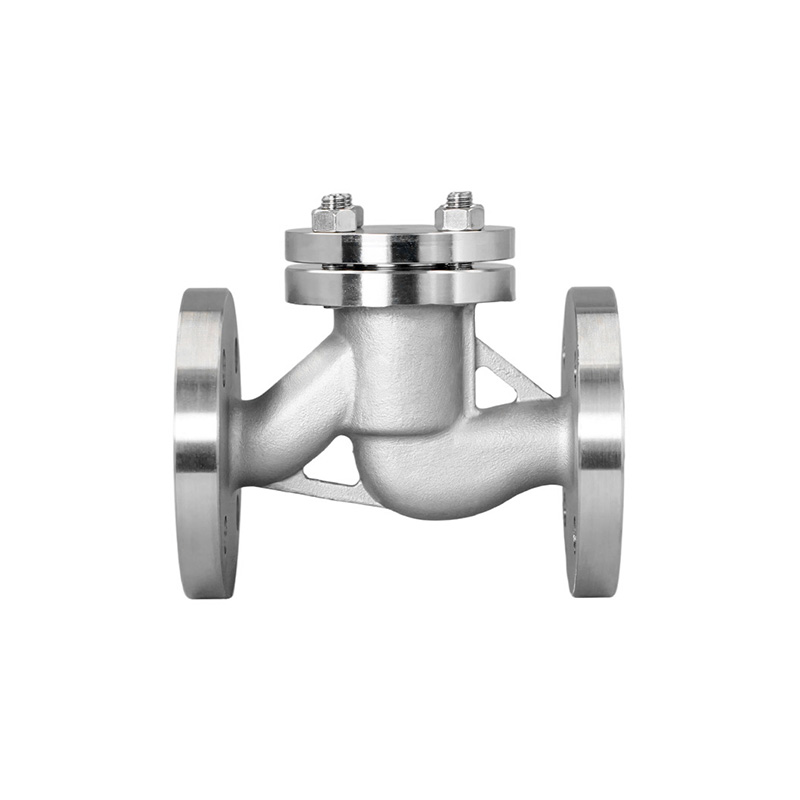

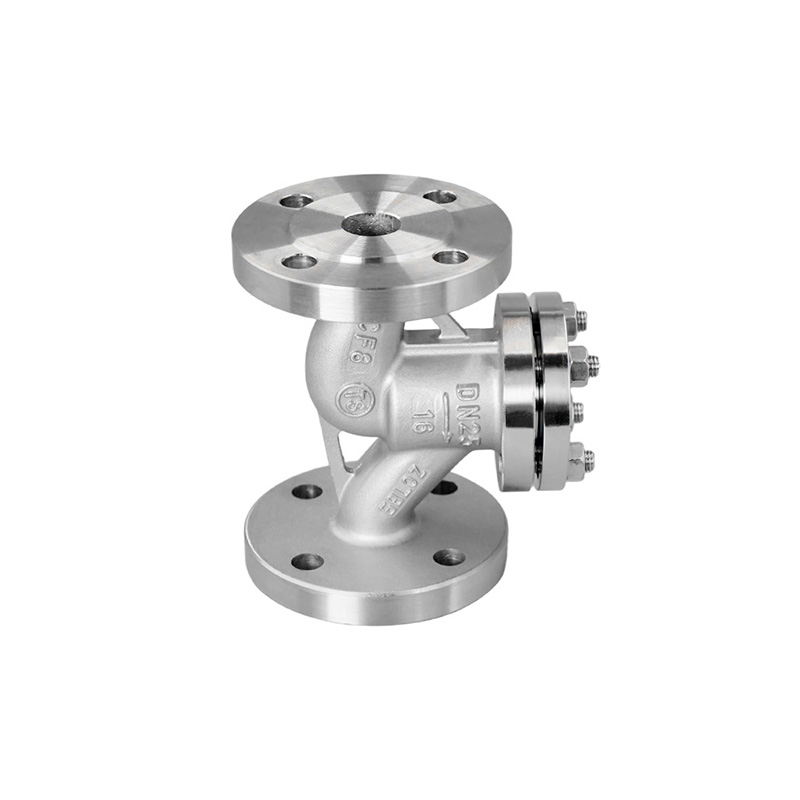

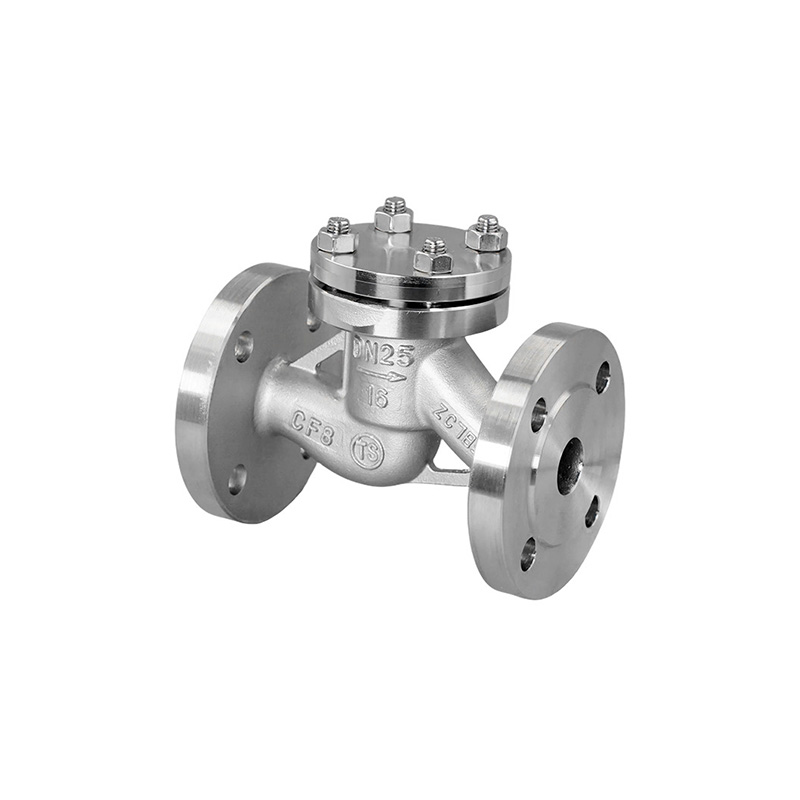

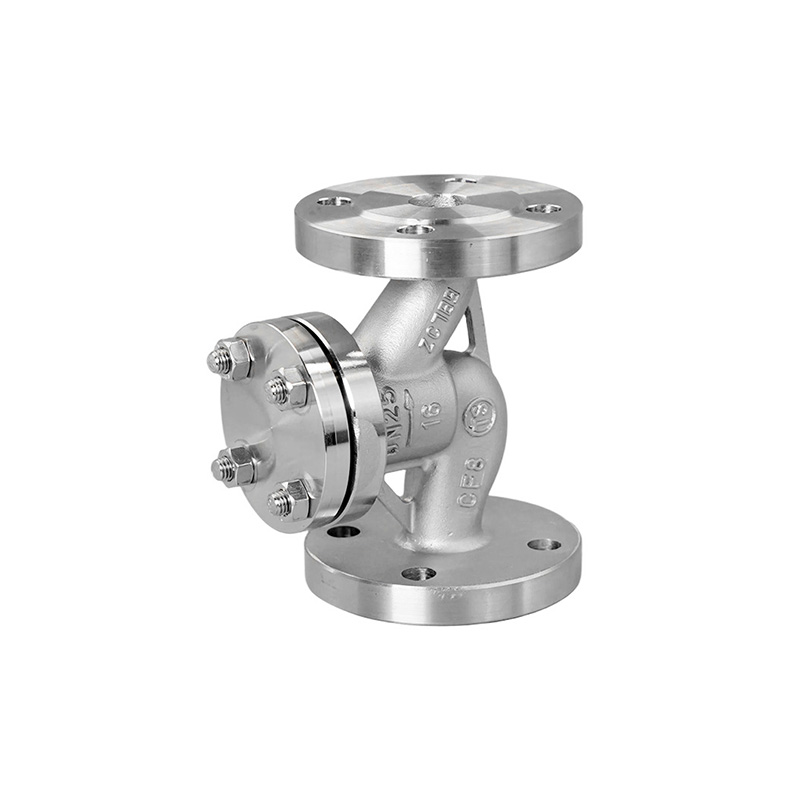

Flanged Lift Check Valve

Flanged Lift Check Valve is a horizontal lift-type check valve designed to automatically prevent medium backflow in industrial pipeline systems. It requires no manual or electric external drive and opens or closes according to the pressure and flow direction of the medium. With a straight-through lifting structure, the valve disc is pushed upward by forward fluid pressure to allow smooth flow. When backflow or pressure reversal occurs, the disc closes under its own weight and reverse pressure, helping prevent equipment damage and pipeline faults caused by reverse flow.

The flanged connection provides firm installation and convenient disassembly and maintenance, while supporting integration with industrial standard flange pipelines. The valve is designed as an automatic pipeline protection device for systems where backflow prevention is required. Its flanged ends can be manufactured according to JB/T 79-2015 and GB/T 9124.1-2019, with testing and inspection conducted according to GB/T 26480-2011, GB/T 13927-2022, and JB/T 9092-1999.

Flanged Lift Check Valve is suitable for industrial water systems, process pipelines, equipment protection, and other applications where reverse flow needs to be controlled automatically. OEM and ODM services can support customization of valve size, body materials, flange standards, pressure ratings, and other project-specific requirements.

Contact Us
PREV：Flanged Vertical Check ValveNEXT：American Standard Flanged Swing Check Valve
  • Specification
  • Purchasing Information
  • Contact Us
Design Features:
Flanged ends:
JB/T 79-2015, GB/T 9124.1-2019
Test & inspection:
GB/T 26480-2011, GB/T 13927-2022
JB/T 9092-1999


Main parts and materials

ITEM PART MAIN MATERIAL
1  Body CF8 CF3 CF8M CF3M WCB
2  Bonnet CF8 CF3 CF8M CF3M WCB
3  Disc CF8 CF3 CF8M CF3M WCB
4  Gasket PTFE Spiral Wound Gasket
5  Bolt B8 B7
6  Nut A194-8 2H

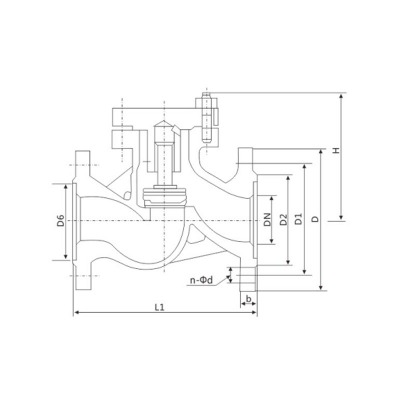

Main dimensions(PN16) GB/T 9124.1-2019

DN L D D1 D2 b-f n-Φd
15  130 95 65 45 16-2 4-Φ14
20  150 105 75 58 18-2 4-Φ14
25  160 115 85 68 18-2 4-Φ14
32  180 140 100 78 18-2 4-Φ18
40  200 150 110 88 18-3 4-Φ18
50  230 165 125 102 18-3 4-Φ18
65  290 185 145 122 18-3 8-Φ18
80  310 200 160 138 20-3 8-Φ18
100  350 220 180 158 20-3 8-Φ18
125  400 250 210 188 22-3 8-Φ18
150  480 265 240 212 22-3 8-Φ22
200  600 340 295 268 24-3 12-Φ22
250  650 405 355 320 26-3 12-Φ26
300  750 460 410 378 28-3 12-Φ26

The dimensions above are for reference only.
