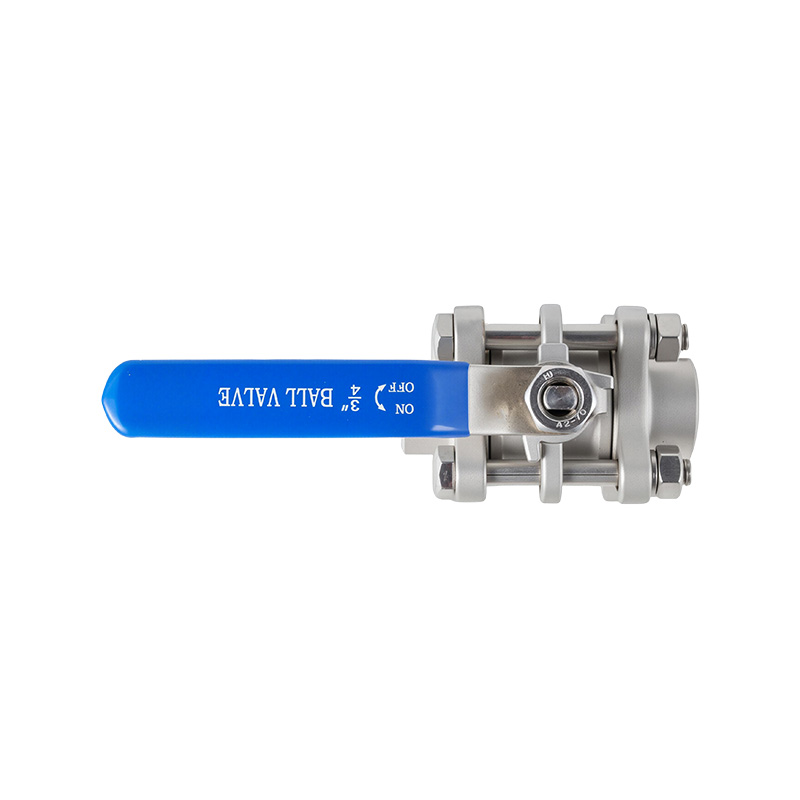

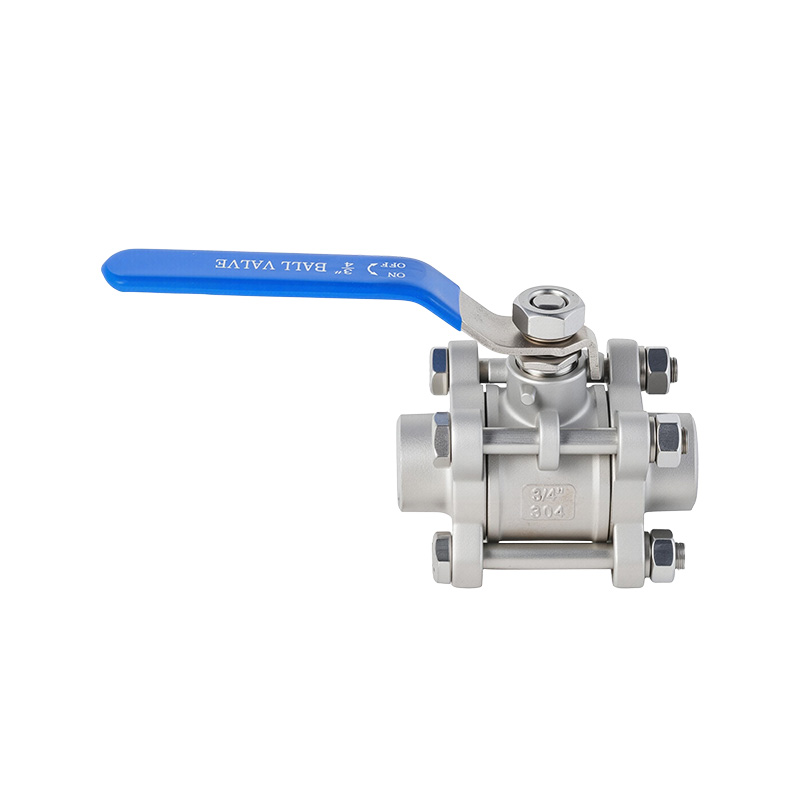

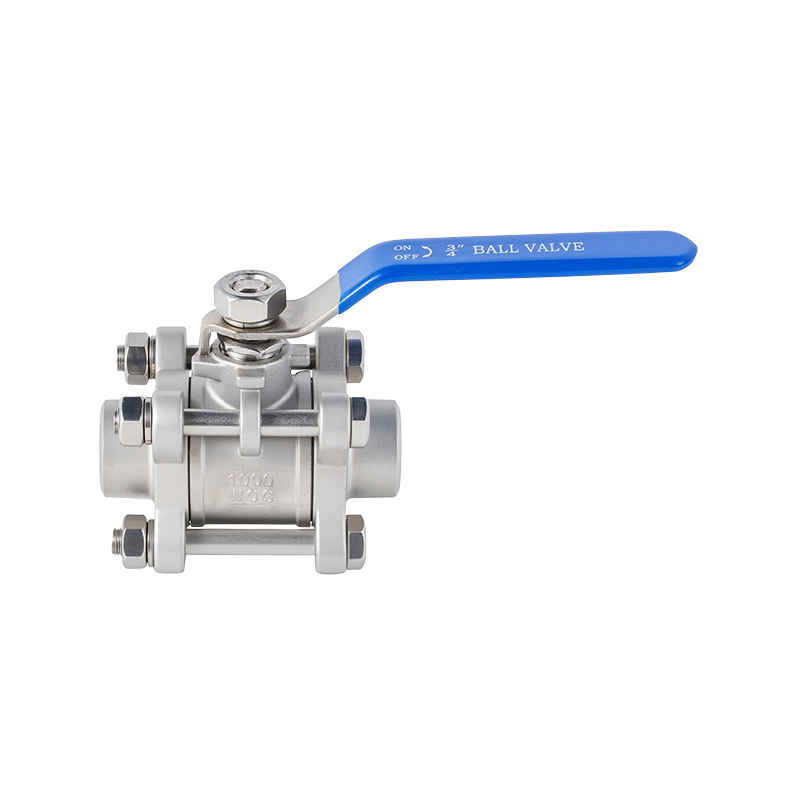

Three Pieces Manual Welded Ball Valve

The three-piece structure allows for easy disassembly; during subsequent maintenance, there is no need to remove the entire pipeline. Instead, the valve body can simply be separated to facilitate the inspection and replacement of wear-prone components—such as the valve seat, ball, and stem—thereby significantly reducing downtime and lowering operation and maintenance costs. This ball valve *must* be removed via desoldering; it must *not* be welded directly in place, as doing so would damage the valve seat. Following desoldering and removal, the ball valve must be reassembled and securely fastened while the valve remains in the closed position.

PREV：External Thread Ball Valve with Connecting Pipe NEXT：No next article

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body
Blow-out Proof Stem
Full port design
Lockable handle available as an option
Working pressure: 1.6~2.5MPa
Applicable temperature:
-20°C~120°C(250°C)
Applicable Medium: Water, oil, gas, Etc

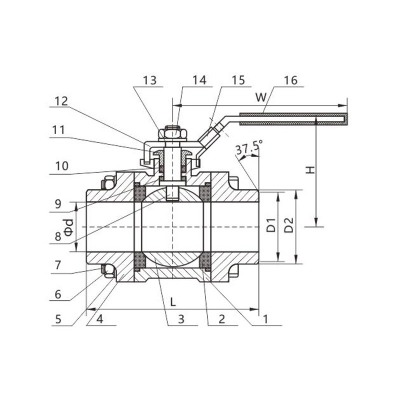

Main parts and materials

ITEM	PART	MAIN MATERIAL

1	Body	WCB CF8 CF8M CF3M

2	Valve Seat	PTFE RPTFE

3	Ball	201 304 316 316L


4	Bonnet	WCB CF8 CF8M CF3M

5	Spring Washer	201 304


6	Nut	201 304

7	Bolt	A2-70

8	Stem	201 304 316 316L
9	Thrust Washer	PTFE RPTFE
10	Stem Packing	PTFE RPTFE

11	Gland Nut	201 304


12	Handle	201 304
13	Spring Washer	201 304
14	Nut	201 304


15	Locking Device (Optional)	201 304

16	Handle Cover	Plastic

Main dimensions

SIZE		Φd	L		H	W
1/4"	DN6	10.5	65		52	95
3/8"	DN10	12	65		52	95
1/2"	DN15	15	72		55	100
3/4"	DN20	20	80		63	115
1"	DN25	25	90		75	125
1-1/4"	DN32	32	103		81	145
1-1/2"	DN40	38	112		95	160
2"	DN50	49	138		110	175
2-1/2"	DN65	65	178		131	220
3"	DN80	78	205		140	240
4"	DN100	98	252	264	170	315

The dimensions above are for reference only.
