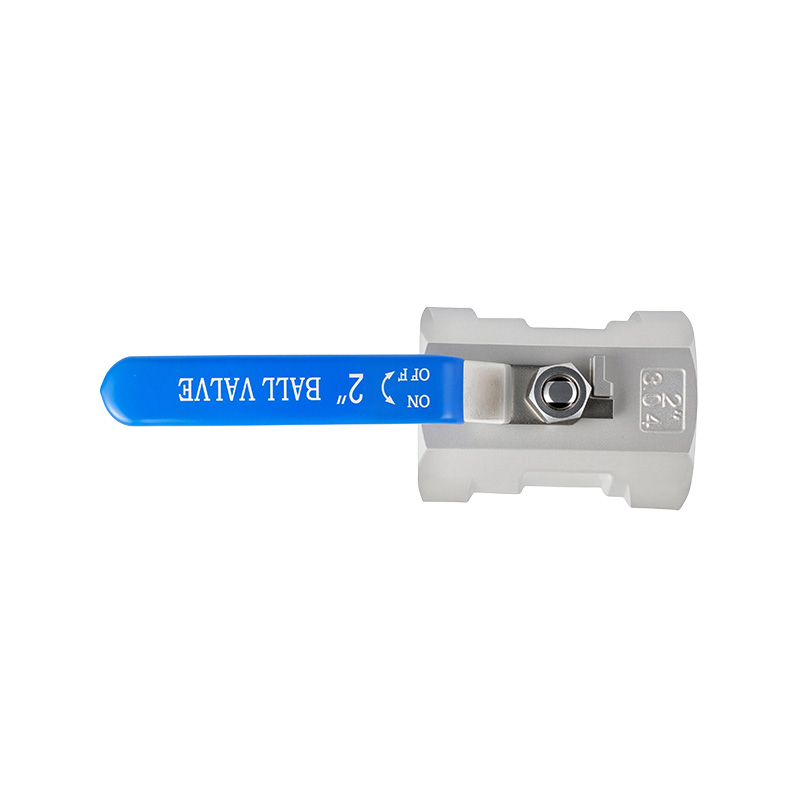

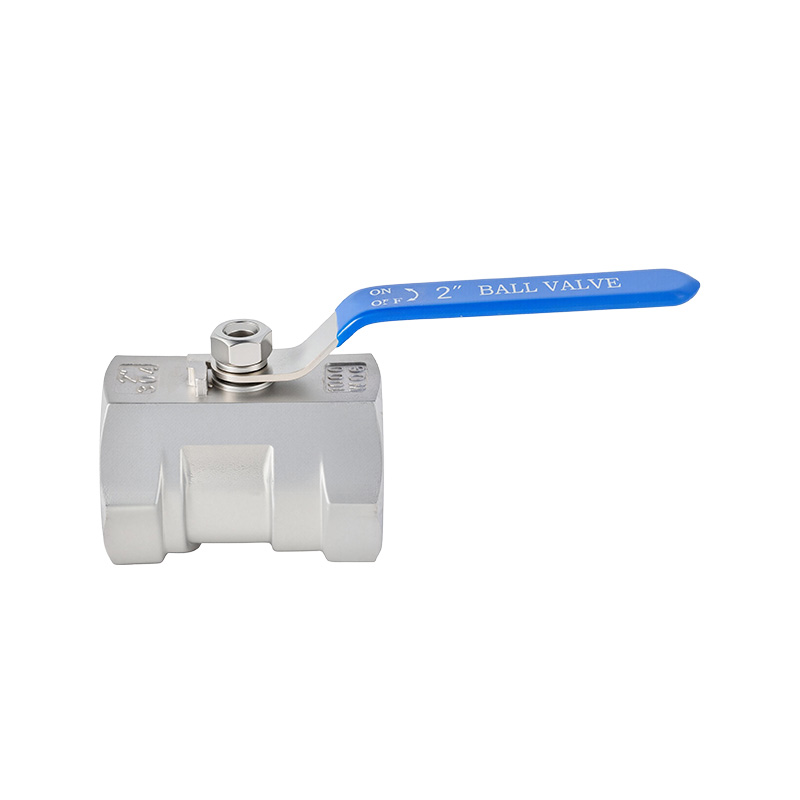

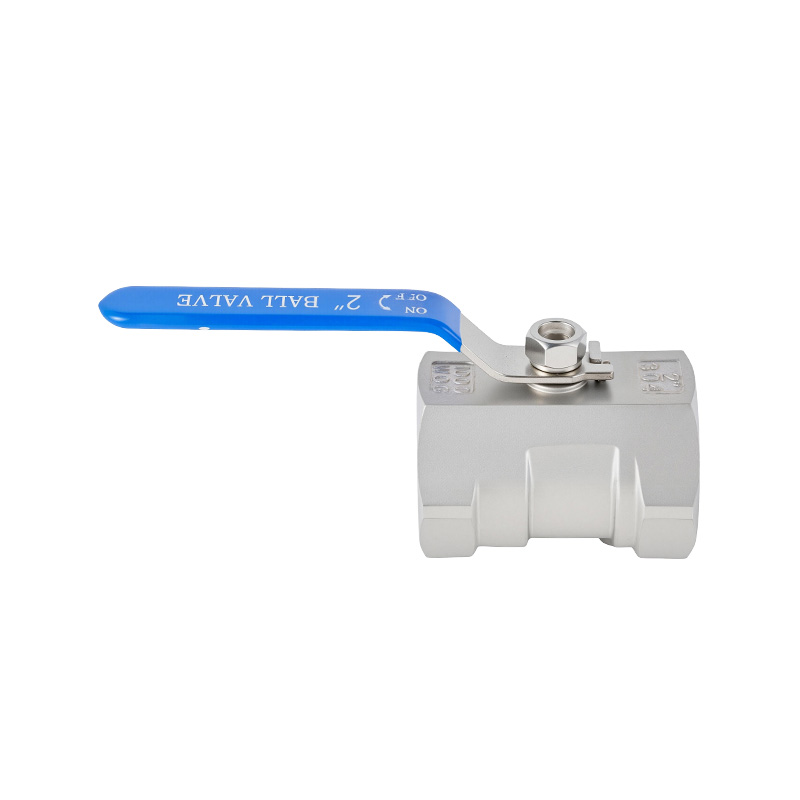

One Piece Manual Female Threaded Ball Valve

The one-piece manual internal thread ball valve features a reduced bore design and an integrated valve body structure, delivering a compact size, easy installation, and cost-effective performance. With a working pressure of 1.6 MPa and an operating temperature range of -20℃ to 120℃ (up to 250℃ for specific conditions), this ball valve is ideal for controlling flow in water, oil, gas, and other general media applications.

PREV：2PC Manual Internal Threaded Ball Valve NEXT：No next article

Specification
About Zhongchi
Contact Us

Design Features:
Investment Casting Body
Blow-out Proof Stem
Thread standard:
NPT, BSP, BSPT, DIN259/2999, Rc, Rp
Working pressure:1.6Mpa
Applicable temperature:
-20°C~120°C(250°C)
Applicable Medium: Water, oil, gas, Etc.

Design Temperature: -20 to 120℃ (250℃ optional)
Design Pressure: 1.6 MPa

Main parts and materials

ITEM	PART	MAIN MATERIAL

1	Body	CF8 CF8M CF3M

2	End Cap	304 316 316L

3	Ball	304 316 316L

4	Valve Seat	PTFE RPTFE
5	Stem	304 316 316L
6	Thrust Washer	PTFE RPTFE
7	Stem Packing	PTFE RPTFE
8	Gasket	304

9	Spring Washer	304

10	Nut	304

11	Handle	201 304

12	Handle Cover	Plastic
13	Locking Device (Optional)	201 304

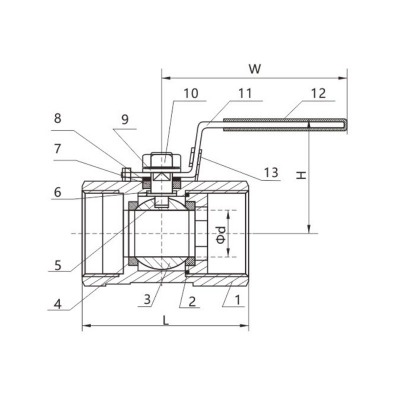

Main dimensions

SIZE		Φd	L	H	W
1/4"	DN6	5	40	28	72
3/8"	DN10	7	44	30	80
1/2"	DN15	9	54	35	95
3/4"	DN20	12	57	45	98
1"	DN25	15	67	50	110
1-1/4"	DN32	20	75	55	130
1-1/2"	DN40	25	81	60	142
2"	DN50	32	94	68	146
2-1/2"	DN65	38	110	92	180
3"	DN80	49	132	115	220
4"	DN100	65	184	134	230

The dimensions above are for reference only.
