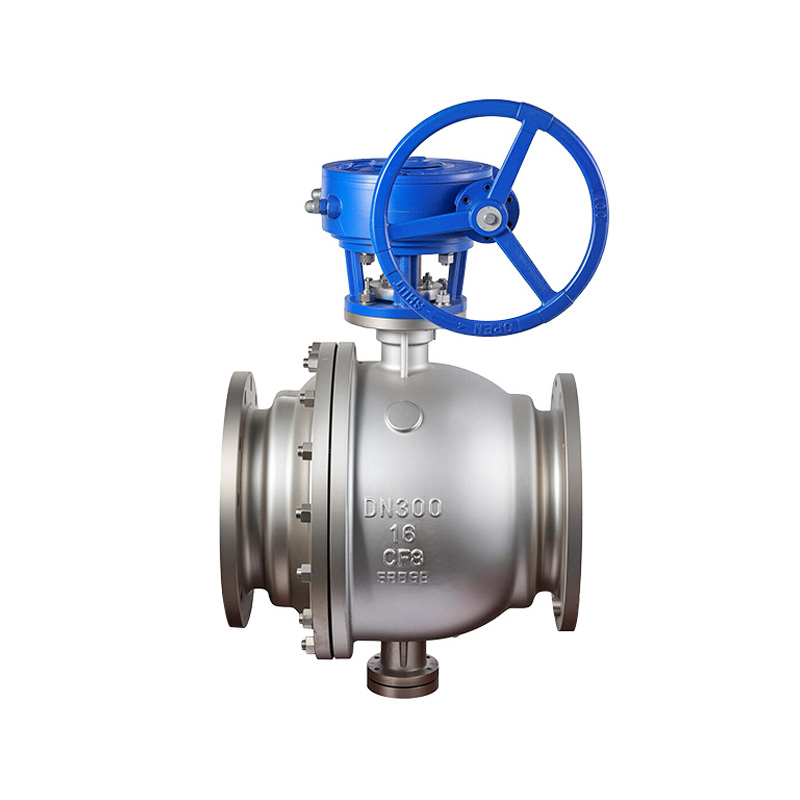

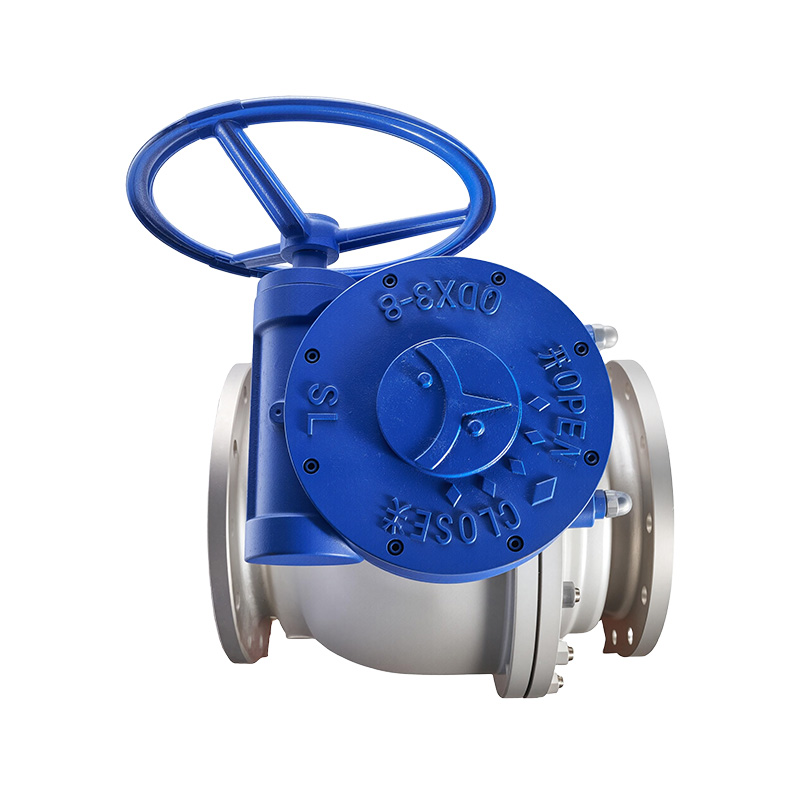

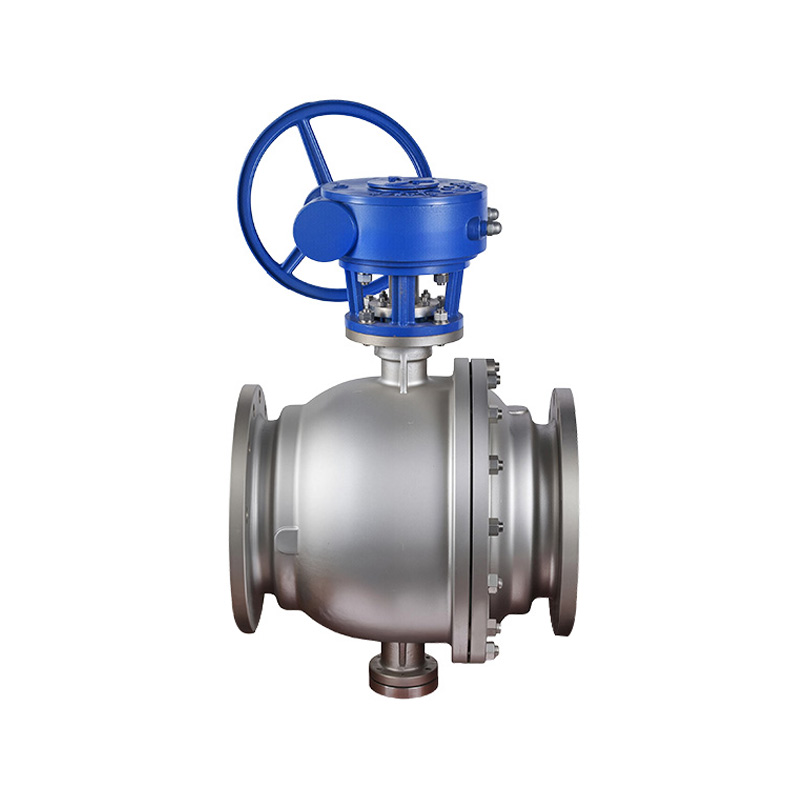

Soft Sealed Trunnion Flange Ball Valve

Unlike the design of floating ball valves—in which the ball lacks a fixed axis—the core advantage of the soft-seated trunnion-mounted ball valve lies in its **fixed-ball structure**. In this configuration, the ball is secured within the valve body by means of upper and lower trunnions; during operation, the ball remains stationary relative to the valve body, rotating solely around its fixed axis. This design significantly enhances both the operational precision and stability of the valve. Furthermore, this structural approach effectively resolves issues—such as ball displacement and uneven wear of sealing surfaces—that may arise in floating ball valves under high-pressure or large-bore operating conditions.

PREV：American Standard Flanged Ball Valve NEXT：Hard Sealed Floating Flange Ball Valve

Specification
About Zhongchi
Contact Us

Design Features:
Flanged ends:
JB/T 79-2015, GB/T 9124.1-2019
Test & inspection:
GB/T 26480-2011, GB/T 13927-2022
JB/T 9092-1999
Applicable medium:
Water, oil, gas, Ect

Main parts and materials

ITEM

PART

MAIN MATERIAL

Body

CF8 CF8M CF3M WCB

Bonnet

CF8 CF8M CF3M WCB

Ball

304 316 316L

Stem

F304 F316 F316L 2Cr13

Valve Seat

PTEE RPTFE

Bolt

B8 B7

Nut

A194-82H

Packing

PTFE Flexible Graphite

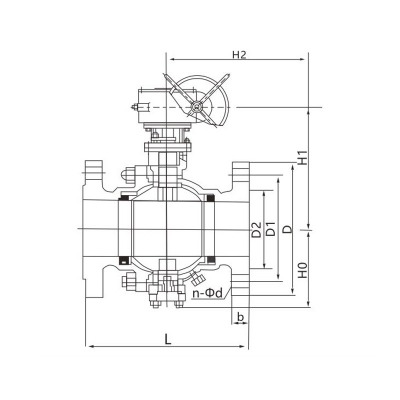

Main dimensions(PN16) GB/T 9124.1-2019

SIZE	L	D	D1	D2	b	n-Φd
150	394	285	240	212	22	8-Φ22
200	457	340	295	268	24	12-Φ22
250	533	405	355	320	26	12-Φ26
300	610	460	410	378	28	12-Φ26
350	686	520	470	438	30	16-Φ26
400	762	580	525	490	32	16-Φ30
450	864	640	585	550	40	20-Φ30
500	914	715	650	610	44	20-Φ33
600	1067	840	770	725	54	20-Φ36

The dimensions above are for reference only.
