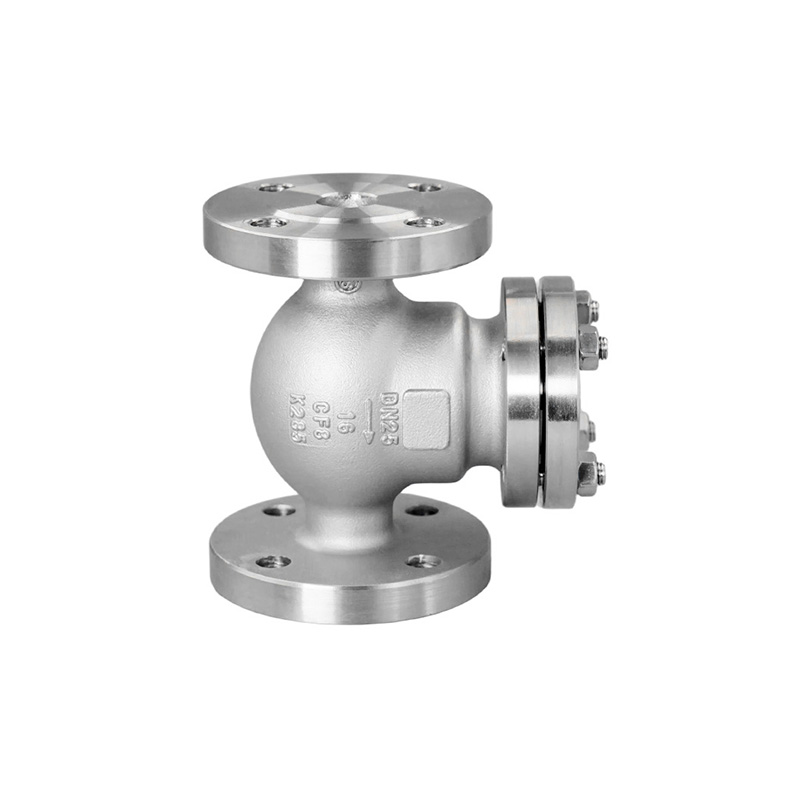

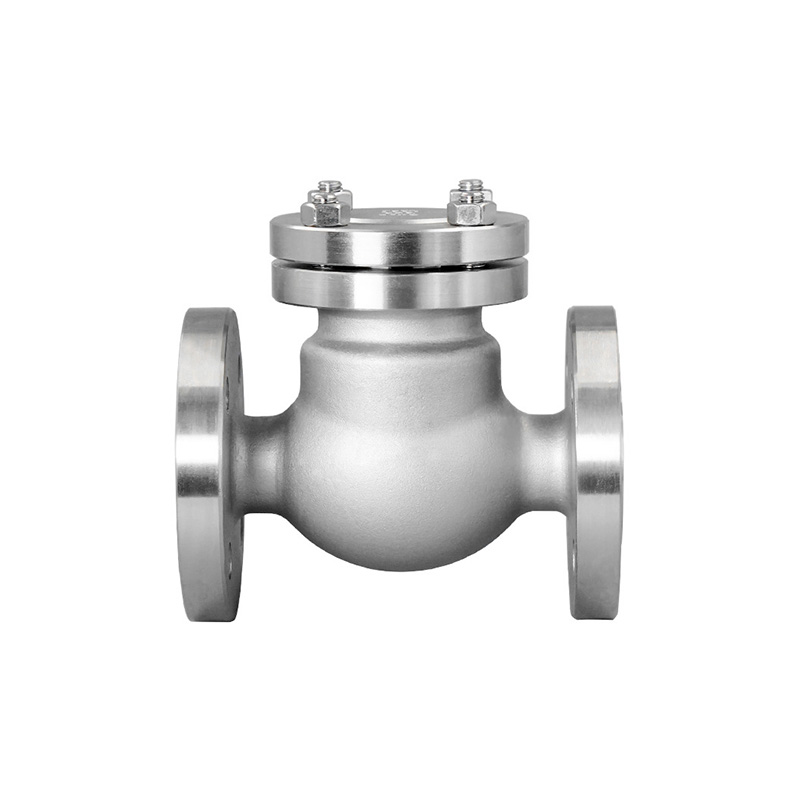

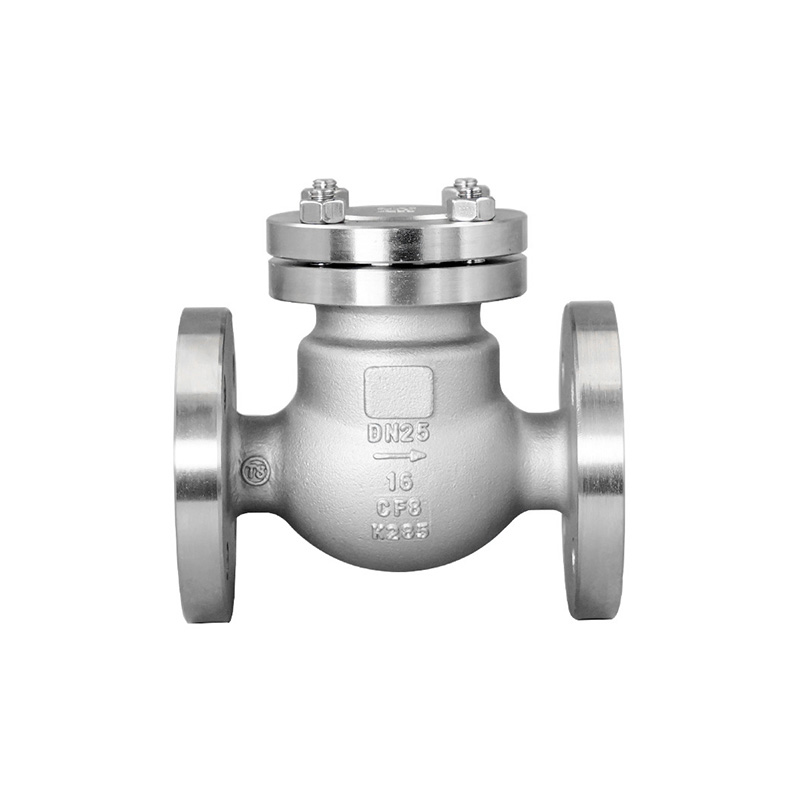

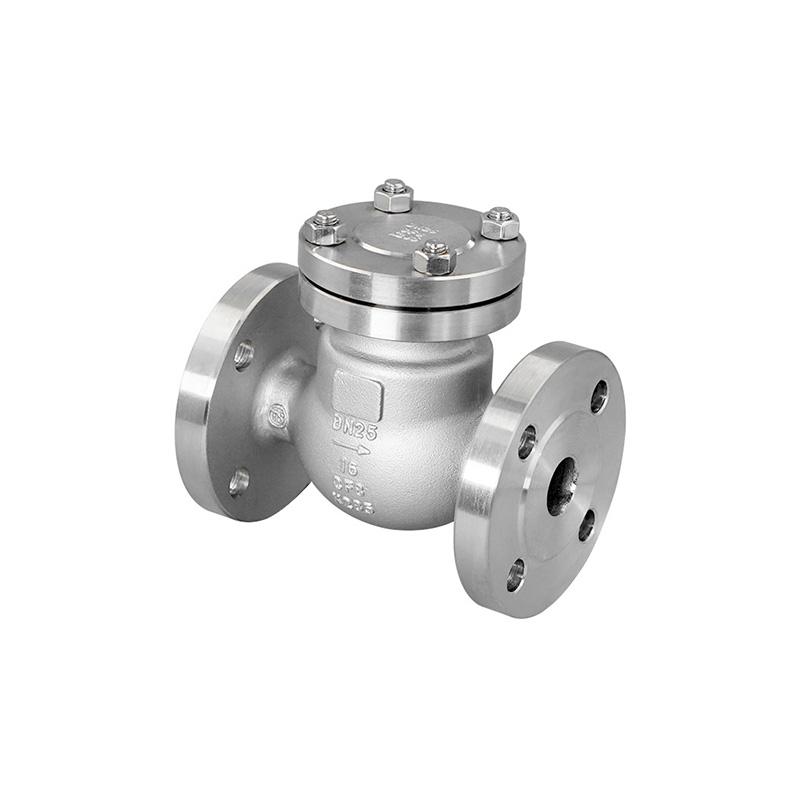

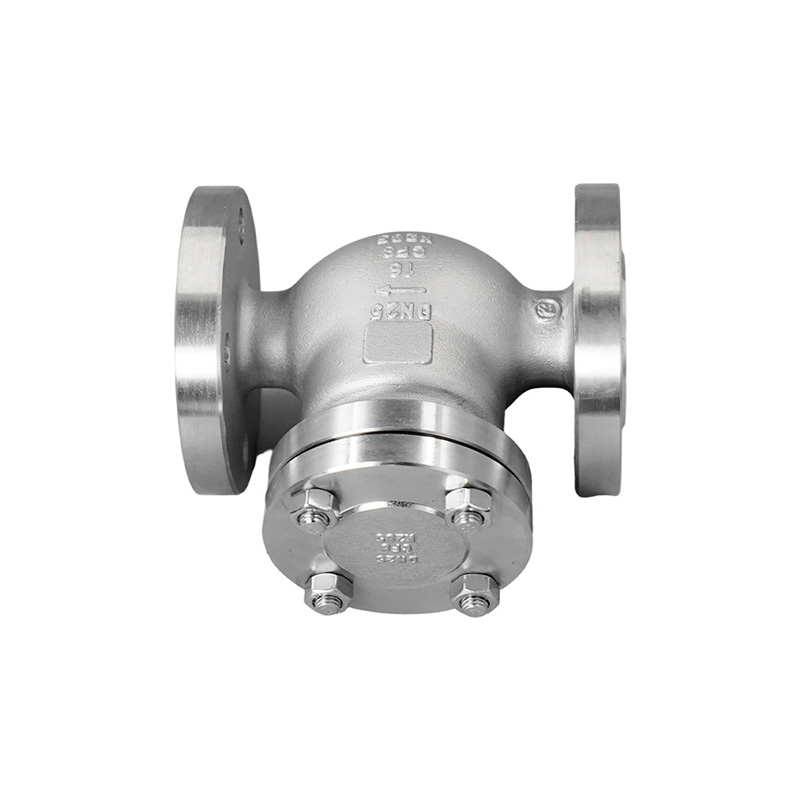

Flanged Swing Check Valve

The flanged swing check valve is the most commonly used one-way valve for large-diameter, medium-to-low pressure pipelines. It opens and closes automatically in response to the pressure of the medium, permitting flow in only one direction and preventing backflow. Operating Principle: Forward Flow—The pressure of the medium pushes open the disc-shaped valve flap; the flap pivots around a pin shaft to open, allowing for unobstructed flow. Reverse Flow—The combined force of the medium's pressure and the weight of the valve flap causes the flap to swing back onto the valve seat, creating a tight seal and preventing backflow.

PREV：American Standard Flanged Swing Check Valve NEXT：No next article

Specification
About Zhongchi
Contact Us

Design Features:
Flanged ends:
JB/T 79-2015, GB/T 9124.1-2019
Test & inspection:
GB/T 26480-2011, GB/T 13927-2022
JB/T 9092-1999

Main parts and materials

ITEM

PART

MAIN MATERIAL

Body

CF8 CF3 CF8M CF3M WCB

Bonnet

CF8 CF3 CF8M CF3M WCB

Disc

CF8 CF3 CF8M CF3M WCB

Gasket

PTFE Spiral Wound Gasket

Bolt

B8 B7

Nut

A194-82H

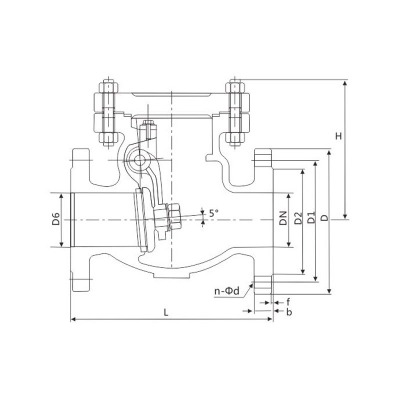

Main dimensions(PN16) GB/T 9124.1-2019

DN	L		D	D1	D2	b-f	n-Φd
15	130		95	65	45	16-2	4-Φ14
20	150		105	75	58	18-2	4-Φ14
25	160		115	85	68	18-2	4-Φ14
32	180		140	100	78	18-2	4-Φ18
40	200		150	110	88	18-3	4-Φ18
50	230		165	125	102	18-3	4-Φ18
65	290		185	145	122	18-3	8-Φ18
80	310		200	160	138	20-3	8-Φ18
100	350		220	180	158	20-3	8-Φ18
125	400		250	210	188	22-3	8-Φ18
150	480		285	240	212	22-3	8-Φ22
200	550	600	340	295	268	24-3	12-Φ22
250	650	730	405	355	320	26-3	12-Φ26
300	750	850	460	410	378	28-4	12-Φ26
350	850	980	520	470	438	30-4	16-Φ26
400	950	1100	580	525	490	32-4	16-Φ30
450	1050		640	585	550	40-4	20-Φ30
500	1150		705	650	610	44-4	20-Φ33
600	1350		840	770	725	54-5	20-Φ36

The dimensions above are for reference only.
