D373 Wafer Type Butterfly Valve

Home / Products / Butterfly Valve / D373 Wafer Type Butterfly Valve
  • D373 Wafer Type Butterfly Valve
  • D373 Wafer Type Butterfly Valve
  • D373 Wafer Type Butterfly Valve
  • D373 Wafer Type Butterfly Valve
  • D373 Wafer Type Butterfly Valve
  • D373 Wafer Type Butterfly Valve

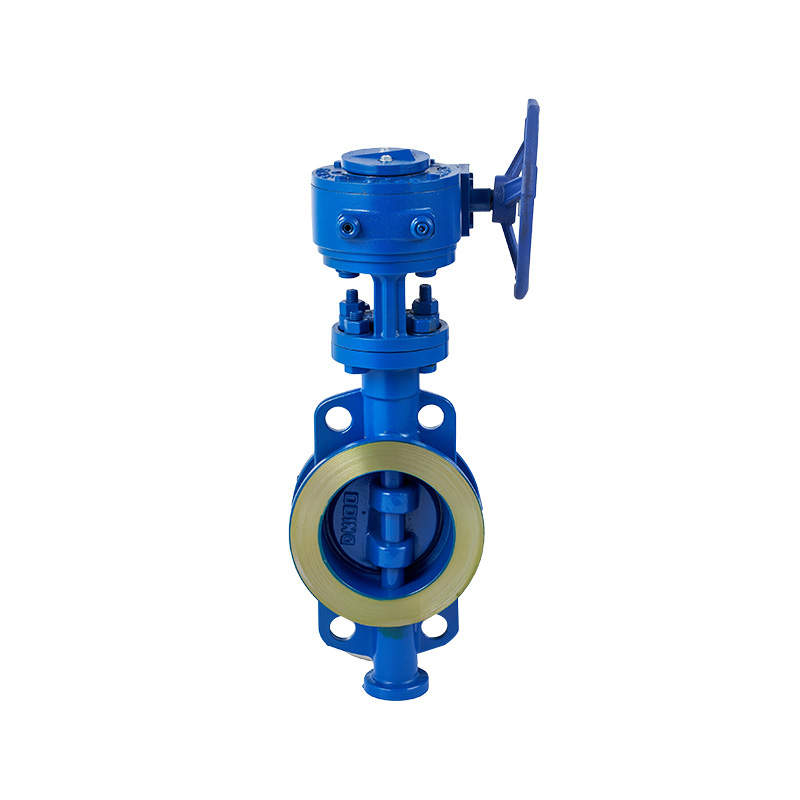

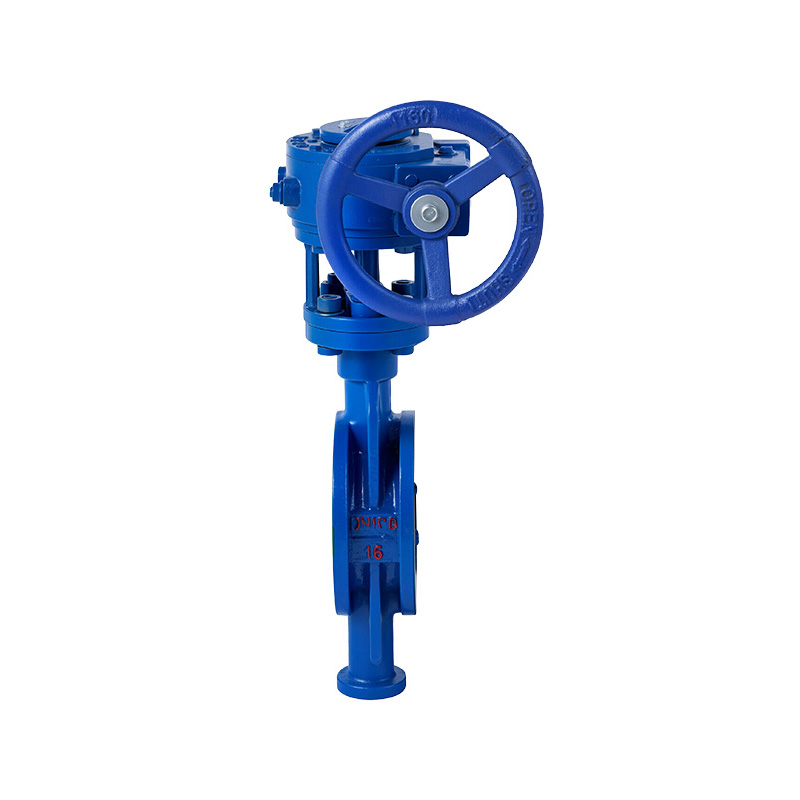

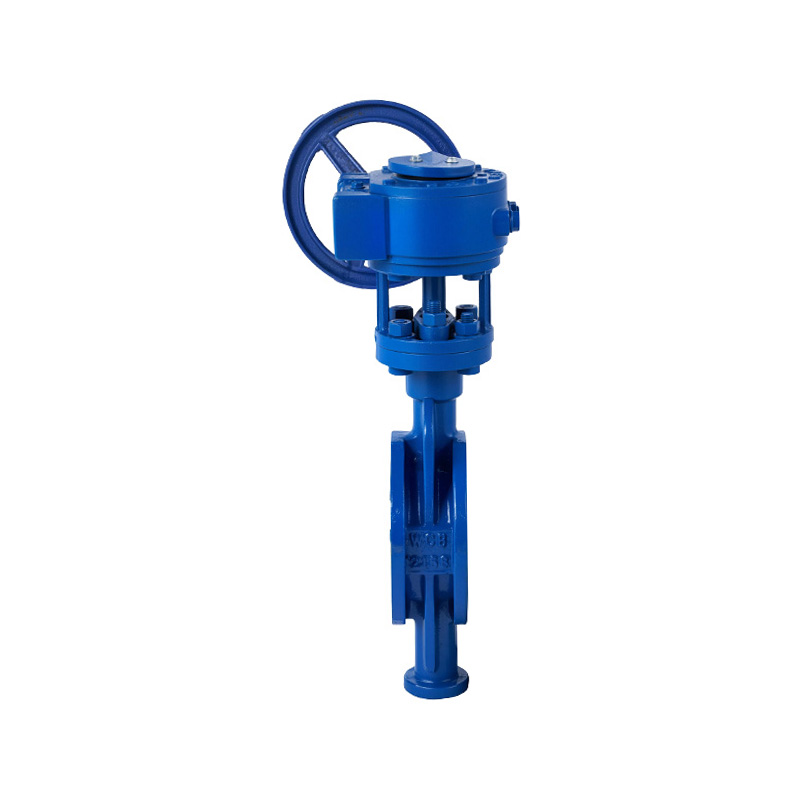

D373 Wafer Type Butterfly Valve

D373 Wafer Type Butterfly Valve is a compact butterfly valve designed for pipeline flow shut-off and control. Compared with flanged butterfly valves, its wafer-type installation occupies less space and can help reduce installation costs, making it suitable for pipeline systems where equipment layout and installation efficiency are important. The wafer connection also provides a practical solution for integration between pipeline flanges.

The compact structure makes the D373 wafer butterfly valve suitable for applications with limited installation space and cost-sensitive pipeline projects. Its design is intended for reliable flow control while simplifying the installation arrangement compared with flanged valve configurations. Test and inspection can be carried out according to GB/T 13927-2022 and JB/T 9092-1999.

D373 Wafer Type Butterfly Valve is suitable for industrial water systems, process pipelines, equipment connections, and other applications requiring compact flow shut-off and control. OEM and ODM services can support customization of valve size, body materials, sealing materials, connection dimensions, pressure ratings, and operating configurations according to project requirements.

Contact Us
PREV：Soft-seal Wafer Butterfly ValveNEXT：D343 Flanged Butterfly Valve
  • Specification
  • Purchasing Information
  • Contact Us
Design Features:
Test & inspection:
GB/T 13927-2022 JB/T9092-1999



Main parts and materials

ITEM PART MAIN MATERIAL
1  Under cover F304 F304L F316 F316L WCB
2  Body CF8 CF3 CF8M CF3M WCB
3  Stem F304 F316L 2CR13
4  Disc CF8 CF3 CF8M CF3M WCB
5  Seat NBR/PTFE/SS+SS+Flexible Graphite
6  Packing Flexible Graphite
7  Gland Packing CF8 CF3 CF8M CF3M WCB
8  Ycke WCB
9  Stud B8 B7

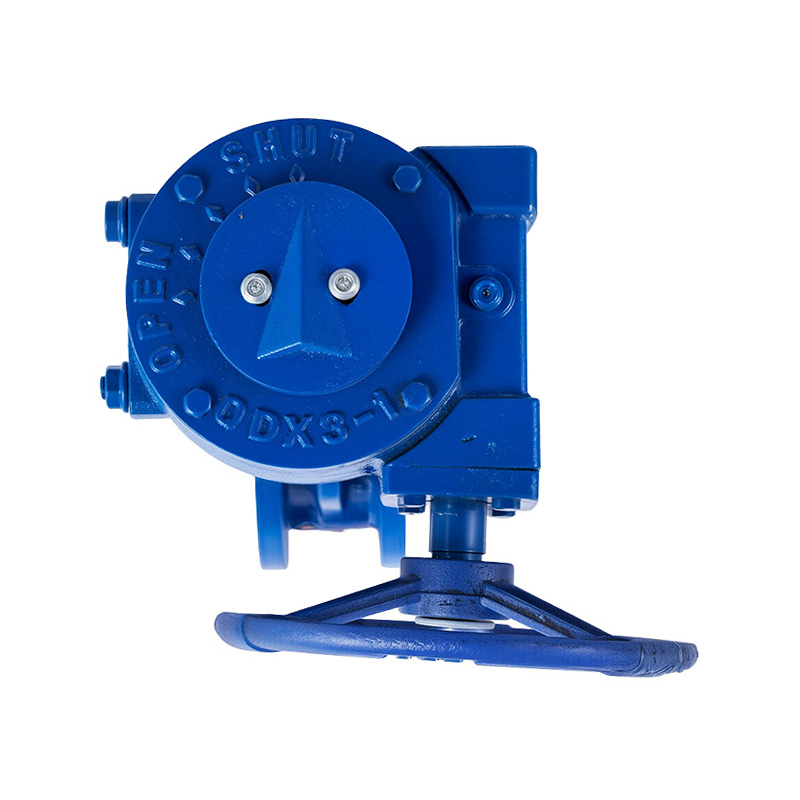

10  Worm Gear nodular Cast Iron

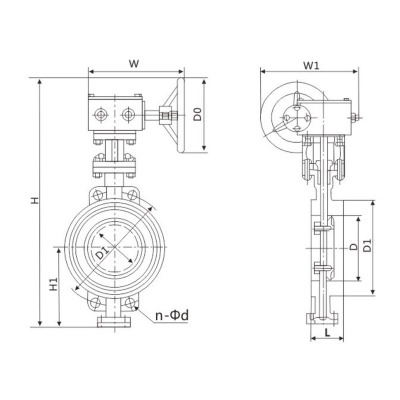

Main dimensions(PN16)

DN L D D1 D2 n-Φd
50  43  102  125  102  4-Φ18
65  46  122  145  122  8-Φ18
80  49  135  160  138  8-Φ18
100  56  158  180  158  8-Φ18
125  64  185  210  188  8-Φ18
150  70  210  240  212  8-Φ22
200  71  265  295  268  12-Φ22
250  76  320  355  320  12-Φ26
300  83  370  410  378  12-Φ26
350  92  430  470  438  16-Φ26
400  102  482  525  490  16-Φ30
450  114  532  585  550  20-Φ30
500  127  585  650  610  20-Φ33
600  154  685  770  725  20-Φ36
700  165  800  840  795  24-Φ36
800  190  905  950  900  24-Φ39
900  203  1005  1050  1000  28-Φ39
1000  216  1110  1170  1115  28-Φ42

 The dimensions above are for reference only.


Design Features:
Test & inspection:
GB/T 13927-2022 JB/T9092-1999



Main parts and materials

ITEM PART MAIN MATERIAL
1  Under cover F304 F304L F316 F316L WCB
2  Body CF8 CF3 CF8M CF3M WCB
3  Stem F304 F316L 2CR13
4  Disc CF8 CF3 CF8M CF3M WCB
5  Seat NBR/PTFE/SS+SS+Flexible Graphite
6  Packing Flexible Graphite
7  Gland Packing CF8 CF3 CF8M CF3M WCB
8  Ycke WCB
9  Stud B8 B7
10  Worm Gear nodular Cast Iron

Main dimensions(PN16)

DN L D D1 D2 n-Φd
50  43  102  125  102  4-Φ18
65  46  122  145  122  8-Φ18
80  49  135  160  138  8-Φ18
100  56  158  180  158  8-Φ18
125  64  185  210  188  8-Φ18
150  70  210  240  212  8-Φ22
200  71  265  295  268  12-Φ22
250  76  320  355  320  12-Φ26
300  83  370  410  378  12-Φ26
350  92  430  470  438  16-Φ26
400  102  482  525  490  16-Φ30
450  114  532  585  550  20-Φ30
500  127  585  650  610  20-Φ33
600  154  685  770  725  20-Φ36
700  165  800  840  795  24-Φ36
800  190  905  950  900  24-Φ39
900  203  1005  1050  1000  28-Φ39
1000  216  1110  1170  1115  28-Φ42

 The dimensions above are for reference only.
