Design Features
◆Design Acc: ASME B16.34
◆Flange Acc: ASME B16.5
◆Face to Face Acc: ASME B16.10
◆Inspection&Testing Acc: API 598

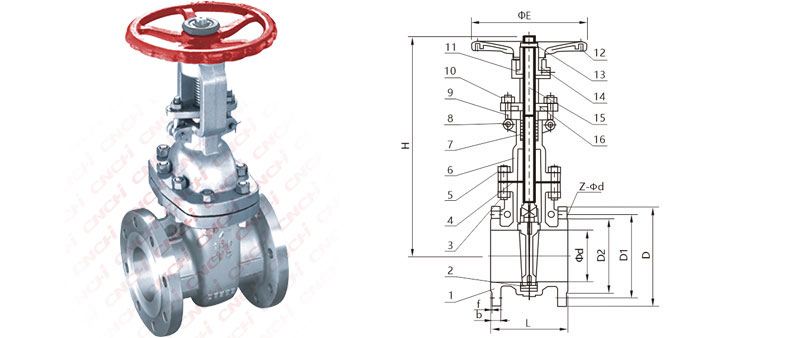

Main parts and materials
ITEM PART MAIN MATERIAL 1 Body CF8M CF8 WCB 2 Disc CF8M CF8 WCB+D507 3 Nut A194-8 4 Sealing ring 304+Graphite 5 Bolt A194-8 6 Bonnet CF8M CF8 WCB 7 Stem Packing PTFE RPTFE 8 Hanging Pin 304 9 Eye Bolt 304 10 Nut A193-B8 11 Sleeve Brass 12 Handwheel KTH330-08 QT400-17 13 Stem Nut 304 14 Gland 304 15 Stem 316 304 F6A 16 Gland 304 Main dimensions(Class150Lb) (mm)
SIZE Фd L D2 D1 D Z-Фd 1/2" 15 108 35 60.5 89 4-16 3/4" 20 117 43 70 98 4-16 1 25 127 51 79.5 108 4-16 1-1/4" 32 140 63 89 118 4-16 1-1/2" 40 165 73 98.5 127 4-16 2" 50 178 92 120.5 152 4-19 2-1/2" 65 190 105 139.5 178 4-19 3" 80 203 127 152.5 190 4-19 4" 100 229 157 190.5 229 8-19 5" 125 254 186 216 254 8-23 6" 150 267 216 241.5 279 8-23 8" 200 292 270 298.5 343 8-23 10" 250 330 324 362 406 12-25 12" 300 356 381 432 483 12-25
