Flanged Ball Valve

  • 16.jpg


    Design Features

    ◆Design standard: GB/T 12237,API608,JPI 7S-48

    ◆Flanged ends:GB/T 9113,JB/T 79,HG 20596,ANSI B16.5,JIS B2212-B2214

    ◆Test & inspection:JB/T9092,GB/T 13927,API598

    ◆Applicable medium:Water,oil,gas Ect

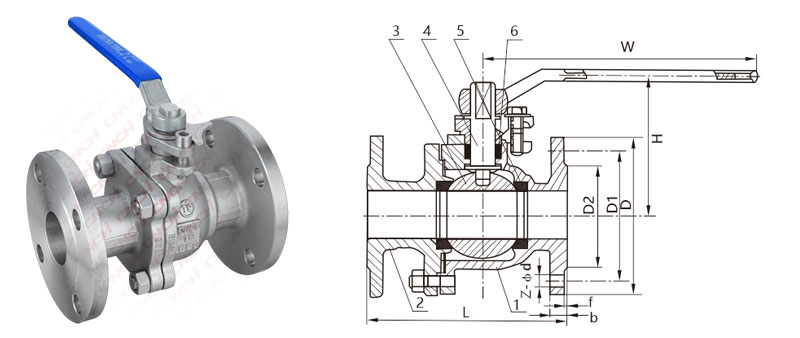

    Main parts and materials

    ITEMMAIN MATERIALMAIN MATERIAL
    1BodyWCB CF8 CF8M
    2BonnetWCB CF8 CF8M
    3Ball304 316
    4Stem304 316
    5Valve SeatPTFE RPTFE
    6PackingPTFE RPTFE



    Main dimensions (1.6MPa) (mm)

    SIZELDD1D2Z-Фd
    1/2〃DN151309565454-14
    3/4〃DN2014010575554-14
    1"DN2515011585654-14
    1-1/4〃DN32165135100784-18
    1-1/2"DN40180145110854-18
    2"DN502001601251004-18
    2-1/2"DN652201801451204-18
    3"DN802501951601358-18
    4"DN1002802151801558-18
    5"DN1253202452101858-18
    6"DN1503602802402108-23
    8"DN20040033529526512-23


    Main dimensions(mm)

    SIZE150LB10K
    LDD1D2Z-ΦdLDD1D2Z-Фd
    1/2"DN151088960.5354-161089570514-15
    3/4"DN201179870434-1611710075564-15
    1"DN2512710879.5514-1612712590674-19
    1-1/4"DN321401188963.54-16140135100764-19
    1-1/2"DN4016512798.5734-16165140105814-19
    2"DN50178152120.5924-19178155120964-19
    2-1/2"DN65190178139.51054-191901751401164-19
    3"DN80203190152.51274-192031851501268-19
    4"DN100229229190.51578-192292101751518-19
    5"DN1253562542161868-233562502101828-23
    6"DN150394279241.52168-233942802402128-23
    8"DN200457343298.52708-2345733029026212-23

    Notes:The sizes of serial valve connecting flange can be designed according to customers' requirement.
