Design Features
◆Investment Casting Body
◆Hand Wheel-operated
◆Locking Device Handle Available
◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp
◆Working pressure:200PSI
◆Applicable temperature:-29°C~150°C(300°C)
◆Applicable Medium:Water,oil,gas Etc
Main parts and materials

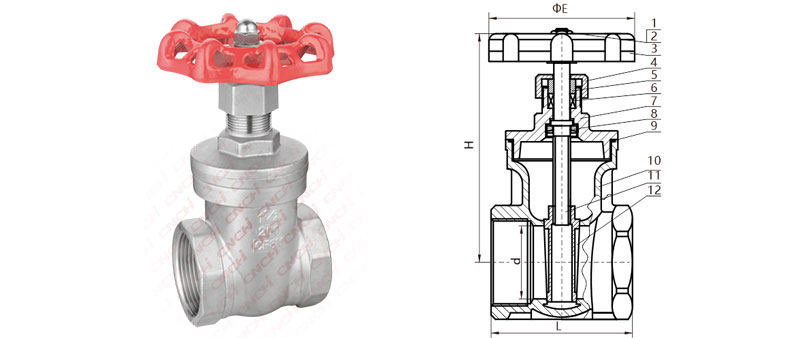

ITEM PART MAIN MATERIAL 1 Nut 304 2 Gasket 304 3 Handwheel WCB KTL330-08 4 Tightening Bonnet 304 316 5 Gland 304 316 6 Stem Packing PTFE RPTFE 7 Bonnet CF8 CF8M 8 Gland 304 316 9 Sealing ring PTFE RPTFE 10 Body CF8 CF8M 11 Stem 304 316 12 Disc 304 316 Main dimensions (mm)
SIZE d L H ФE 1/2" DN15 15 54 96 65 3/4" DN20 20 58 104 65 1" DN25 25 65 115 72 1-1/4" DN32 32 73 125 79 1-1/2" DN40 38 77 147 95 2" DN50 50 90 165 108 2-1/2" DN65 65 110 207 127
