Design Features
◆Design standard: GB/T 12237,API608,JPI 7S-48
◆Flanged ends：GB/T 9113,JB/T 79,HG 20596,ANSI B16.5,JIS B2212-B2214
◆Test & inspection：JB/T9092,GB/T 13927,API598
◆Applicable medium:Water,oil,gas Ect

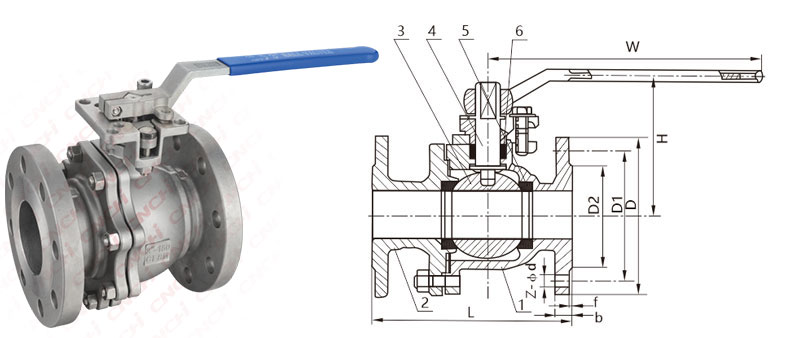

Main parts and materials
ITEM MAIN MATERIAL MAIN MATERIAL 1 Body WCB CF8 CF8M 2 Bonnet WCB CF8 CF8M 3 Ball 304 316 4 Stem 304 316 5 Valve Seat PTFE RPTFE 6 Packing PTFE RPTFE Main dimensions (1.6MPa) (mm)
SIZE L D D1 D2 Z-Фd 1/2〃 DN15 130 95 65 45 4-14 3/4〃 DN20 140 105 75 55 4-14 1" DN25 150 115 85 65 4-14 1-1/4〃 DN32 165 135 100 78 4-18 1-1/2" DN40 180 145 110 85 4-18 2" DN50 200 160 125 100 4-18 2-1/2" DN65 220 180 145 120 4-18 3" DN80 250 195 160 135 8-18 4" DN100 280 215 180 155 8-18 5" DN125 320 245 210 185 8-18 6" DN150 360 280 240 210 8-23 8" DN200 400 335 295 265 12-23 Main dimensions(mm)
SIZE 150LB 10K L D D1 D2 Z-Φd L D D1 D2 Z-Фd 1/2" DN15 108 89 60.5 35 4-16 108 95 70 51 4-15 3/4" DN20 117 98 70 43 4-16 117 100 75 56 4-15 1" DN25 127 108 79.5 51 4-16 127 125 90 67 4-19 1-1/4" DN32 140 118 89 63.5 4-16 140 135 100 76 4-19 1-1/2" DN40 165 127 98.5 73 4-16 165 140 105 81 4-19 2" DN50 178 152 120.5 92 4-19 178 155 120 96 4-19 2-1/2" DN65 190 178 139.5 105 4-19 190 175 140 116 4-19 3" DN80 203 190 152.5 127 4-19 203 185 150 126 8-19 4" DN100 229 229 190.5 157 8-19 229 210 175 151 8-19 5" DN125 356 254 216 186 8-23 356 250 210 182 8-23 6" DN150 394 279 241.5 216 8-23 394 280 240 212 8-23 8" DN200 457 343 298.5 270 8-23 457 330 290 262 12-23 Notes:The sizes of serial valve connecting flange can be designed according to customers' requirement.
