Forged Steel Flanged Ball Valve

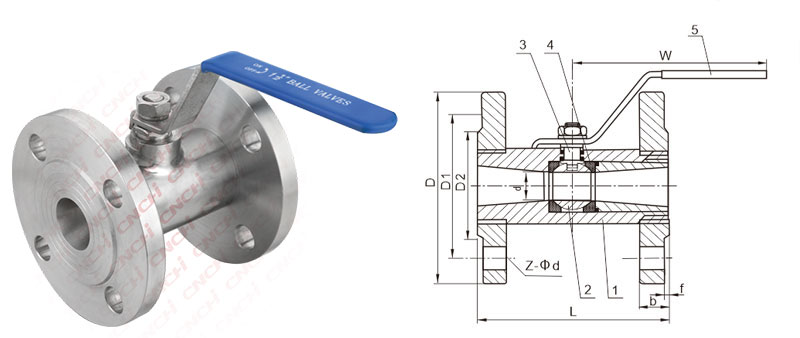

  • 18.jpg


    Design Features

    ◆Design standard: GB/T 12237,API608,JPI 7S-48

    ◆Flanged ends:GB/T 9113,JB/T 79,HG 20596,ANSI B16.5,JIS B2212-B2214

    ◆Test & inspection:JB/T9092,GB/T 13927,API598

    ◆Applicable medium:Water,oil,gas Ect


    Main parts and materials

    ITEMPARTMAIN MATERIAL
    1BodyA105 304 316
    2Ball304 316
    3Stem304 316
    4Valve seatPTFE RPTFE
    5Handle201 304

    Main dimensions(1.6MPa) (mm)

    SIZEdDD1D2LWZ-Фd
    1/2"DN1510.5956545901104-14
    3/4"DN201310575551051104-14
    1"DN251711585651101104-14
    1-1/4"DN3222135100781251504-18
    1-1/2"DN4025145110851361504-18
    2”DN50321601251001551804-18
    2-1/2〃DN65401801451201701804-18
    3"DN80501951601351902308-18
    4"DN100652151801552102308-18

    Notes:The sizes of serial valve connecting flange can be designed according to customers' requirement.
