One Piece Ball Valve

  • 6363961522039114312164326.jpg


    Design Features

    ◆Investment Casting Body

    ◆Blow-out Proof Stem

    ◆Thread standard:NPT,BSP,BSPT,DIN259/2999,Rc,Rp

    ◆Working pressure:1.6~6.4Mpa

    ◆Applicable temperature:-29°C~150°C(300°C)

    ◆Applicable Medium:Water,oil,gas Etc

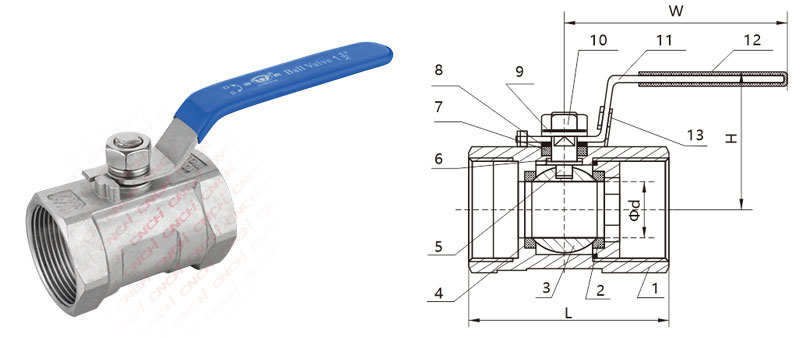

    Main parts and materials

    ITEMPARTMAIN MATERIAL
    1BodyWCB CF8 CF8M CF3M
    2Ball304 316 316L
    3End Cap304 316 316L
    4Valve Seat PTFE RPTFE
    5Stem304 316 316L
    6Thrust WasherPTFE RPTFE
    7Stem PackingPTFE RPTFE
    8Gasket304
    9Spring Washer304
    10Nut304
    11Handle201 304
    12Handle CoverPlastic
    13Locking Device201 304



    Main dimensions(mm)

    SIZEΦdLHW
    1/4"DN65402872
    3/8"DN107453080
    1/2"DN159563595
    3/4"DN2012584598
    1"DN25157050110
    1-1/4"DN32207855130
    1-1/2"DN40258560142
    2"DN503210068146
    2-1/2'DN653811092180
    3'DN8049135115220
    4'DN10065190134230
